Maagan Filtration products

The Sheaf Filter represents a technological breakthrough in the field of fiber filters. It combines excellent and enhanced performance in the fine filtration spectrum of 1-10 microns, minimal maintenance, absence of chemicals and an efficient back washing system utilizing less than 1% of the overall flow. Our advanced proprietary design with lenghtwise flow allows us to achieve the best combination of operational efficiency, energy reduction, and environmental impact minimization. The Sheaf Filter acknowledges the bond between global water scarcity and the ability to provide each client with a unique tailor made solution using well designed engineering and the uppermost attention and service. The Sheaf Filter runs at a competitive cost to conventional media and sand filters while performing finer filtration and averages 50% less expensive than other fiber filters.

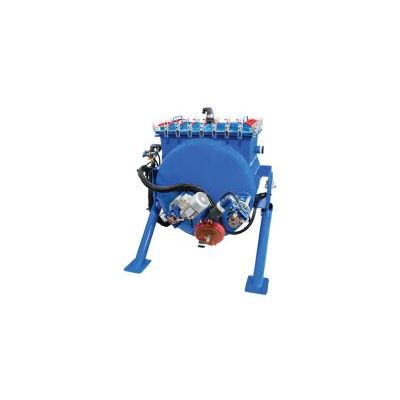

The Fiber Disc Filter presents a breakthrough design in the field of fiber filters. It combines excellent performance in the fine filtration spectrum of 3-10 microns, minimal maintenance, absence of chemicals and a systematic and efficient back washing system. Our advanced proprietary design, comprised of a trapeze wound by layers of thread and an assembly of trapezes into round discs, allows us to achieve the best combination of operational efficiency, energy reduction and minimal environmental impact.

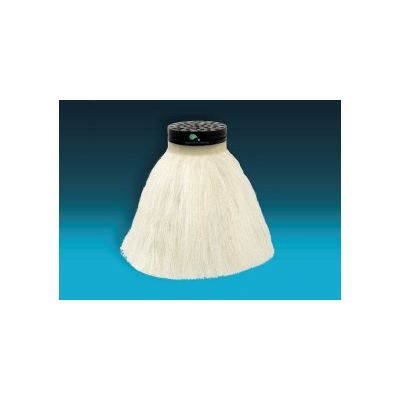

Our Sheaf Filter represents a new and innovative implementation of thread-filtration technology. Our groundbreaking technology is based on the flow of contaminated water lengthwise, along the threads, rather than crosswise, as in other fiber-based filters/cartridges/membranes. Our Sheaf Filter combines both major filtration methods: “physical filtration,” in which the filtration level is determined by the pore size, and “depth filtration,” in which suspended solids are intercepted and adhere to the media through which the water flows. This unique combination of filtration methods results in an un-paralleled filtration performance, as compared to other self cleaning filters.

Our Fiber Disc Filter presents a new and innovative implementation of thread-filtration technology. Our unique design is based on the flow of contaminated water through a series of threads wound around a trapeze shaped base. Groups of the trapeze bases combine to form a round disc. Desired filtration capacity is achieved by mounting a series of fiber discs on the central collecting pipe. The Fiber Disc Filter uses threads that are wound around a trapeze unit in variable layers and with a pre determined tension. Setting those parameters enables us to control the filtration process and to ensure the most effective back-wash. Therefore, we can adjust our filters and threads to various application requirements.
