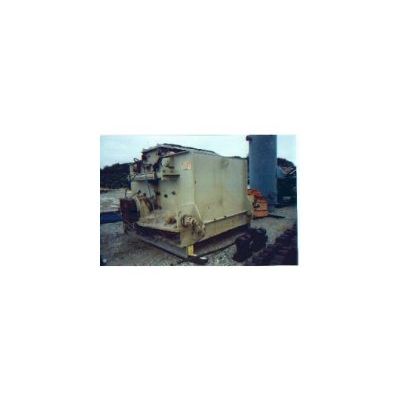

Williams Reversible Impact Crusher, 60" Dia X 80" Long Rotor, Swing Type Sledge Hammers. Williams Model Number K, Type 680. Previously Had 1000 Hp, 4000 V, 712 Rpm, 3 Phase, 60 Cycle A/C Motor. Feed Opening 27" X 80", Rated At 1000 Tons Per Hour On Limestone, Last Used As Secondary Crusher. Unit Is Equipped With Hydraulic Opening Mechanism To Split Chamber And Change Out Parts. Unused Hammers Also Available. Serial Number 15257.

Pulse type dust collector, Baumco 6 compartment, rated 33,756 sq.ft. of bag area, 105,000 CFM at 3.11:1 air to cloth ratio. Complete with 600 HP exhaust blower. (1536) 6` diameter x 14` long hi-temp (350 F.) fiberglass bags. Bottom discharge by rotary valves into screw conveyors. Includes top bag removal features, structural steel, stairs, roof, 1987.

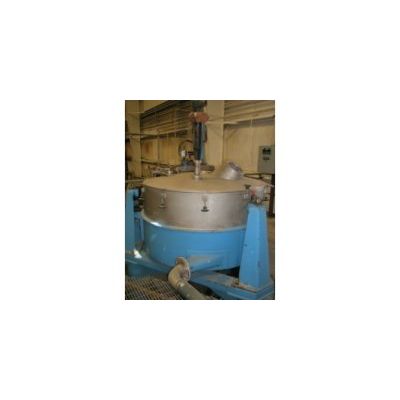

(2) Perforate Basket Centrifuge, 1250mm (49") Diameter X 20" Deep, Manufactured By Toniatti, 304 Stainless Steel Contacts, Model # 204, Type # Rea, Rated At 820 Rpm, 300 Kg. Driven By 15 Kw (20 Hp) Motor. Set Up For Top Load And Bottom Unload, 4" Dia. Liquid Discharge, Includes S/St Scraper Blade/Plows Driven By Small Hydraulic Power Pack. S/St Lid With Sight Glass. Serial Numbers 15618 (1998) And 15607 (1997). Excellent Condition.

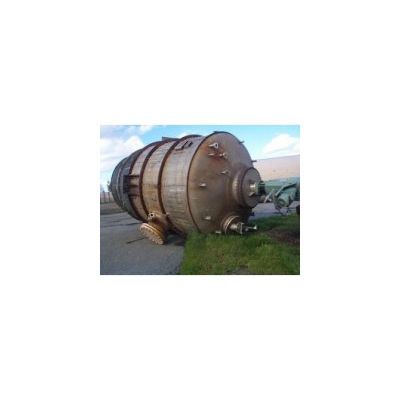

Crystallizer, 8,000 gallon capacity, manufactured by Struthers Wells, "Krystal", cooling type crystallizer. Constructed of 316 ELC stainless steel, design pressure -15 PSI external full vac @ 200 deg. F. and 20 PSI internal @ 250 deg. F. Suspension chamber measures 10` outside diameter x 9` straight side, 6` cone bottom. 38" center top nozzle, 20" top side manway, 24" side manway, top head thickness 3/8" and bottom head and shell thickness of 5/16". Complete with Lightnin agitator (coil has been removed). Agitator driven by 7.5 HP motor, 67 output RPM on shaft, shaft includes (2) 3-blade paddles. Good condition.

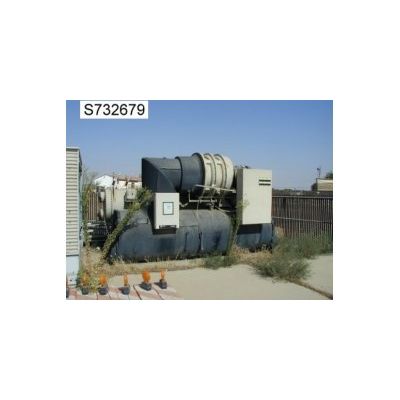

Trane chiller, 890 ton capacity, centrifugal, water cooled, model CVHE-890 Centra-Vac, direct drive, hermetically sealed. 3-phase, 60Hz 440 volt. New 1994. Unused, never installed. Serial number L94C02610.

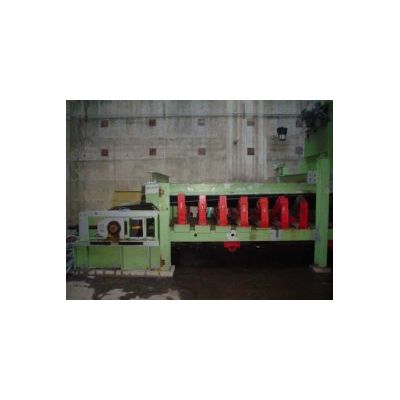

Belt conveyor, 72` wide x 120` long, channel frame, 9` channel frame C/st. Includes continental idlers: (36) 7` rubber impact, (9) 6` steel troughings, (2) 6` training, (9) 6` adjustable, and (11) 6` return. 30` x 7` dick, tail and head pulleys. Full length 3` x 15` bent plate dust skirt with bolted-on wear plates and Martin Trac mount rubber skirt boards. 9/16` steel belt: Yokahama st-725 10 82-9. Reported to be in good condition.

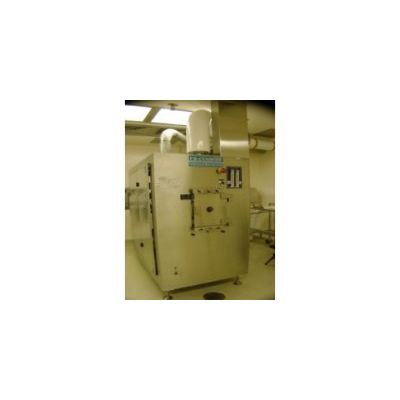

Coating pan, manufactured by Vector Freund, "Hi-Coater", Model HC48/60, pharmaceutical grade stainless steel, system includes 9 ltr., 10 bar (19"), 316 stainless steel pan including (1) stainless steel spray bar with spray gun. Also includes 23 ltr., 10 bar, 316 stainless steel pan to include (2) 304 stainless steel spray bar. System also includes Modern Electrical control system, product tray, explosion proof dust collection equipment, hepa filter, isolation valves and Fike System control panel for isolation system. This system is in like new condition.

Vacuum conical dryer, 300 liter (10 cu. ft.) capacity, manufactured by Lee Industries, model 300LU, stainless steel construction, rated for 50 PSI @ 300 deg. F internally, jacketed for 100 PSI @ 338 deg. F. Pan measures 30" diameter X 26" straight side with cone bottom. New in 1998, serial number C5281G. Dryer is mounted in frame with clear plastic housing. Pan rotates 180 degrees as product is being dried and vacuum is pulled on filter cake. Previously used in clean room atmosphere and in excellent condition.

Cherry Burrell Horizontal Sanitary Storage Tank. Unit Is 316 S/St, Measures 7"6" Dia X 18"8" Long With Dished Ends. Vessel Is Complete W/16" X 22" Manway, Assorted 3"-2" Top Inlets With Sanitary Fittings & 2-1/2" End Bottom Discharge. Tank Is In Excellent Condition, Last Used In Pharm App Storing Purified Wft (Water F/Injection), Mfg New 1993, S/N 5000-79-2028.

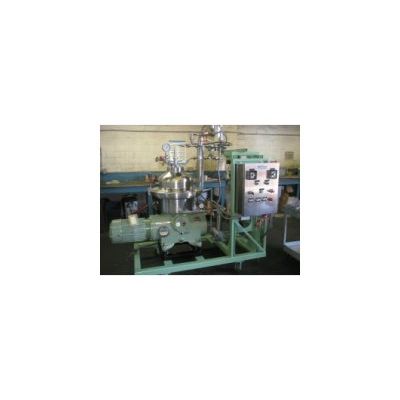

Westfalia model MSA 20-06-076, automatic desludging centrifuge with all contact parts being sanitary stainless steel. Unit is set up as a two way clearifier, equipped with 17 kW 230/460V, 60Hz drive, approx. 25 HP. Unit rated for 5850 RPM, Serial number 1642703. Centrifuge is in excellent condition, complete for sanitary installation.
