Macsensor
5 products found
Macsensor products
Pressure Sensors

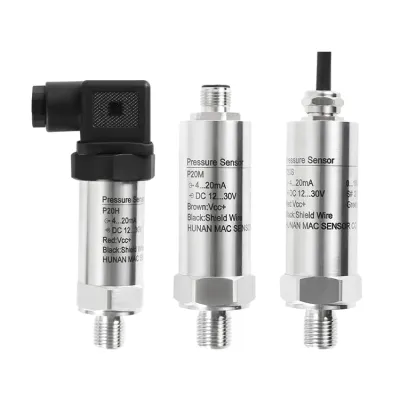

MAC - Industrial Pressure Sensor
The P20 is a piezoresistive pressure sensor designed for a variety of industrial applications where precise and trustworthy pressure measurement is crucial. This sensor supports standard signal outputs such as 4-20mA, 0-5V, 0-10V, and RS485, and covers a measurement range from -1 to 600 bar. The sensor is engineered with a welded housing made from 316L stainless steel, offering enhanced resistance to corrosion and ensuring durability when exposed to varying media including liquids, steam, and gases. The high-stability piezoresistive pressure chip used in the P20 provides minimal error, achieving accuracies as high as 0.1% F.S. To withstand tough industrial conditions, it features robust EMC and EMI protection, along with resistance to shock and vibration. Its design ensures compatibility with various mediums including water, oil, fuel, and gases, and different pressure and electrical connections, thus making it versatile for multiple industrial uses.

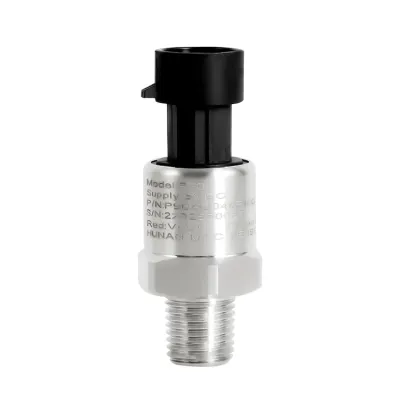

MAC - Compact Ceramic Pressure Transducer
The P90 is a compact ceramic pressure transducer designed for accuracy and durability in diverse industrial applications. Its compact size and lightweight architecture allow for versatile and straightforward installation. The unit supports both 4-20mA and 0.5-4.5V output signals, ensuring precise pressure measurements within a range of -1 to 200Bar. With a high-quality ceramic sensor core, the P90 transducer guarantees high accuracy and long-term stability, even under harsh environmental conditions. The device is equipped with a Packard interface for easy installation and an IP65 waterproof rating. The HPT907D variant offers a cost-effective solution, featuring rapid response, exceptional sensitivity, and robust sealing, making it suitable for a wide range of pressure monitoring tasks. Key technical specifications include a compact 22mm diameter, high stability, wide temperature compensation range from 0℃ to 50℃, amplified signal output, and strong EMI resistance. It operates within -30℃ to 100℃, has a supply voltage requirement of 12-30VDC, and output options of 4-20mA or 0.5-4.5V ratio-metric. The device can measure non-corrosive and non-solvent media such as air, water, and oil.Level Sensors

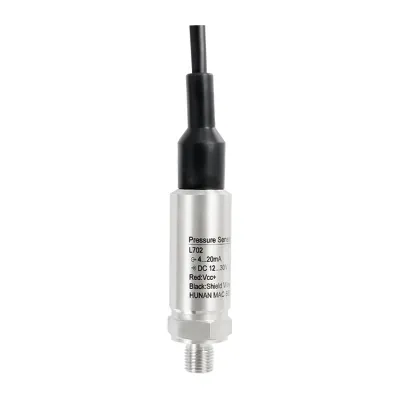

MAC - Submersible Pressure Sensor
The L702 is a fully sealed submersible pressure transmitter designed for precision and durability, suitable for a range of demanding applications. This device integrates a highly stable and reliable piezo-resistive pressure sensor with an accurate circuit board, all encapsulated in a robust stainless steel housing. The construction ensures long-term immersion in various media without impacting performance. It covers a range of 0-0.1 Bar to 50 Bar, or 0-1 meters to 500 meters H2O, offering multiple output options including 4-20 mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, RS485 and RS232. The power supply options vary from 5V DC to 36V DC, with customized battery and temperature compensation options. Accuracy stands at ±0.5% F.S standard or ±0.25% F.S customized, while the working temperature range extends from -30℃ to 80℃, or up to 100℃ if customized. The L702 can be applied in diverse areas including water treatment, sewage processing, river and borehole levels, and industrial pressure measurement.
MAC - Submersible Hydrostatic Level Transmitter for Liquid Measurement
The L703 submersible hydrostatic level transmitter by MAC is designed with a corrosion-resistant 304 stainless steel shell, featuring a high-precision imported core with 0.5% accuracy. It includes a digital circuit board with temperature compensation and a welded 316L diaphragm, rendering it compatible with various liquids. The device is equipped with surge and polarity protection, ATEX explosion-proof certification, and military-grade cables to ensure stable signal transmission and protection from external interference. It is particularly suited for precise liquid measurement and control in sectors such as medicine, metallurgy, and municipal water supply. The transmitter supports diverse output signals including 4-20mA, 1-5V, 0-5V, 0-10V, 0.5-4.5V, SDI-12, and RS485 Modbus RTU. It operates within a temperature range of -30℃ to 70℃, extendable to -30℃ to 100℃ on custom versions, and is designed to withstand storage temperatures from -40℃ to 85℃. The device offers temperature compensation between 0℃ to 50℃, accuracy up to ±0.5%F.S or ±0.25%F.S on request, and long-term stability with a standard deviation of 0.2%F.S±0.05%. It has an ingress protection rating of IP68 and can handle overload up to 150% F.S.Wireless Sensors
