Maddalena products

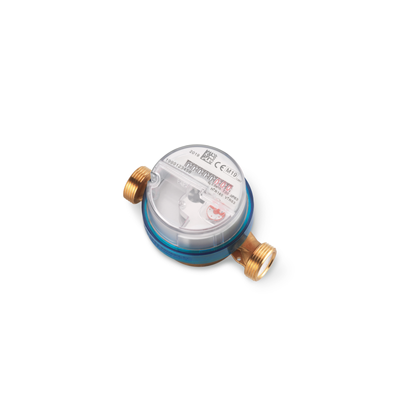

SJ Plus / Evo represents the new generation of single jet meter for residential use. The innovative automated production line combines high production capacity with the highest quality. Sj Plus/Evo achieves the highest metrological performance in its category. It can be equipped with the latest remote data transmission technologies.

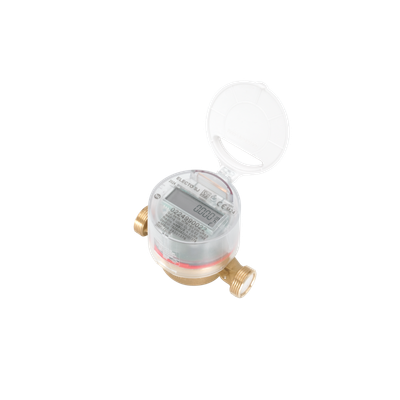

The ElecTo SJ is the single-jet meter that offers integrated data communication thanks to its innovative multi-protocol radio electronic register. This variant is designed for both indoor and outdoor residential applications and is available for cold and hot water. The LCD display simplifies data reading and makes additional information available to users and operators. Thanks to dual wM-Bus and LoRaWan communication, it offers maximum flexibility in short and long distance data communication and can be used with both mobile and fixed reading systems.

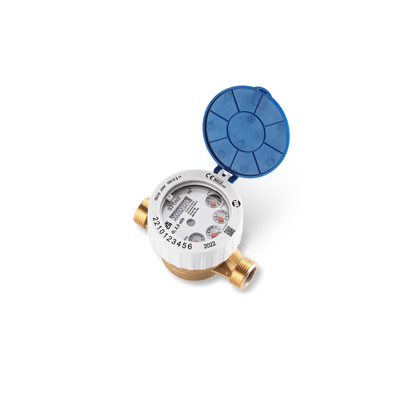

SJ ONE is the ultimate single-jet meter expression. Thanks to its mechanical transmission, it offers high metrological performance and is insensitive to external magnetic fields. Its “protected rollers” solution, first developed by Maddalena, ensures perfect legibility over time. Compact, and robust is suitable for the most challenging environments. It can be equipped with the latest remote data transmission technologies.

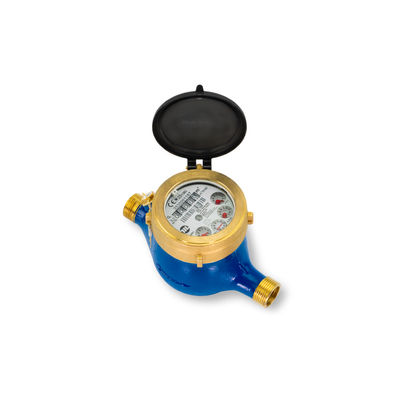

DS TRP represents the ultimate multijet meter expression. Thanks to its mechanical transmission, it offers high metrological performance and is insensitive to external magnetic fields. Its “protected rollers” solution, first developed by Maddalena, ensures perfect legibility over time. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.

DS SD represents the classic solution for a multijet meter with magnetic transmission. It combines good metrological performance with high protection from external magnetic fields. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.

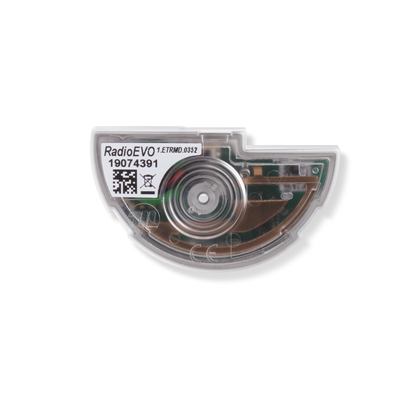

Compact wM-Bus radio module for drive-by and fixed network remote data reading. The configuration of the radio module can be changed using a dedicated configuration kit (optional) and Android app. Radio EVO is also compatible with suitable third-party meters.

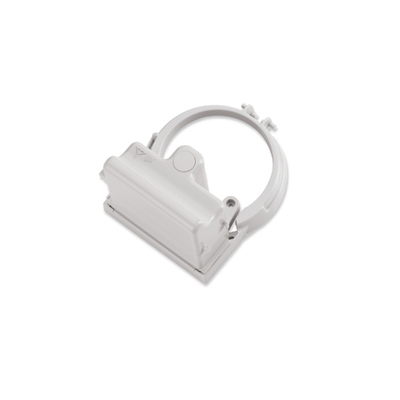

Compact wM-Bus radio module for drive-by and fixed network remote data reading. Also available in a standalone version for connection to compatible pulse emitting meters. Arrow EVO is also suitable for difficult Utility installations (IP68). The configuration of the radio module can be changed using a dedicated configuration kit (optional) and Android app.

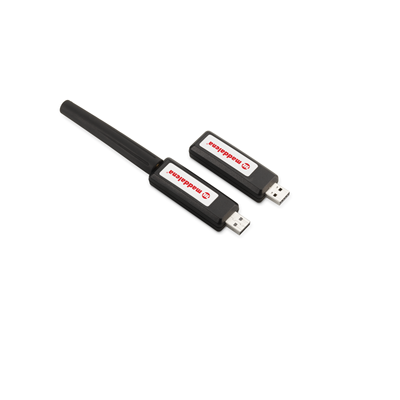

wM-Bus radio transceiver, compatible with Maddalena radio modules and meters, as well as other wM-Bus devices. The transceiver has a USB-A connector and is used to send and receive data from PCs, smartphones or tablets.

Manual or semi-automatic batch control unit able to significantly reduce operation times and simplify batching issues. Batch control units are used in industry, and in particular in the delivery of specific amounts of water in the cement manufacturing industry. The manual unit (TDML) features a pointer indicating the volume of water delivered, a preset pointer, and a meter reset lever. The semi-automatic unit (TDSL) features a preset pointer, to be positioned manually on the volume required at the beginning of the batching operation. As soon as the preset volume is reached, the instrument will issue an end-of-batch electric signal.
