Magitech Equipment LLC products

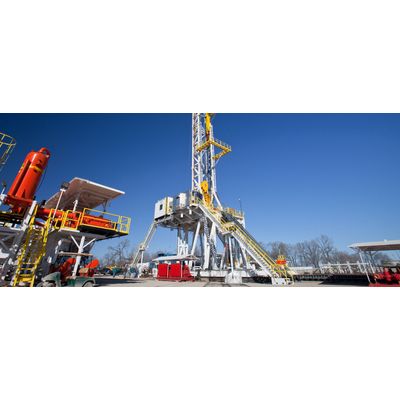

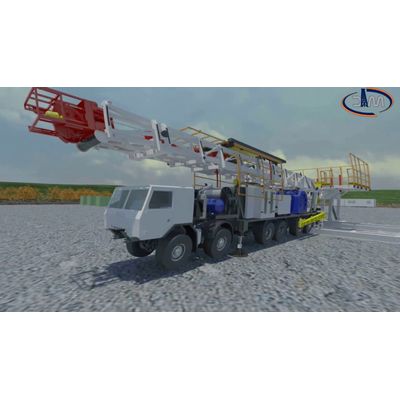

Drillmec MR Series mobile trailer and self-propelled rigs are used for conventional drilling, workover and well service applications. Drillmec covers this variety of applications by manufacturing a full range of rigs’ capacities from 60 up to 250 metric tons. The drawworks, carrier and mast capacities are combined to provide the best performances. The MR Series fully mechanically driven rigs are designed to ensure ease of operation in a wide variety of terrains and extreme climatic conditions. The MR Series design enables it to be inherently agile in order to access from the extreme heat of the Sahara desert, to the bitter cold of the Siberian tundra or the challenging elevation changes of the Utica shale.

Drillmec’s deep roots in the manufacturing of drilling rigs begin around 1929 and since then the rig designs have been continuously improved by raising the pull-up capacity, enhancing safety, optimizing performance and minimizing environmental impact. Drillmec starting from Massarenti and Branham’s designs produces a full range of land rig packages to satisfy almost any need with successful achievements all over the world. Drillmec understands that the objectives and conditions of drilling contractors are constantly changing, requiring different solutions in order to help them achieve good results. Drillmec rigs are available in a wide range of specifications in order to fit custom configurations and capabilities; together with the conventional land rigs illustrated in this catalog, Drillmec produces the Advanced HH Series and the AHEAD Series, the new frontier of hydraulic drilling rigs for unconventional drilling.

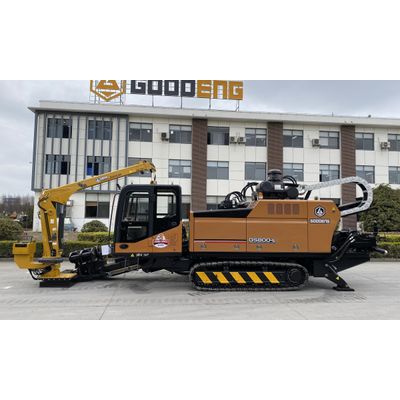

The machine is equipped with Cummins turbocharged engine, which is characterized with strong power, and stable performance. The oil consumption is lower than other engine. Thrust & pullback is equipped with French Poclain high pressure piston motor with simple transmission structure and reliable performance. Push & pull has multiple variable speed, and push-pull force can reach 1300KN. The working efficiency is the top rank in this industry. Rotation is equipped with French Poclain high pressure piston motor, with infinitely variable speed, which can improve working efficiency greatly. The machine is equipped with the double speed motor of excavator. Low clamping center can protect the drill rod effectively, and takes up small construction space. Front and back clamps can be separated, and the clamping can change block according to drill rod specification. The floating spindle is in favor of protecting drill pipe thread.

The machine is equipped with Cummins turbocharged engine, which is characterized with strong power, and stable performance. The oil consumption is lower than other engine. Push & pull device is equipped with German Rexroth high pressure piston motor with simple transmission structure and reliable performance. Push & pull has multiple variable speed, and push-pull force can reach 1300KN. The working efficiency is the top rank in this industry. Rotation is equipped with French Poclain high pressure piston motor, with infinitely variable speed, which can improve working efficiency greatly. The machine is equipped with the double speed motor of excavator. Low clamping center can protect the drill rod effectively, and takes up small construction space. Front and back clamps can be separated, and the clamping can change block according to drill rod specification. The floating spindle is in favor of protecting drill pipe thread.

The rotary system adopts German Linde liquid controlled closed system pump, which is efficient, stable and reliable. Thrust & pullback adopts Sunny automatic variable system and load sensitive control. The Poclain motor is used for rotation and the high-pressure plunger motor is used for push-pull. The working efficiency of the traditional hydraulic system is increased by more than 20%, and the heating capacity of the system is reduced, which can save 20% energy. The thrust & pullback and rotating joystick adopts hydraulic control mode, which reduces the operation fault. The system is more stable and responsive. Equipped with Cummins turbocharged engine with strong power, stable performance and lower fuel consumption than other engines; Maximum thrust & pullback force on carriage can be reinforced up to 910 kN, which provides the support for large construction.

Earth Pressure Balance Rectangular Pipe Jacking Machine accomplishes rectangular section tunnelling by earth pressure balance principle, it reduces land acquisition, jacking acreage and saves project cost by its rational section structure. It can be used for the construction of crossing tunnel, highway crossing, subway station, underwater tunnel and the pipeline of electric power, communication, Petroleum, natural gas on downtown area, ancient historical preservation zone and so on. The full section cutting has been made on rectangular section by the machine. The machine can keep the earth pressure balanced and make less disturbance of soil. It can increase the space utilization and reduce the volume of the tunnelling earth. Does not affect road traffic, water transportation and buildings on the ground. Less noise during construction. No environmental pollution.

Pebble Pipe Jacking Machine is suitable for the soil layer with some pebble, which is not suitable for the slurry pipe jacking machine and the earth pressure pipe jacking machine.The cutter is equipped with hobbing cutter (the amount of the hobbing cutter dues to the pebble proportion in the soil layer), and the slurry cabin is equipped with horn type cutter for the second crushing. It is suitable for various kinds of soil by changing cutter. Big power it has a strong ability of first crushing and second crushing. The cutter drive system adopts Italian planet gear, which has strong power and reliable quality. It uses motor converter technique, the cutting rate is adjustable.

Rock Pipe Jacking Machine is driven by inner gear, and the driving torque is big. It has no center axis, so the repairer can go into the slurry cabin freely. The machine can tunnel in sand, gravel and rock. The repairer can go into the slurry cabin freely to change the cutter. Large diameter cone crushing equipment can execute the second time crushing. The machine can tunnel a long distance. Data collecting and controlling are done by a dedicated computer.

High flexibility to work in wide range of soil quality, especially for coarse sand, weathered and strong weathered sandstone. Applying low speed, high torque transmission methodology to boost the cutting force. The overload factor can reach 3 or above. The independent, comprehensive soil injection, and grouting system can improve the excavation face soil condition. The construction land subsidence is small, the minimum overburden can be only 1.5 times the diameter of the smallest. Using central support type cutter, compact construction, light weight, long life, and easy maintenance. Using screw conveyor transfer soil, the altitude is high and the particle size is large. Head of the pitch and the deflection angle using advanced electrical system control, easy operation, responsive, corrective amount digital display. intuitive and reliable. Full section cutting, and the opening rate can be reached to 100%.
