Magna-Safe International products

Laboratory & Pilot Scale Mag-Drive Top Entering Mixers. Small mounting connections. Can be fitted to glass vessels. Electric, variable speed, and air motors. Several impeller styles to suit most applications. High Pressure capability to 3000 PSI. Available in most alloys, glass lining, and coatings. Suitable for volumes to 50 gallons.

Magna-Safe will retrofit and recondition your existing mechanical seal mixer using mag-drive technology. Reuse your existing wetted parts. Or upgrade to new, more efficient and high productivity impeller technology. Magna-Safe will replace old, unreliable mechanical seal agitators on exiting vessels without the need to modify the vessels. Our capability extends to most alloys, coatings, and glass lining.

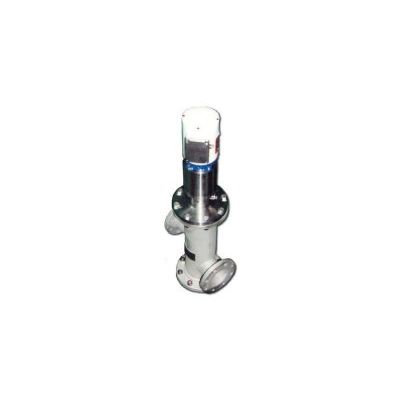

Continuous Flow. Inline blending.High Shear. Detergents.Chemical. Petrochemicals.

50Ltrs-1000Ltrs. volume with magnetic coupling. Pressures upto 100 bar & temperatures upto350°C. SS-316/316L, Hastelloy B/C, Monel, Inconel, Titanium, Zirconium, etc. Gas induction impellers with max. gas liquid interfacial area Ideal for hydrogenation

Free draining, open impellor with high flow, low shear blade. Highly polished wetted parts in 316L SS. All stainless drives and motors available. Electric and air motors to 5 HP. All FDA, USDA, and USP approval materials. Independently tested for cleanability and particle shedding. Able to mix volumes to 30,000 liters. Validatable using documents provided. No maintenance design. CIP/SIP sterilizable. Magnets cannot decouple. Pure silicon carbide and PEEK bushings. Robust, one piece weld plate.
Available with speed sensor and tachometers for variable speed.

The Magna-Safe mixer is designed to be Cleaned In Place (CIP) and can run dry. No other company provides a side entering design that is both 100% leak proof and sealless.

Autoclaves with common head, external fittings, panel, motor, trolley etc. & interchangeable separate 2nos. vessel, heater & internal fittings (possible for 50ml & 100ml, 450ml & 750ml, lLtr. & 2Ltrs autoclaves). Amar does not promote this option as this is possible in autoclaves having same diameter, only the height being different the minimum stirrable volume is same hence it is advisable to go for only higher volume autoclave as changing the internal fittings like cooling coil & thermowell is not advisable regularly (if not refitted properly, user may face leakage problem). Fixed head design is mandatory for this option.

Top mounted com pact In line Motor & Magnetic Drive. Zero leakage during rotation under vacuum & under pressure. Ideal for any lab using stirrers under vacuum. Life long maintenance free. Suitable for shaft sea ling of any metal/glass reactors from 50ml-25Litressizes. Max. pressure from full vacuum upto 6 bar for glass reactors & 350 bar or more for metal reactors. MOC offered :SS 316, HastelloyC,Monel,Titanium,etc. No external rotation, rotation inside housing. Noiseless, Vibration free with infinite variable speed regulators indicator. No stand for motor mounting required. Light weights economical. PMDC/Brushless DC Motor option available. AvailableinTorquecapacitiesupto8N-m

Top entry mag drive agitators available with torque up to 20,000 Nm. Suitable for very high pressure or high & low temperatures. Particularly suitable for dangerous applications (hydrogenations). No losses, no contamination. Available in 316s/s or Hastelloy and other high alloys, etc… with hybrid or all ceramic bearings. Suitable for chemical and food & pharma industries.

Top entry mag drive agitators available with torque up to 5000 Nm. Suitable for very high pressure or high & low temperatures. Particularly suitable for dangerous applications (hydrogenations). No losses, no contamination. Can be manufactured in stainless steel, hastelloy etc… with hybrid or all ceramic bearings. Suitable for chemical and food & pharma industries.
