Magnet-Physik Dr. Steingroever GmbH products

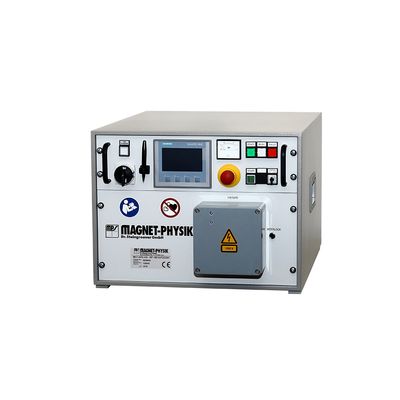

The U-series impulse magnetizers are suited for a wide scope of applications in laboratory and production settings. At small energies they are ideal for the magnetization of sensor systems made of ferrites, with short cycle times at currents of up to 20 kA. In the energy classes of 1,400 Ws or 2,800 Ws they are typically used to magnetize rotors with NdFeB magnets up to a diameter of approx. 60 mm. With this device you can magnetize with impulse currents up to 60 kA.

MAGNET-PHYSIK specializes in producing customized magnetizing fixtures tailored to client specifications and product requirements. These fixtures provide significant advantages to the production process by allowing magnets to be mounted without magnetization, which occurs only when integrated into the final product. This methodological approach supports streamlined production and enhances manufacturing efficiency. MAGNET-PHYSIK employs Finite Element Method (FEM) calculations to model and predict the outcomes of the magnetization process effectively. Their services cater to the requirements of both single magnets, where axial and diametric magnetizations are applicable, and multipole systems, where magnetization can occur at the outer and inner circumferences or directly on the surface. This versatility makes MAGNET-PHYSIK a critical partner in achieving precise and reliable magnetization solutions for complex industrial needs.

The PERMAGRAPH is the world-wide known standard equipment for the measurement of magnetic characteristics of permanent magnets in research, development, quality control and production.
