Magnetic Analysis Corporation products

Versatile Threshold Selection: Challenging test conditions are made simple with threshold selections that allow complex gating to detect ID/OD and weld sector defects. 3 gates per channel may be set based on All Phase, Sector, Chord or Half Chord thresholds. (Gates shown at right & below). Up to 8 Channels: Eight differential (null) or absolute channels, each able to operate over the entire frequency range of 1 KHz to 5 MHz, with appropriate test coils or rotary probes. One channel can be set as a differential channel with an encircling test coil to detect short weld line defects, for example, while a second channel, using a rotary probe test, simultaneously detects long, continuous surface flaws such as laps and seams.

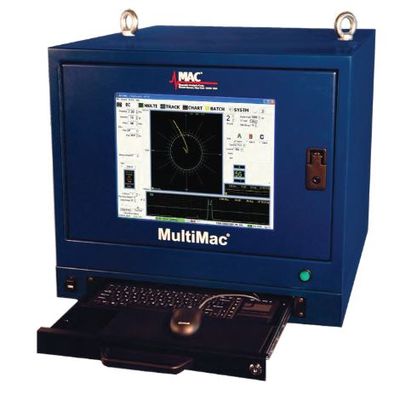

Eddy Current Instrument for Encircling Coil, Sector and Rotary Probe Testing of Tube, Bar, & Wire.

Economic, Single Channel Eddy Current Tester for Simple Inspection of Continuous Product.

Performance: MAC’s proprietary Multimac® software. High performance, low cost. Broad frequency range - 1 KHz to 5 MHz. Configure for Flaw or Absolute mode for use with encircling or sector coils. Sensitivity, phase & filter easily set on screen while viewing full color polar & linear display of real time, true wave form signals. Solid state relay output from active threshold signal. Use with MAC test coils & platforms, including DC saturation CP’s for testing magnetic material. CE Compliant

Economic, Single or Two Channel Full Feature Digital Eddy Current Tester for Tube, Bar, Wire.
