Manas Microsystem Pvt. Ltd products

Full Bore Electromagnetic Flow Meter by Manas Micro called SROAT-1000 virtually approaches the ideal flow meter suitable for a wide range of liquid flow measurements even with very low conductivities. The meter offers no resistance to flow hence the pressure drop is almost negligible. The measurement is based on Faraday’s law of electromagnetic induction, which is independent of viscosity, density, pressure & temperature of the flowing medium. The measurement is not affected by solid impurities, as long as the minimum conductivity of 5µs/cm is available. It is true volumetric flow measurement. We offer various materials of construction for meter lining & electrodes to cover the majority of corrosive liquids.

Insertion Type Electromagnetic Flow Meter is an best solution for water flow measurements in immense diameter pipes. Most reasonably priced compared to its counterpart in full bore dimension or ultrasonic measurement.

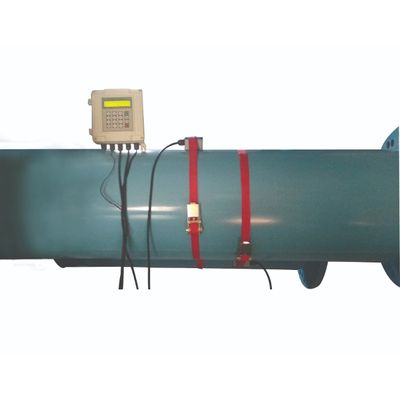

Ultrasonic flow meter works on the Transit Time or Time of Flight principle. The Flow meter unit utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped onto the outside surface of the closed pipes. The transit time flow meter measures the time it takes for an ultrasonic signal transmitted from one transducer to cross the pipe and be received by second transducer. The flow is then measured by comparing the upstream and downstream time of Ultrasonic signal.

It works on Transit Time or Time of Flight principle. It utilizes two transducers that functions as both Ultrasonic transmitter and receiver. The transducer is inserted in the surface of the closed pipes. The transit time flow meter measures the time it takes for an ultrasonic signal transmitted from one transducer to cross the pipe and be received by second transducer. The flow is then measured by comparing the upstream and downstream time of Ultrasonic signal.  With no flow through the pipe the transit time would be equal in both directions.

Manas, a premier steam flow meter manufacturer, offers Model SFMc-150, which is applicable for measuring flow rates of saturated and superheated steam, mass flow rates of Boiler feed Water in closed conduits. It is based on one of the time-tested principles of flow measurement, the differential pressure measurement across the orifice.

The GFM-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air, and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability, and ruggedness are of prime concern.
