MannHummel products

For special air conditioning and ventilation systems in food, chemical and pharmaceutical industries, where demanding requirements for explosive atmospheres need to be met.

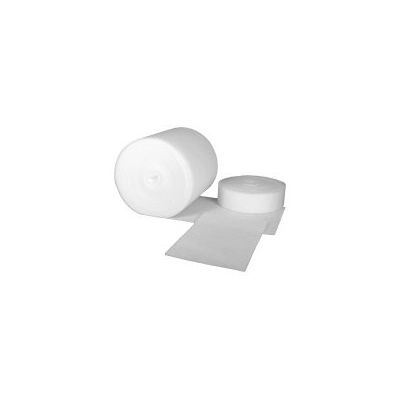

Nonwoven fabric, thermally and mechanically strengthened without binders, progressive structure. Synthetic: pre-filtration for air-conditioning and ventilation equipment and/or systems, highly effective with coarse dust, supply air filters for paint systems. Microglass paper: Paint stop (green): floor filter for colour mist separation in paint cabins and spray booth Dust stop (yellow): separation of dry dusts. Filter media Synthetic or microglass paper.

Design: Coarse dust filters TF30: Pocket filters synthetic G4-EN779:2012. Medium dust filters TF45: Pocket filters synthetic M5-EN779:2012. Fine dust filters TP: Pocket filters synthetic M6, F7, F8, F9 – EN 779:2012. Fine dust filters TR: Pocket filters synthetic F7, F8 – EN 779:2012. Fine dust filters TG: Pocket filters microglass fibre M6, F7, F8/9 – EN 779:2012.

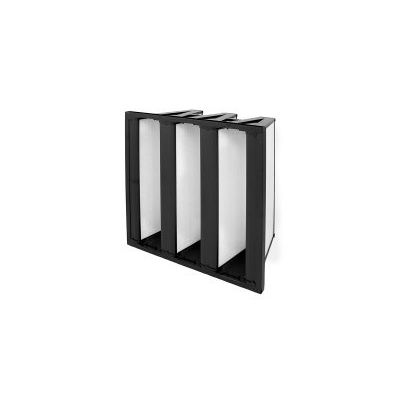

Design: Compact filter with plastic frame, innovative 3V-Design, frame made of flow-optimized profiles. Applications: Fine dust filter for pre-filtration or main filtration for all HVAC systems. Filter media: Microglass fibre – moisture resistant.

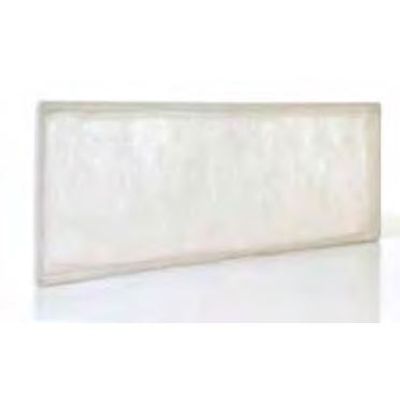

Installed into floor, wall and ceiling-mounted fan coil induction units to provide air cleanliness and protection for system parts.

Suitable for use in close control air conditioning units, such as computer rooms and installations requiring a high degree of cleanliness.

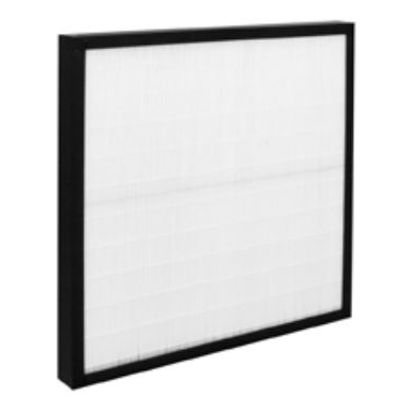

Mini-pleated, microglass media in a robust plastic frame. Hotmelt separators ensure an even air flow across the filter area and the hollow profile frame minimizes weight.

Design: Mini-pleat panel filter with plastic frame. Applications: Pre-filtration or main filtration for all HVAC systems. Filter media: Synthetic or Microglass fibre. Frame: Plastic frame – polystyrene, recycled halogen-free. Optional: Cardboard, galvanized steel, stainless steel.

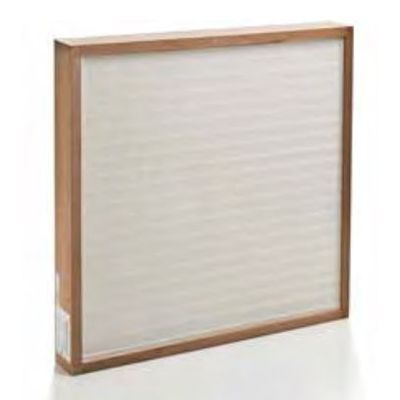

Filter medium constructed from various grades of microglass fiber paper folded into a pack. The filter pack is sealed into a wooden, galvanized steel or stainless steel frame with a solid polyurethane sealant. Every filter is tested according to EN 1822:2009, and is supplied with a test report and three-part serialized product label.

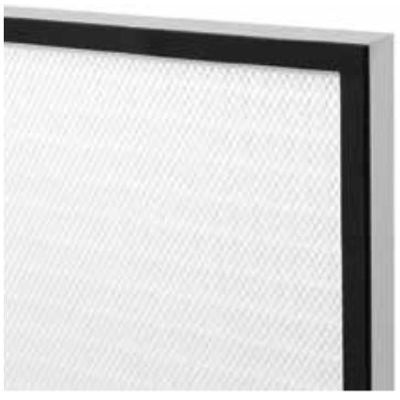

Filter medium constructed from various grades of microglass fiber paper folded into a pack. As standard, the pack is sealed into an anodized aluminum frame.
