Mantracourt Electronics Ltd. products

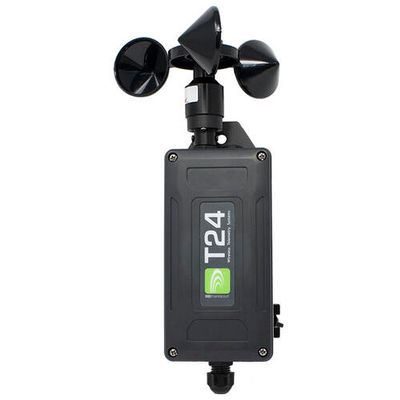

The wireless wind speed transmitter (Anemometer) T24-WSS is built on Mantracourt’s T24 2.4 GHz wireless technology and operates alongside any T24 device such as base stations, handheld displays, analogue output, relay modules, GPRS data loggers, computer interfaces and more. Data transmitted by the T24-WSS can be received by multiple T24 receivers and displays. The T24-WSS constantly monitors average wind speed and uses a low power mode between transmission which provides exceptional battery life in excess of 12 months in the field.  It has a wireless range of up to 800 m (2,600 ft) and is supplied pre-calibrated for ease of use.

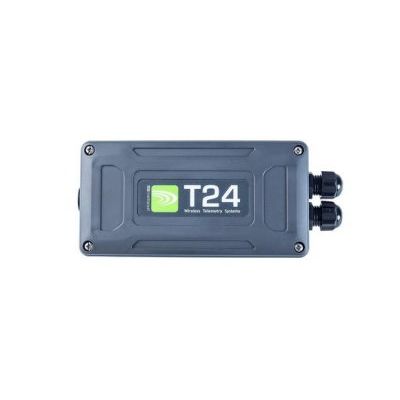

The largest of the T24 wireless transmitter enclosures, the T24-ACM offers high performance wireless sensor transmitter measurement for strain gauge, current, voltage, temperature, pulse and potentiometer. Using Mantracourt’s proprietary 2.4 Ghz wireless telemetry electronics, this system provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely. Featuring a compartment for a pair of alkaline ‘D’ cells, the T24-ACM also has a regulator circuitry for an external power supply. The batteries can also be used to provide power in case of external supply failure. For easy wireless sensing, the unit provides connections via the 2 part screw terminals and provide environmental sealing to IP67.

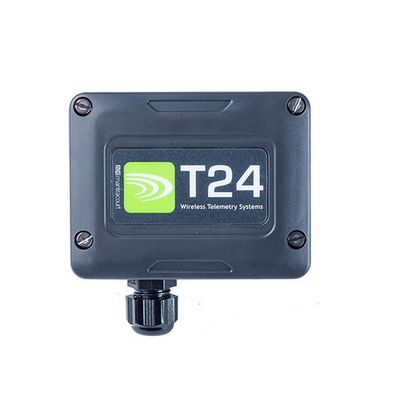

The wireless sensor transmitter enclosure offers high performance wireless sensing measurement for strain gauge, current or voltage input sensors. Using Mantracourt’s proprietary 2.4 GHz wireless telemetry electronics, the wireless sensor transmitter module provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely. The T24-ACMi is powered by a pair of alkaline ‘AA’ cells and is environmentally sealed to IP67. The high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.

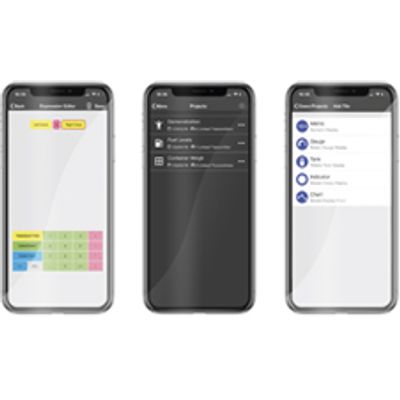

Build powerful expressions to define exactly what gets displayed. Create multiple projects each with their own dashboard and list of modules. Display data from multiple B24 strain bridge modules on your device. Choose from five alternative tile types to customize your dashboard.

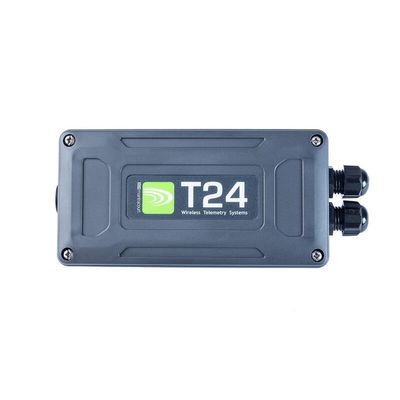

The largest of the T24 wireless transmitter enclosures, the T24-ACM offers high performance wireless sensor transmitter measurement for strain gauge, current, voltage, temperature, pulse and potentiometer.

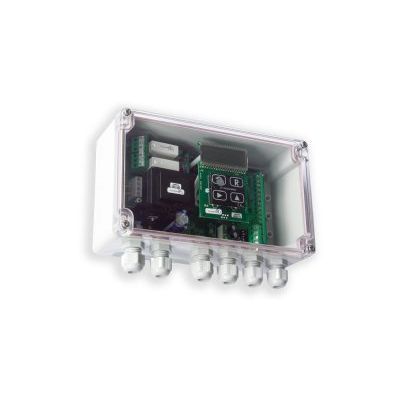

The model LVDT or RVDT signal conditioner and A provides a convenient and flexible solution to the measurement of displacement or position (linear or angular) when using Linear Variable Differential Transformers or Rotary Variable Differential Transformers (LVDT`s or RVDT`s).

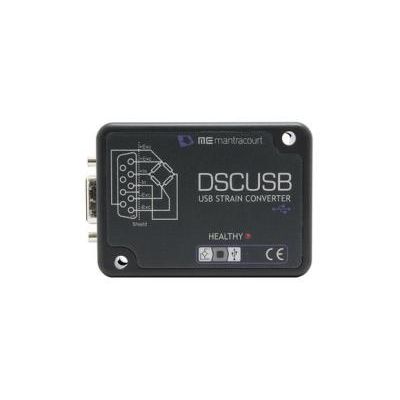

The DSCUSB strain gauge to USB converter is a compact, high performance strain gauge digital signal conditioner with USB connectivity aimed at applications which require high-accuracy measurement repeatability.

The PSD load cell or strain gauge handheld display combines extremely high resolution and low power with the convenience of a handheld display and keypad.

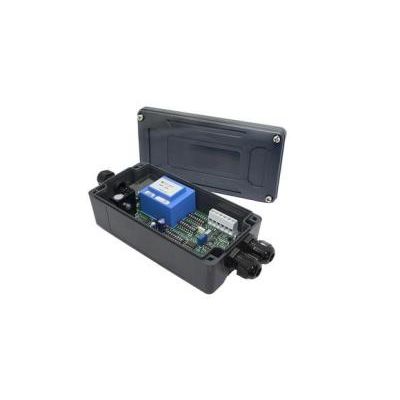

This very flexible digital load cell amplifier for weighing single or multiple load cell applications, offers an easy one-pass calibration and fast setup.  It is also equipped with relays, data port and display.
