MAS DAF MAKINA SAN. A.S. products

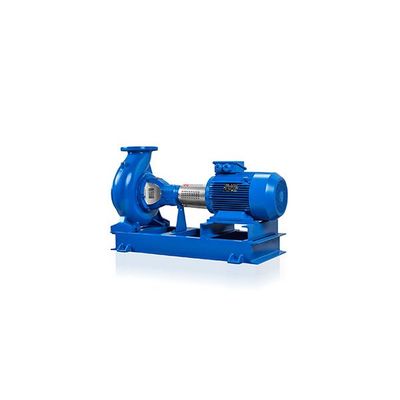

Main dimensions, compatible with EN 733 (DIN 24255) norm. A total of 48 designed pumps available in the series. Single suction with closed impeller, and thrust balanced by means of counter-balancing holes and back wear rings, thus acquiring a dynamic balance. The pump and the motor have a standard connection to the common base plate with a flexible coupling. Maintenance and repair procedures are easily carried out since the pump fixtures can be removed with the volute body remaining intact. Use of extended coupling also enables the removal of the pump fixtures without moving the motor or the volute body. The series has been designed so that parts are easily replaced and standardized. The entire series is made up of only 6 bearings and 10 shaft types, thus simplifying spare parts procurement.

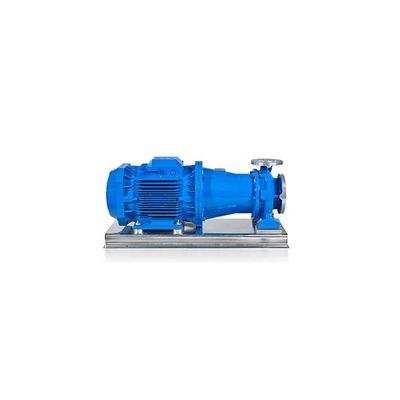

Thanks to magnetic couplings which are used in NM m-Drive series pumps, zero leakage is provided. Outer magnetic rotor is rotated by motor shaft and inner magnetic rotor is rotated synchronously to outer magnetic rotor by magnetic forces without any physical contact. Inside of the pump is isolated from environment by containment shroud and zero leakage is guaranteed.

Design: Single stage, end suction, volute casing ISO EN 2858 DIN 24256 standard pumps. Centerline mounted, single stage volute casing pumps with mechanical seals and heating jacket (Centerline mounted model). Single suction, radial and mixed flow closed type impeller is equipped with back wear rings to balance axial loads. Impeller is also balanced dynamically according to ISO 1940-1 G6.3. Pump and motor are coupled on a rigid frame by using elastic or ATEX certificated couplings. Pump shaft, impeller, bearing housing and other components can be dismantled without removing pump casing. Thus maintenance and assembly operations can be easily performed. By using spacer coupling it is possible to dismantle pump without removing motor. Same components can be used at maximum versatility and they can be used in pumps at different dimensions so it is easier to store spare parts and change pump components.

The pump is equipped with a fault and operation message (adjustable). Pumps are designed to operate singly in installations requiring high safety. (Pump 1 or Pump 2). The other pump enters the circuit depending on the time or the failure of a pump. Pump is suitable for cold water use. Wear-free, precision flat bearings provide silent operation and extend the life of the pump. The resistance to high temperatures of the bobin provides a long lifetime for the pump and allows high temperature fluid to be pumped. Improved water intake ensures bearing lubrication in the rotor compartment and small pumps do not require air bleeding during operation. An automatic pressure control saves for good measure on variable flows.

Design: User-friendly pumps have simple and clear control buttons and lightened displays. The pump is equipped with an internal electric motor protection and does not require external motor protection. The pump is equipped with a fault and operation message (adjustable). Wear-free, precision flat bearings provide silent operation and extend the life of the pump. The resistance to high temperatures of the bobin provides a long lifetime for the pump and allows high temperature fluid to be pumped. Improved water intake ensures bearing lubrication in the rotor compartment and small pumps do not require air bleeding during operation. There is deactivatable or activatable power limitation. There is an activated automatic night mode.

Wear-free, precision plain bearings ensure quiet operation and extend the service life of the pump. The winding resistance to high temperatures extends the service life of the pump and enables the pumping of high temperature fluids. Improved water intake ensures immediate lubrication of the bearings in the rotor chamber and small pumps do not require ventilation during commissioning. An automatic pressure control provides extra savings at variable flow rates. There is a power limitation that can be disabled or enabled. There is an automatic night mode that can be activated.

The INM GENiO series pumps are single-stage centrifugal pumps of non-self-priming type fitted with standard motors, frequency inverter and mechanical shaft seals. Outstanding features of the design are easy assembly of the frequency invertor directly into the motor; besides the compact structure of the unit it’s usage in smart applications and being integrable into the system; connectivity of different type of sensors, quiet and safe working style. The nominal flow rates of the pumps comply with the DIN 24 255 standards. Pump flanges sizes according to DIN 2533, PN 16. The dimensions of the suction and discharge ports are identical. Both pump flanges have pressure gage tapings. Single entry, closed impeller is hydraulically thrust compensated and dynamically balanced. A drain plug is fitted in the bottom of pump housing. The motor shaft is passed into the pump shaft for coupling and no need to use any coupling for the system.

Design: Single stage in-line type centrifugal pumps are produced with standard motors and mechanical seal. Pump flanges are designed in PN 16 pressure category compatible with DIN 2533. The suction and discharge flanges are identical and are on the same axis. Both flanges are equipped with pressure gage tapings. Single entry, closed impeller is equipped with rear rings to balance thrust and is dynamically balanced.

CSV series double-suction vertical in-line centrifugal pumps are equipped with standard motors and mechanical seals. The impellers of CSV type pumps are (full) radial, double-sloped (Francis type) or mixed flow types. Bearing is provided with two grease lubricated, 6300 C3-type deep groove ball bearings according to DIN 625. TEFC (Totally Enclosed Fan Cooled) 3 phase, squirrel caged, in accordance to DIN 42673, IM 2001B35 type (with flange) electrical motor which complies with DIN IEC and VDE is used to drive the pump in proper speed and power. CSV series are used successfully in large-capacity water transfer in tight spaces thanks to their compact structure, highly efficient construction and the impeller geometry.

Single stage, axially split casing, double-suction pumps. Double entry radial impeller has hydraulic thrust compensation. Suction and discharge flanges are along the same line. Upper body is lighter than the lower body and joins it in such a way that it is easily assembled. Double suction pumps have the advantage of low NPSH (net positive suction head) features. The pump has two different types: SPLT - Long type: heavy service type. Is suitable for soft gasket application and the use of a mechanical seal is optional.” The pump and the motor are connected by means of a flexible coupling on a common shaft. Diesel motor capable. SPLT-V pumps are manufactured with mechanical seal In SPLT-V pumps are placed on the Robust and reliable pump base, manufactured with welding construction.
