Power supply 100...240 Vac (47...63 Hz). Output 24V/0.625A (maximum 15W). Constant voltage, current limited. Continuously short circuit proof. Interchangeable plugs (Euro, UK, USA, Australian, IEC) for mains connection. 8Dinconnector for instrument connection. Cable length 2 m.

Power supply 100...240 Vac (50...60 Hz). Output 24V/0.625A (maximum 15W). Constant voltage, current limited. Continuously short circuit proof. Interchangeable plugs (Euro, UK, USA, Australian, IEC) for mains connection. RJ45 connector for instrument connection Cable length 2 m.

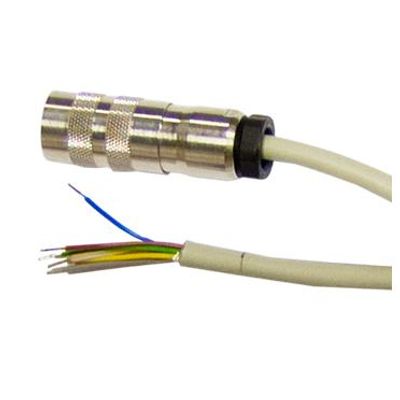

2 meter loose end shielded cable. Is compatibale with our MAG-VIEW and LIQUI-VIEW instruments.

Cable RJ-45 male - DB9 female, 3 meter / 10 ft [7.03.426]. This cable is needed to connect a MASS-VIEW(r) instrument via RS-232 to a computer.

7.03.241 Modular RJ-45 Y-cable splitter, power/signal, 30 cm.  This cable should be used when connecting the MASS-VIEW to power supply as well as to a RS-232 source.

Interconnecting Cable RJ-45 male loose end, 3 meter / 10 ft [7.03.427]. This cable can be used to connect a MASS-VIEW(r) instrument via RS-232 or Modbus to a computer/PLC/PAC/DAQ. You can also use the Modular RJ-45 Y-cable splitter to connect this cable and the power supply to a MASS-VIEW(r) instrument. This cable can also be used to measure the analogue output and connect the relays of the MASS-VIEW(r) instrument.

Interconnecting Cable 8-Din male loose end, 3 meter / 10 ft [7.03.191]. This cable can be used to connect a MASS-STREAM instrument via to a computer, PLC, PAC or DAQ system.. You can also use the RS-232 T-part cable to connect this cable and the power supply to a MASS-VIEW(r) instrument. See example on the picture. This cable can also be used to measure the analogue output and connect the relays of the MASS-STREAM instrument.

From experience we know, not all USB to RS-232 converters are suitable for fast and stable data transmission with digital instruments. We have tested several types of converters and the one we offer here is the best we have seen in the market today.
