Master Flo Valve Inc. products
E-Series Choke Valves

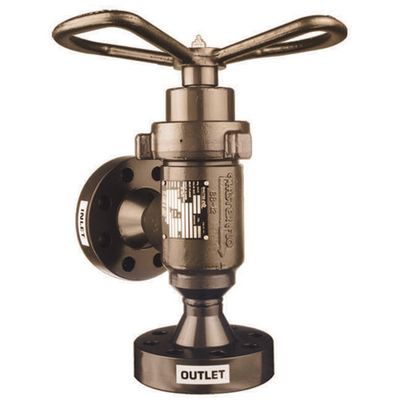

Master Flo - Model P1E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 6,000 psi / 41,000 kPa, 15,000 psi / 103,000 kPa. Standard Connections: 1″, 1.5″, 2″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model P2E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 6,000 psi / 41,000 kPa, 10,000 psi / 69,000 kPa. Standard Connections: 2″, 2.5″, 3″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model P25E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 5,000 psi / 34,000 kPa, 6,000 psi / 41,000 kPa, 15,000 psi / 103,000 kPa, 20,000 psi / 138,000 kPa. Standard Connections: 2″, 2.5″, 3″, 4″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model P3E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 3,600 psi / 25,000 kPa, 6,000 psi / 41,000 kPa, 10,000 psi / 69,000 kPa. Standard Connections: 2.5″, 3″, 4″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model P35E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 6,000 psi / 41,000 kPA, 15,000 psi / 103,000 kPa. Standard Connections: 3″, 4″, 5″, 6″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model P4E - E-Series - Choke Valve
Valve Type: Right angle choke. Max. Pressures: 6,000 psi / 41,000 kPa, 10,000 psi / 69,000 kPa. Standard Connections: 4″, 5″, 6″. Standard Trim: Ported cage with external sleeve.
E-Series Control Choke Valves
Master Flo - Model C1E - E-Series - Inline Control Choke Valve
Valve Type: Inline control valve. Max. Pressures: 3,600 psi / 25,000 kPa. Standard Connections: 1″, 2″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model C2E - E-Series - Inline Control Choke Valve
Valve Type: Inline control valve. Max. Pressures: 6,000 psi / 41,000 kPa. Standard Connections: 2″, 3″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model C25E - E-Series - Inline Control Choke Valve
Valve Type: Inline control valve. Max. Pressures: 3,600 psi / 25,000 kPa. Standard Connections: 2″, 3″. Standard Trim: Ported cage with external sleeve.
Master Flo - Model C3E - E-Series - Inline Control Choke Valve
Valve Type: Inline control valve. Max. Pressures: 3,600 psi / 25,000 kPa. Standard Connections: 3″, 4″. Standard Trim: Ported cage with external sleeve.
