Matest S.p.A. products

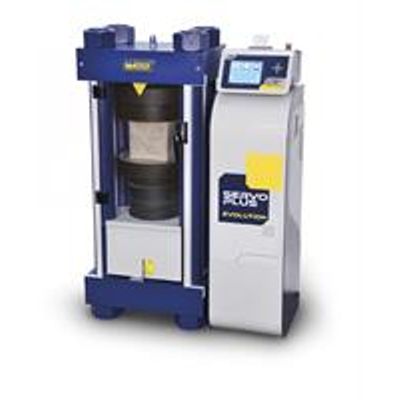

High Stability. Max vertical daylight: 334.5 mm. Horizontal daylight between columns: 260 mm. Compression platens: dia. 287x60 mm. Calibration accuracy: class 1. Max. ram travel 60 mm approx. High stiffness and heavy weight 4 columns frame (german-style). Power supply: 230V 1ph 50Hz 750W. Dimensions: 690x400x1400 mm approx. Weight: 850...920 kg.

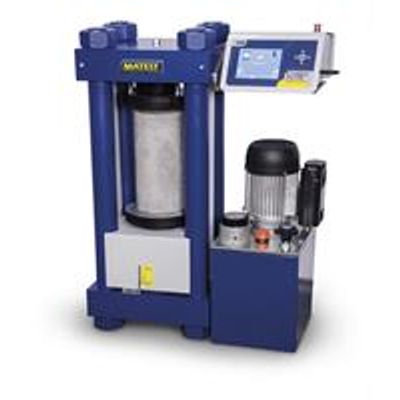

High Stability. Max vertical daylight: 334.5 mm. Horizontal daylight between columns: 272 mm. Compression platens: Ø 287x60 mm. Calibration accuracy: class 1. Max. ram travel 60 mm approx.. High stiffness and heavy weight 4 columns frame (german-style). Power supply: 230V 1ph 50Hz 750W. Dimensions: 750x450x1500 mm approx.. Weight: 1200...1250 kg.

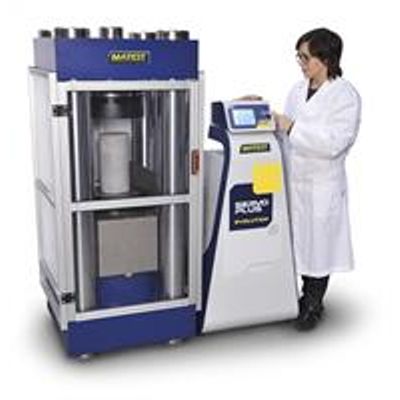

High Stability Max vertical daylight: 590 mm Horizontal daylight between columns: 340 mm Compression platens: Ø 287x60 mm Calibration accuracy: class 1 Max. ram travel 60 mm approx. High stiffness and heavy weight 4 columns frame (german-style) Power supply (motorized models): 230V 1ph 50Hz 750W Dimensions: 1200x900x1900 mm approx. Weight: 2800...2900 kg.

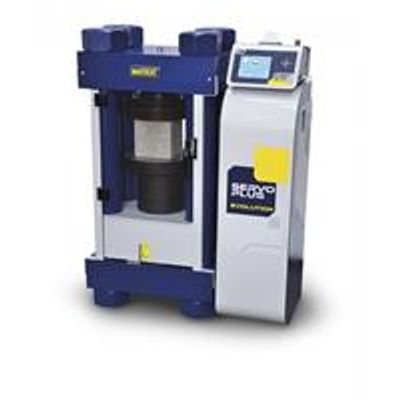

High Stability. Compression platens: Ø 316x60 mm . Hydraulic pressure: 360 bar max.. Horizontal daylight between columns: 321-345 m. Max. vertical daylight: 411 mm. Max. ram travel 100 mm approx.. High stiffness and heavy weight 4 columns frame: 0.3 mm at max. load (german-style). Safety guards to CE Directive: Class "1". Frame size 3000 kN: 725x710x1570 mm. Frame size 5000 kN: 750x750x1700 mm. Power supply: 230V 1ph 50Hz 750W. Weight frame 3000 kN: 2500 kg / 5000 kN: 4000 kg.

Suitable for cylinders up to 160x320 mm and cubes up to 150 mm side. It has the possibility to be provided with a hand operated system to apply the load. In that case, one and two gauge load measuring systems are available.

Similar to the 1300kN, this version improved the maximum load capacity, maintaining the other parameters.

This machine is suitable for cylinders up to 160x320 mm and cubes up to 150 mm side. Three systems are available with this load capacity, differing from each other by the inner free space in which place the sample. It can be provided with all the MATEST load measuring systems.

Two-channels computerised graphic display system to control and manage all sorts of semi-automatic testing machines, for acquisition, display, processing, printing and saving the test data and certificates, with software for remote control from PC.

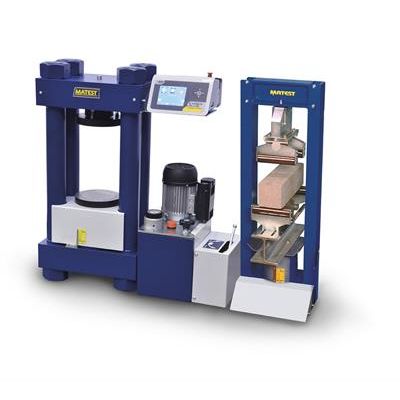

Series of flexural machine provided to be used in combination with another concrete/cement frame. With just one control unit together with an hydraulic system, two different frames can be managed. The additional combined frame is supplied complete with all devices required to let it work.

Series of cement machine provided to be used in combination with another concrete compressive/flexural frame. With just one control unit together with an hydraulic system, two different frames can be managed. The additional combined frame is supplied complete with all devices required to let it work.
