Matsushima Measure Tech Co.,Ltd. products

The Radar Level Transmitter is designed specitically for medium/long range measurement of all kinds of power,particle and bulk solids. The compact and high directional system with usage of higher frequency can reazlize the more stable level measurement. Adjustments can be done by entering simple parameters. The air purge function is normally integrated and there are many options such as angle adjustment for wider range of installation environments.

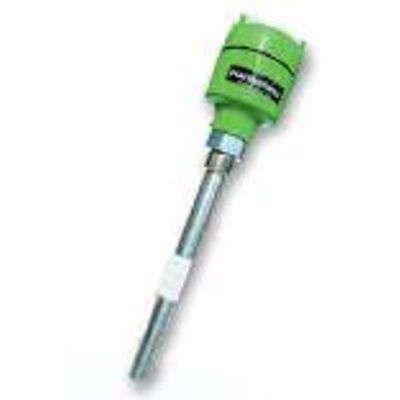

Vibrating level switch vibrates the probe with a certain frequency by the piezoelectric element, and monitors as constant amplitude voltage with electronic circuit. The amplitude voltage is substantially reduced as the probe is constrained by powder and granular materials. This switch detects this variation in the amplitude voltage and outputs the contact signal. It can be widely applied from fine powder to granular materials including grain as a storage level switch.

Dust Monitor continuously measures for 24 h the dust in exhaust gas at the secondary side of a dust collector or the like and outputs the alarm signal at the abnormal condition and monitors the relative variation of dust amount with an analog signal. It detects the triboelectric charge of dust hitting the sensor probe and make outputs relative to the dust amount. Dust Monitor can be easily mounted on the existing facility to facilitate environmental management.

Microwave Flow Switch, applying the principle of Doppler Effect, is a flow detection sensor for bulk solid/powder applicable to various application like flow monitoring of pneumatic feeding line, plugged chute detecton, etc... High performance in flow and plugged detection for dry powder. Hardly influenced by adhesion or dust because of high permeability microwave system. Self-diagnosis function automatically detecting decrease of sensitivity. Digital circuit system preventing set value from drifting. Withstanding pressure ability up to -980MPa～+980MPa internal- pressure in pipe.

Upper and Lower limit detection. Widely applicable for solid, liquid, slurry, etc.
