Mavag - GMM Pfaudler products

Filtration Technology- Mavaplate Filter

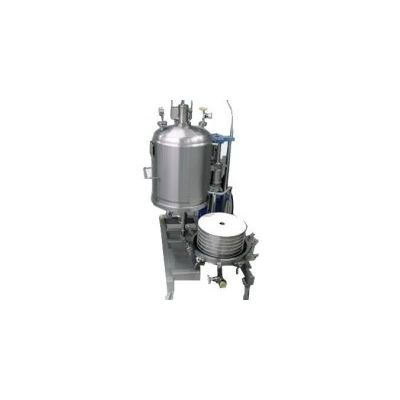

Mavaplate - Horizontal Plate Filter (Filter Stack Completely Removable)

To remove the idividual filter sheets, the complete filter nest is lifted out of the vessel. Simple design provides high operating safety. Used in the separation of suspensions with low solids content and in polisg operations. Static filter of enclosed modular design. Multiple-sheet filter with compact filter insert designed to accept typical commercially available filter sheets. The filter insert is lifted from the vessel as complete unit for the sheet-wise removal of the cake in an appropriate location. The straight-forward filter design without mechanical devices assures high reliability in operation. Its main application field is in the loss-free separation of solids as typically found in polishing operations.

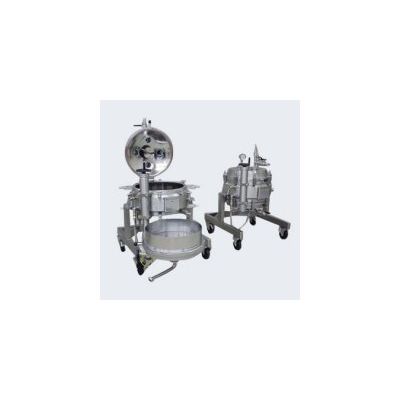

Mavaplate - Horizontal Plate Filter (Filter Stack Individually Removable)

Horizontal plate filter in mobile design, whereby the upper vessel section is lifted hydraulically and the filter plates are removed one by one. The individual plates can be handled without the need for a lifting device. A number of other options are also available.

Filtration Technology - Funda Centrifugal Disc Filter

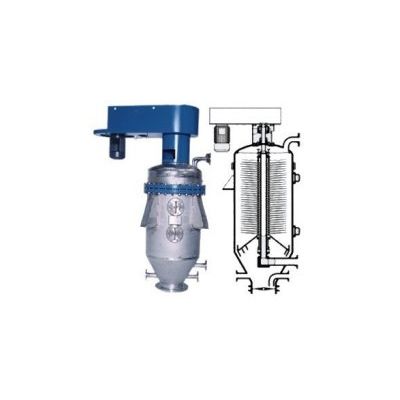

Funda - Model Type R - Cake Discharge Filter

For filtration with cake discharge and additional process steps(cake washing, extration,usw.) more.

Filtration Technology - Mavazwag Filter

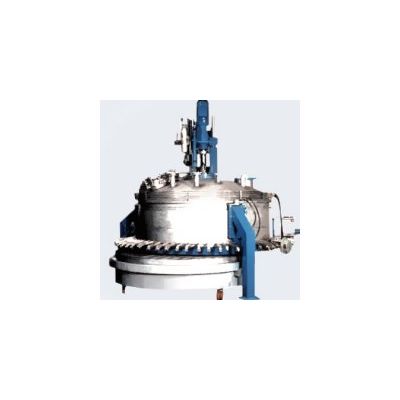

Mavazwag - Filter Dryer

Agitated pressure filter with heated vessel and agitator for optimum heat transfer, with dust filter, solvent recovery system, vacuum plant in a totally enclosed process step. Filter-Dryer sizes 0.15-10 m2

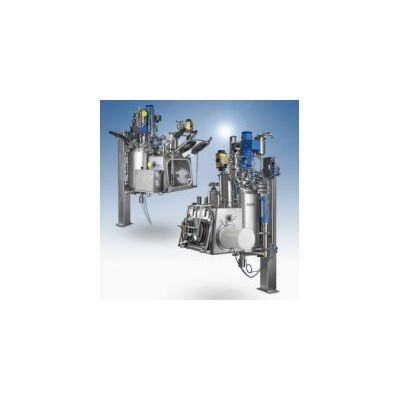

Mavazwag - Filter-Dryer with Isolator

Filter-dryer MOC 2.4602 for lab scale API production: Filter surface 0.15 m2 resp 0.25 m2, Filter bottom with quick-lock, for rapid exchange of the filter plate (multi-layer or cloth-streching ring) by lowering and swivelling out of the bottom.

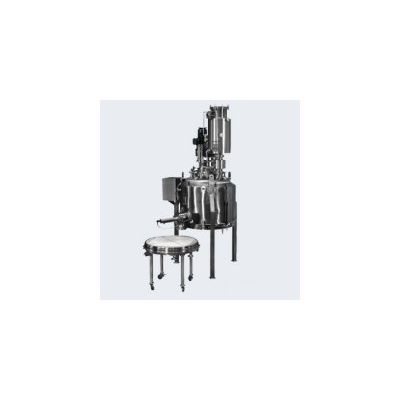

Mavazwag - Agitated Pressure Filter

Pressure filter with height-adjustable, reversable agitator for stirring, reslurrying, suspending of the solids and discharging of the filter cake. Well suited for intensive cake washing, extraction and solids separation with cake removal in a closed system. Filter sizes 0.15-15m2

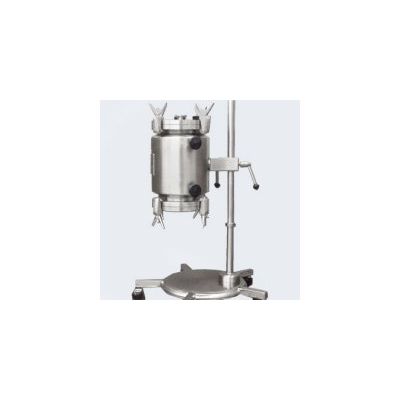

Mavazwag - Lab/Pilot Filter

Simple static filter for use in lab or pilot scale.

Mavazwag - Pressure Filter

Static single plate filter of simple design with manual cake discharge with drop down bottom and/or lifting top head

Agitator Technology

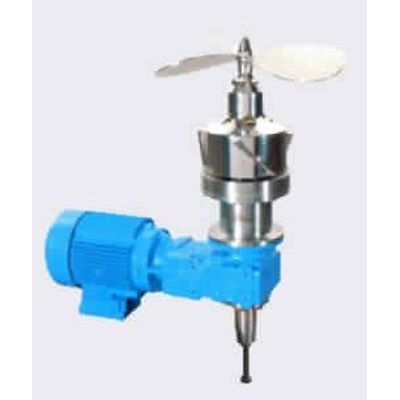

Mavag - Bottom and Top Entry Magnetic Agitators

Extensive experiance in the manufacturing of magnetic agitators Customer specific designs for optimal process results Extensive know how in sterile applications High internal quality standards Product developement through consistent research and product improvement
