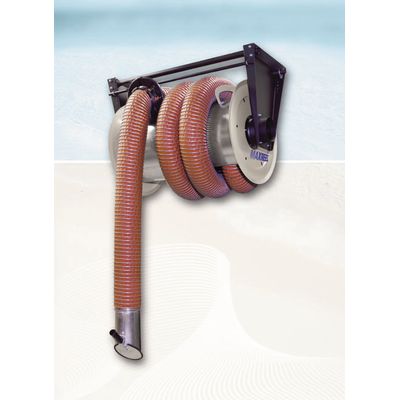

Car and truck maintenance facilities are often confronted with the presence of fumes and gases produced while the engines are running during tune-up or repairs. The MAXREEL fume extraction system is well adapted to capture the deadly pollutants emitted from combustion engines. Made of rugged rolled steel components, the MAXREEL recoils the flexible hose around the drum when not in use. A heavy duty dual spring pack with ratchet lock mechanism is located on the side of the reel. Optional motor driven reels with radio signal control is also available along with a fan mounted directly on the hose reels. A central fan can also be used for multiple reels installation. Fitted directly on the automobile tailpipe or truck stack, the different available nozzles can be made of steel, stainless steel, aluminum or rubber. Dependind on the application, hoses are available in 3’ (100 mm), 4’’ (100 mm), 5’’ (125 mm) and 6’’ (150 mm) diameters.

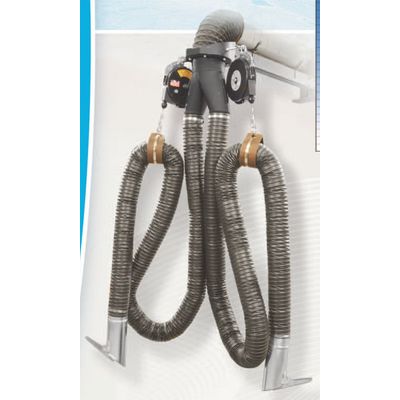

The MAXDROP hose drop system is an interesting alternative to hose reels. Designed to work with small cars right up to big diesel engines, MAXDROP assures that the hoses will not be crushed by workers or vehicles since they are lifted and secured by the balancer. The ratchet lock system on the balancer allows the hose to be pulled at the exact lenght required. Single, dual or fan equiped systems are also offered with different diameters, lenghts and temerature ratings of hoses. A variety of tailpipe adaptors is also offered depending on the application.

MAXBOOM pivoting extension booms are designed to increase the area of reach for source capture products such as the MAXFLO self supporting fume arms and vehicle exhaust equipment such as hose reels and hose drops. The extension booms aid in reaching points which are distant from a wall or other mounting areas. Extension booms can also be use to support items such as welding wire feeders or to undersling hoses or cables in conjunction with their primary function. The swivel section of the extension booms is made of rolled steel pipe. The top and bottom of the pipe is adapted to accept a fan or flanged duct connection. The extension beams are manufactured of heavy gauge steel tubing with a bearing swivel.

MAXREACH-BD pivoting extension boom is the offspring of the original MAXREACH extension swing boom but with Budget Design in mind. Made with rugged structural epoxy painted steel, the MAXREACH-BD may be fitted with our MAXFLO fume arms, MAXREEL or MAXDROP exhaust systems. Avalaible in 6” and 8” (150mm and 200mm) with a 15’ (4.6m) maximum reach, the MAXREACH-BD basic components are installed in very little time. The spiral duct on the horizontal beam reduces static pressure for better transport velocities.

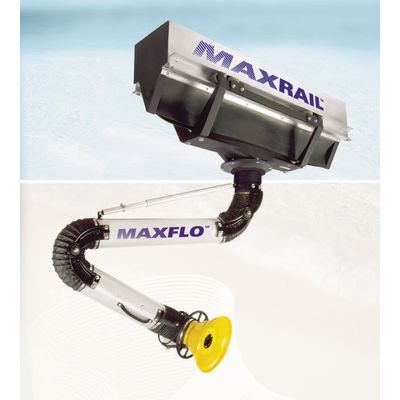

MAXRAIL sliding suction rail is designed to draw and remove smoke, gas and dust pollutants from working area. It can be fitted with one or more MAXFLO self-supporting fume arms, MAXREEL hose reels or MAXDROP hose drops for vehicle fume extraction. Multiple rail segments can be installed end to end with no limit as to the possible total length. The basic element of the duct is a 10’/3m segment. The sliding trolley travels easily on casters outside of the rail ensuring that the interior of the rail is smooth and with minimum static pressure. Rubber lips open and close as the trolley moves along the rail minimizing air loss. It’s aluminium construction allows minimum hanging weight. The MAXRAIL can be mounted on ceiling or wall supports. Mounting configurations may vary according to specific needs.

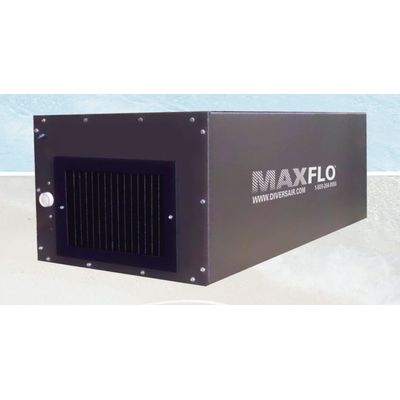

Economical way to improve air quality 65% to 85%. Helps meet or exceed OSHA standards. Recirculates clean air, eliminating the need for expensive make-up air. Low noise level, direct drive blower. Variable speed control. Reduces house keeping costs and improves productivity. Minimal installation required, ceiling or side wall mounted. Ships fully assembled, 1100 CFM.

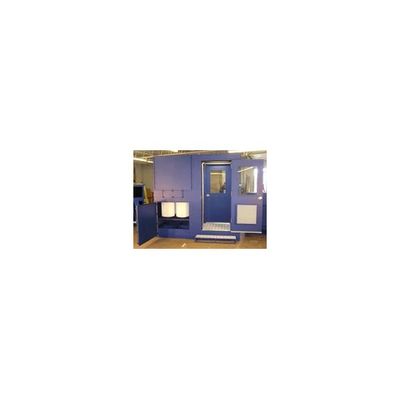

When moving from a dusty area to a clean zone, every worker can completely decontaminate in our self-contained blow off booth. Our booth dislodges and removes hazardous material that could potentially contaminate others in the clean environment. The high-velocity blow-off system gets even the hidden dust. The dust is then captured and filtered within the auto-clean self-contained booth. The booth can also be used to blow dust off equipment or pallets of material. Our booth can effectively remove potentially hazardous materials, including dust generated from hexavalent chromium, lead, beryllium, strontium chromate, and carcinogenic paint.

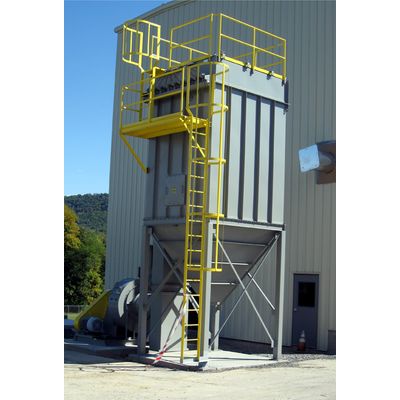

MAXFLO offers a full line of baghouse dust collectors to meet the needs of your specific operation. Baghouse dust collectors are ideally suited to capture dusts that are larger or more difficult to clean. Dusts that are high temperature or hygroscopic are better suited for collection in baghouse dust collectors. In addition, larger dust sizes (greater than 50 microns) and higher grain loadings (over 5 grains per cubic foot) are ideal for baghouse units.

Heavy duty construction 7 & 10 gauge steel. Quick ship available on 8 to 24 cartridge units and 5 to 30 HP motors/blowers. Digital controlled reverse pulse cleaning system. No internal cartridge support to interfere with filter cleaning system. Cam lock easy access filter door handle. Made in U.S.A.

Easy to Maneuver Low Profile Cabinet Design. Optional Dual Arms, HEPA, Carbon. Adsorption Module. 1 HP (800 CFM) and 1.5 HP (1200 CFM) Models. 250 Sq/ft Cartridge Filtration with. Hammer Pneumatic Cleaning System. Industrial Heavy Duty Plug & Play Design. Powder Coated Dark Gray. Quick Ship Available.
