MC Monitoring SA products

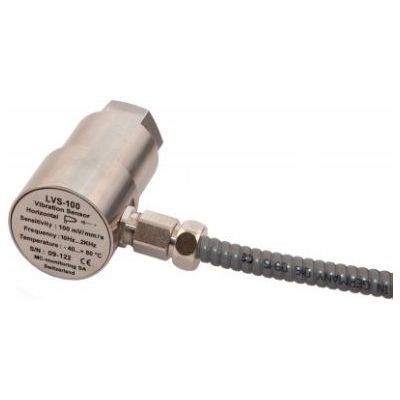

Electrodynamic velocity vibration sensor has been widely used in measuring the low frequency absolute vibration of machine bearing. In addition, the Electrodynamic velocity sensor can also be used for diagnostic purposes, providing solutions to problems that may develop on rotating machinery. Some of these problems include early shaft crack detection, shaft misalignment within the machine casing, rotor imbalance and abnormal bearing wear.

Fiberoptic sensor is one of the key products developed by MC-monitoring. With more than 10 years of field expertise and more than 200 machines equipped worldwide, MC-monitoring is a major player. FAS technology is patented since 2006 and is continuously improving for better stability in harsh environment.

RCP sensor tip protected by a sapphire to ensure excellent wear resistance against absrasive water.

8mm eddy current probe

11mm eddy current probe. Sensitivity: 3.94mV/um. Linear range: 0.40mm to 4.40mm. Frequency response: 0 to 3kHz. Standard lenght: 5 or 9m (1m sensor + 4m or 8m extension cable). Power supply: -23V to -30VDC.

PAS-101 and PAS-103 are available with the following configuration:

PVS-113 and PVS-111 are piezoelectric sensors with integrated electronic providing velocity output. PVS-113 sensor is designed with a side exit output with M12 mating connector. On request, a version with integral cable is also available. PVS-111 sensor is designed with top exit output available with integral cable or M12 mating connector.
