MCV, SA products
Atmospherical Products
MCV - Model CAV-A/mb - High Volume Air Sampler
High volume sampler for determination of suspended particle matter in inmision, with collection over filter and gravimetric determination at laboratory. Sampling system composed by an blower system with a centrifuge pump and electronic control of the system mounted on a polyester-fiber box and is suitable for open air installations, with a framework for sustenance. Operating, measure and flow regulation controlled by microprocessor. Automatic programmed flow control with automatic compensation of the wage loss due to filter flow resistance or fluctuations of the power supply. Normalized blow flow by correction of pressure and temperature. User’s communication interface via LCD graphic screen of 240 x 128.
MCV - Model CAV-A/Mmb - High Volume Automatic Sampler
High volume sampler for determination of suspended particle matter in inmision, with collection over filter and gravimetric determination at laboratory. Automatic sampling of 15 filters of diameter 150 mm. Sampling system composed by an blower system with a centrifuge pump and electronic control of the system mounted on a polyester-fiber box and is suitable for open air installations, with a framework for sustenance. Operating, measure and flow regulation controlled by microprocessor. Automatic programmed flow control with automatic compensation of the wage loss due to filter flow resistance or fluctuations of the power supply. Normalized blow flow by correction of pressure and temperature. User’s communication interface via LCD graphic screen of 240 x 128.
MCV - Model PM1025/UNE - Head for High Sampler PM10
PM1025-UNE head, for sampling suspended particulates lower than 10μm at a flowrate of 30 m3/h, build according to the European Norm (EN12341), with equivalence report from Instituto de Salud Carlos III (ISCIII). Suitable for High Volume Sample CAV-A. (Manufactured by MCV, SA since 1998)
MCV - Model PM1025/UNE - Head for High Volume Sampler PM2,5
Head for lower than 2.5µ suspended particulates sample. Suitable for a high volume sampler that could be set for a flow rate of 30 m3/h. Manufactured according to UNE-EN 14907 Norm, Environmental air quality. Gravimetric method fos masic PM2,5 fraction determination of suspended particulate matter, for HVS high volume sampler conditions.
MCV - Model PM1-CAV - Particles Suction Head
HEAD PM1-CAV, with selection of particles of a size lower to 1 µm at 30 m3/h, suitable for working with high volume samplers CAV. This is an experimental head because there is no reference standards, made from the specifications of the UNE-EN 14907 "Air quality environment. Gravimetric method for determining the mass fraction of PM2,5 particulate matter in suspension", the conditions for high-volume sampling HVS, incorporating a camera and impaction plate nozzles for PM1.
MCV - Model Type PST-15 - Circular Filter Holder
Filter holder for 15 cm Ø diameter, for sampling TSP.
Meteorological Products
MCV - Model EM-200 - Automatic Weather Station
Automatic weather station MCV EM-200, new version, improved and upgraded from EM-100 type
Unit for concentration and analysis of data from even 14 meteorological sensors in the following conditions:
MCV - Model SDV-01 (DOGVANE) - Wind Direction Sensor
Double potentiometer in tandem without dead angle. Range: from 0 to 359. Precision: ±1°. Resolution: 1°. Linearity: 0,5%. Threshold: 0,2 m/s. Output signal: Resistence.
MCV - Model EM-07/P - Portable Automatic Weather Station
Portable automatic weather station mounted on waterproof box to work at open air.
Radars

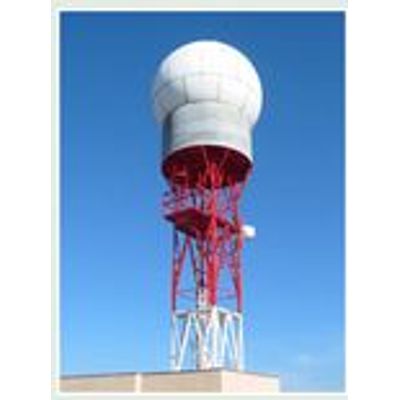

MCV - C-Band Meteorological Radar
C-band meteorological radar based on TWT systems, fully integrated by MCV from parts of Applied Systems, Orbit GTS, Ratech and Sigmet.
