M.D.S. Meyer GmbH products

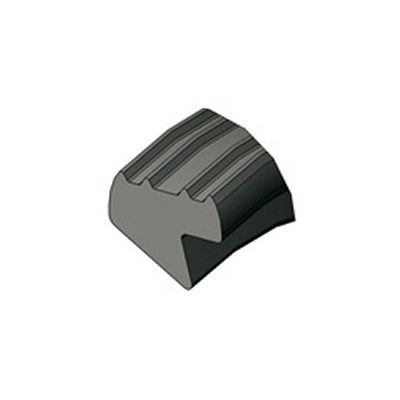

Sealing Systems- Standard Lip Seals

MDS - Model MD-U - Standard Lip Seals System

According to EN 1401 and 1451. Dimension: DN 40 - DN 110 mm. Material: EPDM according to EN 681-1. Symmetrical profile allows installation in both directions.

MDS - Model MD-S - Standard Lip Seals System

According to EN 1401 and 1451. Dimension: DN 32 DN 500 mm. Material: SBR / NR or EPDM according to EN 681-1.

Sealing Systems- Fix Inserted Lip Seals

MDS - Model MD-Safe - Fix Inserted Lip Seals System

According to EN 1401 and 1451. Dimension: DN 110 DN 315 mm. Material: EPDM / PP according to EN 681-1, Reinforced plastic ring, Co-injected for DN 50, 75, 110.

MDS - Model MD-4 - Fix Inserted Lip Seals System

According to EN 1401 and 1451. Dimension: DN 50 DN 110 mm. Material: SBR / NR or EPDM according to EN 681-1. 4-lip-seal, Reinforced plastic ring.

Seals for Corrugated Pipes

MDS - Model MD-W - Seals for Corrugated Pipes System

According to EN 13476. Dimension: DN 63 - DN 1200 mm. Material: EPDM according to EN 681-1. Symmetric profile.

MDS - Model MD-G - Seals for Corrugated Pipes System

According to EN 13476. Dimension: DN 63 - DN 1200 mm. Material: EPDM according to EN 681-1. Symmetric profile.

Fitting Systems

MDS - Corrugated Pipe Saddle

The assembly kit includes: A 1 x Plastic part, B 1 x Rubber part, C 1 x Inner-pipe (pipe-end), D 4 x TORX-counter-sunk-bolt M5x30mm, E 4 x TORX-counter-sunk-bolt M6x90m.

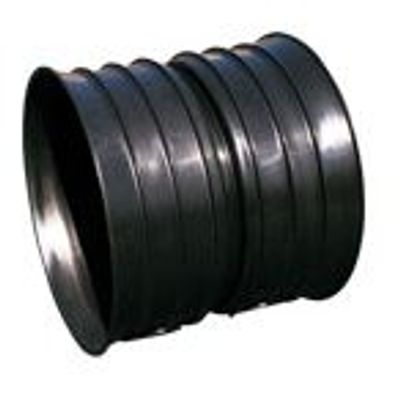

Double Socket for Drainage Pipes

DN / ID 200, DN / ID 250, DN / ID 300, DN / ID 400, DN / ID 500, DN / ID 600.

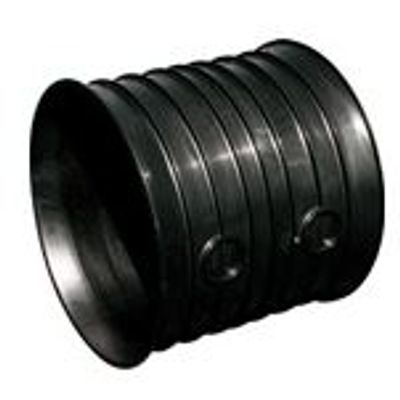

Sleeve Socket for Pipes

DN / ID 200, DN / ID 250, DN / ID 300, DN / ID 400, DN / ID 500, DN / ID 600.

Others

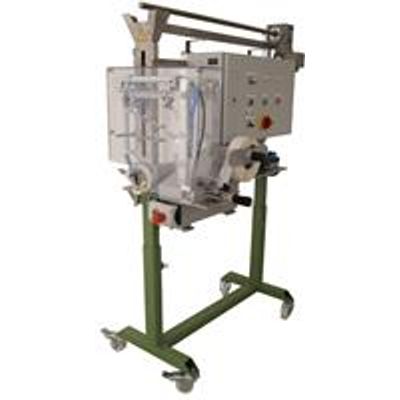

Automatic Ring-Fixing-Device for Pipes and Fittings

Compact Design. Dimension DN 32 - DM 200. Mobile and stationary (for hand and robot application). Optional with label printer. Low cyclus (less than 1 sec.). Different upgrades. Standard components (Siemens, Festo). For standard lip-seals and for locked systems.
