Mecan-Hydro products

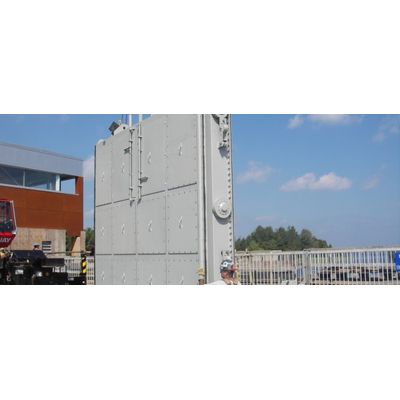

Roller gates are typically used for Gravity/Emergency closure and where waterways are too large to efficiently use slide gates. The rollers (wheels) are mounted on shafts fixed laterally to the leaf on vertical girders have double functions: reduce the friction forces and transmit the water load to the embedded parts. Upstream sealing is preferred to reduce downpull loads, to permit venting through the roller gate upstream gap and to facilitate access to penstocks and tunnels. Downstream sealing uses the water loads to compress the joints and enhance sealing.

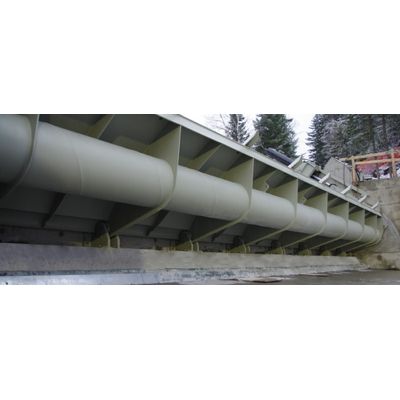

It consists of a straight or curved retaining surface, pivoted on a fixed axis at the sill.. Flap gates are also used on top of segment gates and fixed-wheel gates.

Bulkhead gates are primarily used for dewatering and maintenance. Depending on the height to be sealed, it may include more than one section. Multiple section bulkheads are usually called stoplogs.

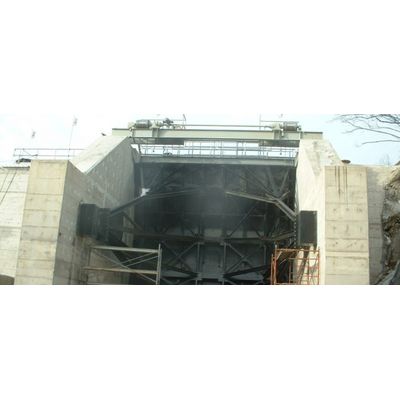

The radial gate consists of a skin plate which is formed into a circular segment that rotates on a pivot. The water load passes through radials arms and through trunnion pins, resulting in no unbalanced moment to be overcome when hoisting the gate. Used on large waterway passages where the presence of lifting gates is impossible.

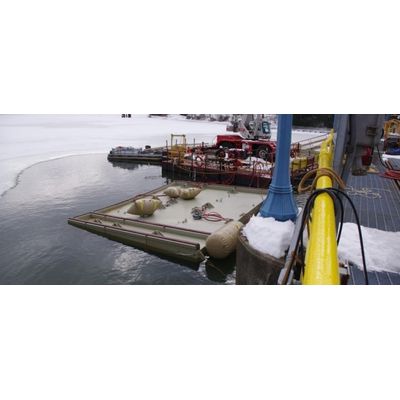

A floating bulkhead is used to dewater spillway gates or power plant intakes where inaccessibility prevents the use of a conventional bulkhead gate. It consists of individual floating sections positioned using a boat or barge that are then filled with water as needed to lower the gate in place in the opening. For removal, the gate is filled with air to evacuate the water allowing the gate to reach the surface.

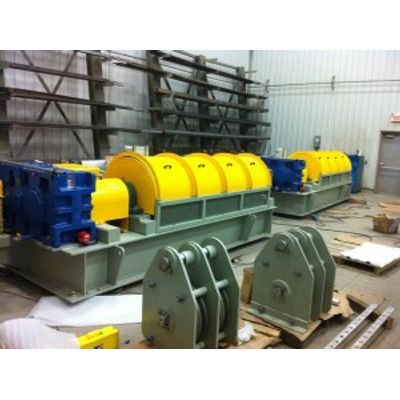

Wire rope hoist are used exclusively in facilities where the gate closure is performed by gravity (No downward force) and where extensive lifting height is excluding other systems.

Singular or dual operation hydraulic cylinders operated by a hydraulic power unit (HPU) to actuate gates.

Gearbox actuating a vertical threaded stem. Basically used on short stroke applications. Allows upward and downward forces.

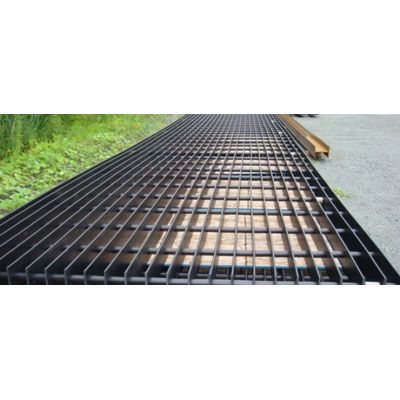

Thermoplastic blades (HMWPE – high molecular weight polyethylene specially compounded to withstand ozone and ultra violet) are held together by stainless steel or galvanized tie rods, nuts and lock washers.

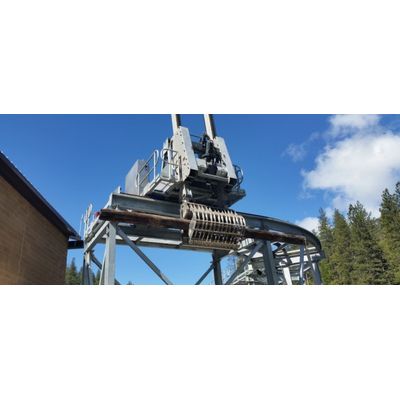

Mecan-Hydro’s trash rake system is designed to remove any debris that accumulates on trash racks. By cleaning clogged racks, trash rakes reduce head differential and improve your short-term investment return by improving power generation. Mecan-Hydro rakes vary in size to accommodate a variety of debris sizes and intake configurations. Mecan-Hydro’s unit is capable of being operated in manual or fully automated mode.
