MecVel srl products

Linear Actuators

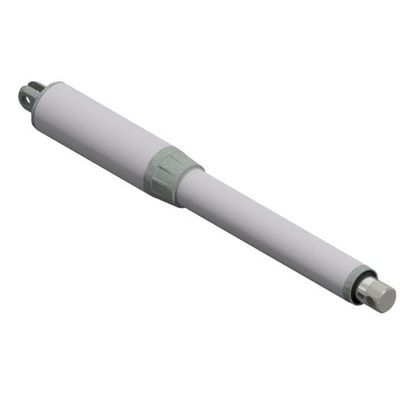

MecVel - Linear Actuator

Three phase or single phase motor. Worm gearbox. Acme lead screw or ballscrew. Aluminum push rod (stainless steel on request). Permanent grease lubrication. IP 65, tested according to rule CEI EN 60529. Working temperature range -10° C +60 °C. Intermittent duty S3 30% (5 min) a 30° C.

MecVel - Linear Actuator

Three phase or single phase motor. Double worm gearbox. Acme lead screw or ballscrew. Aluminum push rod (stainless steel on request). Permanent grease lubrication. IP 65, tested according to rule CEI EN 60529. Working temperature range -10° C +60 °C. Intermittent duty S3 30% (5 min) a 30° C. Encoder and/or limit switches on request.

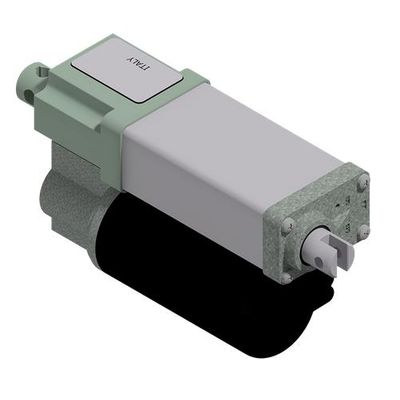

MecVel - Linear Actuator

Permanent magnet motor. Planetary gearbox. Acme lead screw or ballscrew. Chrome plated steel push rod. Permanent grease lubrication. IP 65, tested according to rule CEI EN 60529. Working temperature range -10° C +60 °C. Intermittent duty S3 30% (5 min) a 30° C. Encoder and/or limit switches on request.
