Memsys Water Technologies GmbH products

The MDS 500 is modular and consists out of one module set. The system can be supplied in a standard 20/40 foot container or in separate kits.

The MDS 1000 is modular and consists of two module sets. The system can be supplied in a standard 20/40 foot container or in separate kits.

The MDS 2000 is modular and consists of four module sets. The system will be supplied in separate kits.

Besides standard system, Memsys also provides customized system and takes industrial project (EPC/BOT) with capacity 50 ~ 1000 ton/day production.

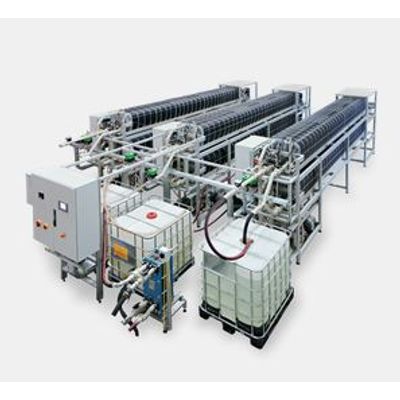

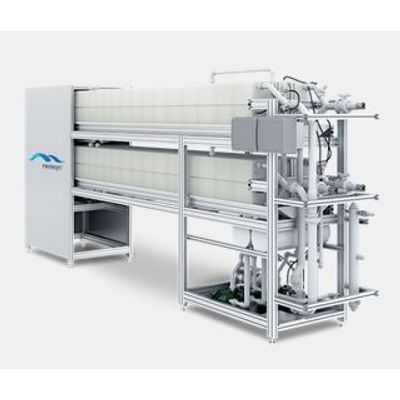

The memsys technology is based on vacuum multi effect membrane distillation, which is a highly efficient thermal process for thermal separations in a modular concept. These memsys modules consist of flat sheet membranes combined with an innovative plate and frame design made of Polypropylene. The patented construction allows to form all functionalities for the process and therefore transforms traditional heavy industry engineering into a unique monolithic industrial design.

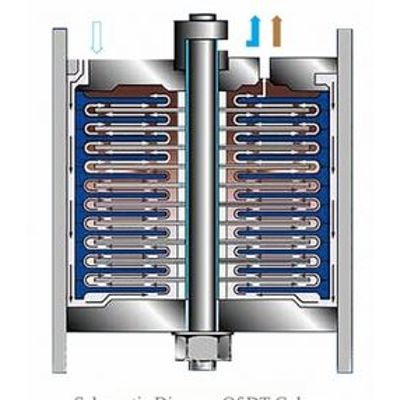

Disk tubular (DT) is a patented membrane technology commonly with three types: DTRO (DT Reverse Osmosis), DTNF (DT Nanofiltration) and DTUF (DT Ultrafiltration). DT membrane modules are specially designed for high concentration wastewater treatment (such as landfill leachate) with excellent stability and high performance. The permeate water from DT modules can easily fulfill the stringent discharge requirement. Our DT product have been widely and successfully applied to the wastewater treatment industries globally.

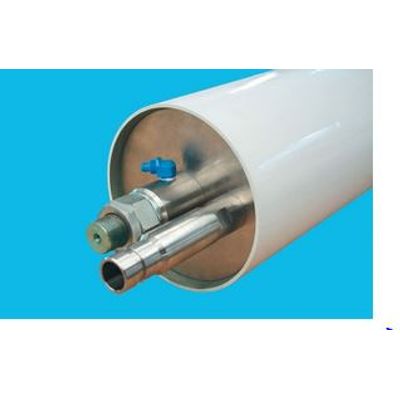

DTL is a new generation spiral-wound membrane module with better anti-fouling performance, which is developed for large scale and high salinity wastewater treatment. The flow channels in DTL membrane module are designed with unique spacer structure to reach optimal flow distribution and improve permeability.
