Metabronze products

SPS TRUFLO 100mm RWO with Class D Heavy Duty Flat Grate.

SPS TRUFLO 150mm RWO with Class D Heavy Duty Flat Grate.

Compac Clamtite Push In Dome Grate Rainwater Outlet.

Superflow Clamtite Push In Dome Grate Rainwater Outlet.

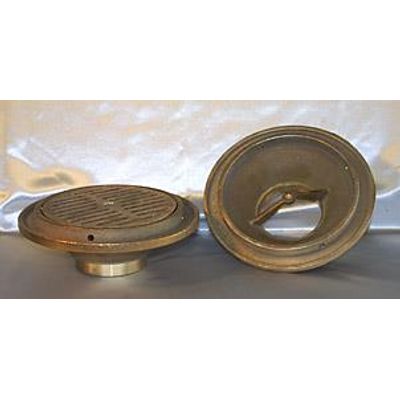

The flat grate Truflo rainwater outlet is available in cast bronze and cast iron. Bronze is suitable for fitting to PVC pipe, or for brazing to copper. Cast iron is only suitable for fitting to PVC pipe. The Truflo and Superflo are both suitable for use with or without a waterproof membrane. Dome grates are also available. Suggested application (Flat grate) – Car park decks, plant rooms, pedestrian precincts.

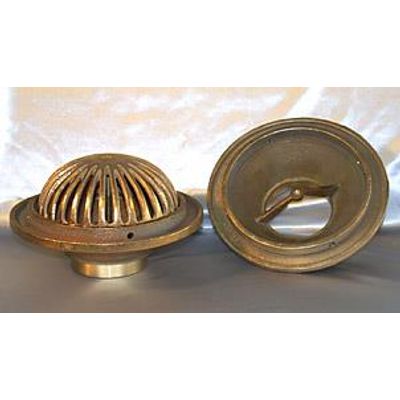

The domed Truflo rainwater outlet is available in cast bronze and cast iron. Bronze is suitable for fitting to PVC pipe, or for brazing to copper. Cast iron is only suitable for fitting to PVC pipe. The Truflo and Superflo are both suitable for use with or without a waterproof membrane. Flat grates are also available. Suggested application (Dome grate) – Roof tops.

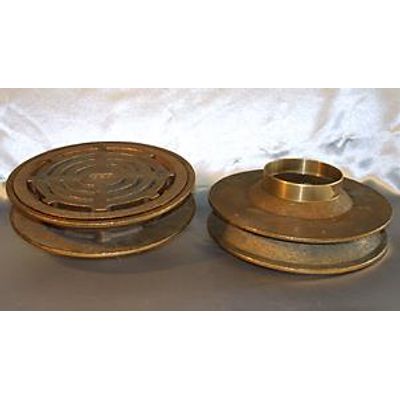

Cast bronze floor or roof outlet with non-tilt heavy duty grate for vertical discharge. Bronze is suitable for fitting to PVC pipe, or for brazing to copper. Also available in a dome grate.

Cast bronze floor or roof outlet with non-tilt heavy duty grate for vertical discharge. Bronze is suitable for fitting to PVC pipe, or for brazing to copper. Also available in a flat grate.

The 300mm square Storm Water Drain unit can be supplied in either bronze, nickel bronze or high tensile strength aluminum bronze. Typical applications would be for use in podium areas and landscape or paved areas where water runoff is connected to mains drainage.

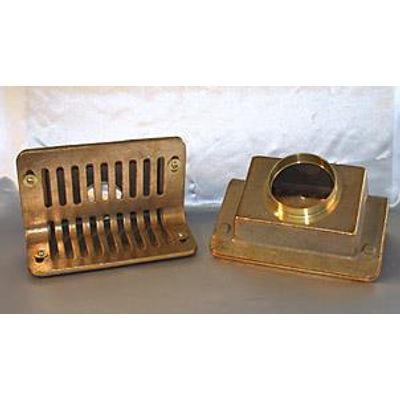

The “Parapet” or “Scupper” drain is suitable for use either for horizontal or vertical discharge from parapet walls. This unit can be used either with or without a waterproof membrane. Available in either cast bronze or cast iron. The cast iron option is only suitable for fitting to PVC pipe.
