Soil Temperature

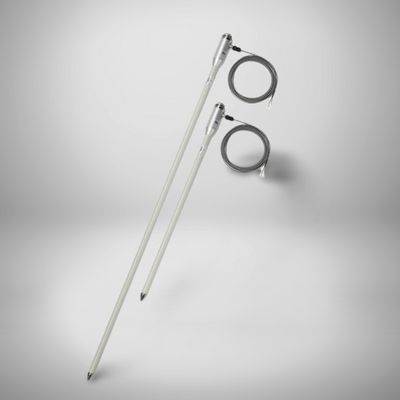

Delta Ohm - TP32MTT.03 Soil Temperature Probes

A soil temperature probe, such as the TP32MTT.03, is a device used to measure the temperature of soil at various depths. The TP32MTT.03 is a type of thermistor probe, which uses a thermistor (a type of resistor that changes resistance with temperature) to measure soil temperature. The TP32MTT.03 probe is designed for use in a variety of soil types and has a measurement range of -40 to +85 degrees Celsius. It is constructed with a stainless steel housing and cable, and is waterproof, allowing it to withstand harsh environmental conditions. Temperature measurement at 7 levels (TP32MTT.03) or 6 levels (TP32MTT.03.1) used is Agriculture , Geothermic studies Measurand: Soil Temperature Sensor Type: Pt100 1/3 DIN Signal Output: RS485 digital output Supplied With: Factory test/ Calibration Certificates..

Hukseflux - STP01 Soil Temperature Sensor

STP01 soil temperature profile sensor offers an accurate temperature difference measurement at five measurement locations at 0.02, 0.05, 0.1, 0.2, and 0.5 m below the soil surface. It also has a well-specified and fixed distance between the measurement locations. STP01 contains 5 matched thermocouples, at locations A to E in Figure 5, and one reference temperature sensor (Pt100 type) at location E at 0.5 m depth. By having the reference temperature measurement in the sensor and only measuring differential thermocouple voltages (relative to the reference at 0.5 m), the uncertainty of the temperature difference measurement is very low: ± 0.02 °C is attainable. Simple copper-conductor signal wire is used in STP01’s cable. As an extra, a heating wire is incorporated in STP01. Analysis of the temperature change during the heating interval serves as a self-test. STP01 accurately measures the temperature profile of the soil at 5 depths close to its surface.
