Metron-Farnier, LLC products

Extreme Low-Flow Sensitivity 1/30th to 20 GPM. Accurate measurement down to 1/30th gpm (.033 gpm). Starting operation less than 1/100th gpm. Equally accurate in vertical installations. Excellent resistance to sand or small debris in the line. Lightweight and tough composite meter body. 10-year full materials and workmanship warranty. Quiet operation.

With Daily Cellular Reading: Daily Web-Based Reading and Billing Interface through the existing Verizon Wireless network. No more off-route or “traveling meter” manual readings. Readings accessed on Water Scope Analytics cloud based website or mobile app. No monthly or annual cellular charges. No waiting for contractor call ins. Available GPS locater.

Venturi Inlet (Single Jet) – The Venturi inlet conditions the water into a jet directing the flow and force of water towards the tips of the impeller. This gives single jet meters the following advantages over traditional meters: Allows the meter to be installed without any straight pipe in front or behind the meter. Takes force off the bearing and shaft transferring the energy or force of the water to the tips of the impeller dramatically improving low flow accuracy and bearing wear. Debris passes by the impeller without jamming the meter or dramatically wearing the impeller.

C712 Compliant Single-Jet Meters. NSF 61/372 Lead-Free Brass. Lightweight and Compact. Wide Range. Extreme Low-Flow Accuracy. Low Maintenance. No straight pipe requirements. Extremely durable in adverse conditions. Cost & Performance advantages over compounds, turbines and static meters.

C712 Compliant Single-Jet Meters. NSF 61/372 Lead-Free Brass. Lightweight and Compact. Wide Range. Extreme Low-Flow Accuracy. Low Maintenance. No straight pipe requirements. Extremely durable in adverse conditions. Cost & Performance advantages over displacement, turbines and static meters.

C712 Compliant Single-Jet Meters. NSF 61/372 Lead-Free Brass. Lightweight and Compact. Wide Range. Extreme Low-Flow Accuracy. Low Maintenance. No straight pipe requirements. Extremely durable in adverse conditions. Cost & Performance advantages over displacement, turbines and static meters.

Annular Single-Jet Meters. NSF 61/372 Lead-Free Brass. Lightweight and Compact. Wide Range & Superior Low-Flow Accuracy. Extreme Low-Flow Accuracy. Low Maintenance. No straight pipe requirements. Extremely durable in adverse conditions. Cost & Performance advantages over compounds, turbines and static meters.

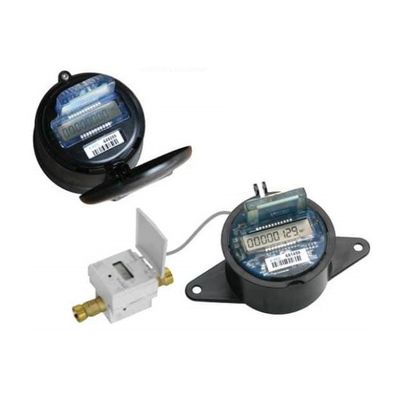

100% Electronic Register. Single, configurable model for all compatible water meters. Replaces common mechanical registers on displacement, multi-jet, turbine. and compound meters. Completely submersible for indoor and outdoor installations. No-drag magnetic sensor. 3-Wire AMR Output. Pulse and SCADA Output. Embedded AMR Radio and Cellular AMI options.

The VN System is a smart water metering system which delivers intelligent data for a wide variety of applications beyond billing reads and basic analytics. Your utility will benefit from the technologies of two of the world’s most established and successful technology companies: Verizon Wireless and Microsoft. Transparent Technologies, along with these industry giants, delivers the most advanced smart water meter system in the industry.

G2 Mobile is an advanced mobile AMR system that can provide billing data, consumption flags and high-resolution datalogging. These features deliver data and functionality comparable to most common AMI systems today. The scalable G2 Mobile System is a low-cost entry in AMR technology and is compatible with Metron’s water, gas and electric radio endpoints. Streamers and repeaters are available for system optimization and submetering. The radio endpoints log consumption every 5 minutes and provide extensive pre-processing of this data to identify common patters such as leaks, irrigation, backflow, etc. The endpoints can also deliver high-resolution datalogs analysis and customer service.
