Micro Sensor Co., Ltd. products

The MPM281 series offers a high-stable piezoresistive pressure sensor tailored for precision measurements across various industrial and medical fields. This OEM pressure element features a robust 316L stainless steel construction, ensuring durability in harsh environments. Utilizing advanced diffused silicon technology, the sensor provides exceptional sensitivity and enables precise pressure-to-electrical signal conversion. With its broad temperature compensation range from -10? to 80?, the MPM281 is apt for conditions with significant temperature fluctuations, such as outdoor oil field applications. Its long-term stability is assured with an accuracy of ±0.2% FS/year, making it ideal for use in petrochemical monitoring, inkjet printing, and flow compensation. Its design supports multi-medium measurements, catering to the demands of process automation and medical equipment.

The MDM390 differential pressure transducer is manufactured in an all-welded housing with G1/4 female threads. The static pressure transmitter is OEM type with max. static pressure 200bar. MDM390 is cable-connected and supplied with a constant-current power supply. It offers small size, precise performance, all-solid-state insulation, and high stability, reliability, and accuracy. The vacuum pressure transducer is also suitable for vacuum atmospheric, medical device and HVAC.

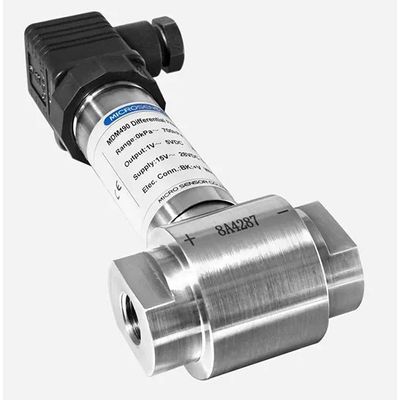

The sensing element of MDM490 is a diffused silicon piezoresistive differential pressure sensor with a stainless steel 316L isolation diaphragm. The reliable performance of the DP sensor is due to temperature compensation and aging screening. It enables zero and full scale to be adjusted externally. MDM490 has obtained CE and RoHS certifications.MDM490 DP transmitter is used for various gas and liquids differential  pressure measurements of the pipeline, cylinder, bulk, and micro bulk.

MDM4901FL differential pressure transmitter is designed for oxygen pressure measurement. MDM4901FL gas pressure transducer is filled with fluorine oil inside. After being cleaned through a special process, the product meets the conditions of oxygen measurement and oil-free body. High accuracy and high stability cryogenic pressure transducer for oxygen measurement solves the problem of measuring gas differential pressure in industrial oxygen vertical/horizontal storage tanks.

MDM492 differential pressure transmitter is specially used for measuring very low pressure in boiler, vintage and engine applications (gas or non-conductive liquid). It is based on piezoresistive measurement principle and has 3 main pressure ranges, but within these ranges, others could be also achieved by enlarging or shrinking standard pressure range (overpressure unavailable). Combined with a high-performance circuit, this model outputs a 4-20mA analogue signal, which enables the direct connection to control or monitoring system. The compact design makes it easy for site installation.

MDM491 differential pressure transducer is a silicon oil-filled full stainless steel structure design pressure measurement sensor. The piezoresistive effect of semiconductor silicon material can realize the conversion of differential pressure and electrical signal. MDM491 is more suitable for low pressure differential measurement of various gases and liquids in petroleum, chemical, electric power, hydrological and other pipelines. The diaphragm pressure transducer can measure the maximum low pressure differential value of 20bar. MDM491 connector type supports external adjustment of zero point and full scale. MicroSensor`s temperature compensation and aging screening processes ensure the stable performance of differential pressure products.

The MPM430 low range pressure transmitter is designed for low pressure measurements. The low pressure sensor offers two pressure port configurations to choose from, general and non-cavity, with a large contact area between the sensing diaphragm and the medium. The low pressure transducer adopts high-performance ceramic pressure sensor and fully sealed stainless steel structure. Compact size and reliable performance.

The MPM489 ATEX Explosion-Proof Pressure Transmitter is engineered for robust performance in various industrial environments. It integrates piezoresistive pressure sensor technology to ensure precise linearity, repeatability, and hysteresis. The transmitter is enclosed in a high-strength stainless steel housing, offering excellent resistance against EMI and protection against transient high-pressure surges, noise, or electrical pulses. The MPM489 operates reliably in harsh settings, delivering stable, accurate readings. It comes with standard output configurations such as 4mA~20mA DC, 0-5/10V DC, among others, and accommodates a diverse array of process and electrical connections. The unit serves critical roles in hydraulic and pneumatic systems, mechanical manufacturing, and electrical industries, ensuring precise measurement in hazardous areas.It boasts certifications including ATEX, CE, RoHS, and approvals from CCS, ABS, and DNV, guaranteeing its deployment in rigorous applications.

The MDM290 differential pressure sensor is piezoresistive and oil-filled type, isolated by a stainless steel corrugated diaphragm. As differential pressure sensor suppliers, Micro Sensor`s pressure-sensitive components are assembled on advanced production lines, automatically tested and compensated by computer. The high and low-voltage ends are protected by isolation diaphragms. Both pressure chambers can be in contact with certain corrosive fluid media. The installation dimensions align with typical products, ensuring that the MDM290 sensor offers excellent interchangeability. MDM290 can be as an air differential pressure sensor for different gases. It is widely used in industrial process control and other fields to measure differential pressure.

MDM291 water differential pressure sensor is a fully welded sensor. The product has undergone automatic testing and temperature compensation process in the production process, so that the product has good temperature characteristics. MDM291 selects silicon chips with high precision and high stability. The measured differential pressure is transmitted to the sensitive chip through the pressure port, the isolation diaphragm and the filled silicone oil. This achieves a linear conversion of the differential pressure and output voltage signals. The high and low voltage ends of MDM291 are protected by isolation diaphragms. Both pressure chambers can be in contact with corrosive and conductive fluid media. The electrical connection and the high and low voltage terminals adopt threaded interface, which is convenient for assembly and installation.
