Micro Support Co.,Ltd products

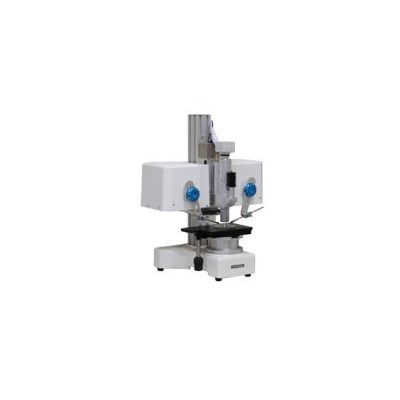

It is a micro sampling machine that achieved a seamless, preeminent convenience by fusing an efficient microscope and each highly accurate manipulator by a consistent design. The operator can easily operate it whether to have done the minute particle control of about 5μm with a tool reserves only in the place where the PC mouse is operated. Moreover, the gathered minute object can surely be released to the analysis disk on the delivery stage with the state observed with the unassisted eye. It corresponds to most disks like the specimen support (carbon tape) for the disk (Kbr･Au mirror diamond cell) for FTIR and the inorganic analysis etc. Moreover, the repetition work of a minute object can be done without the stress by the design that doesn`t cause a human error on both sides of hard software easily. As a result, it can challenge sampling that has been given up up to now, too.

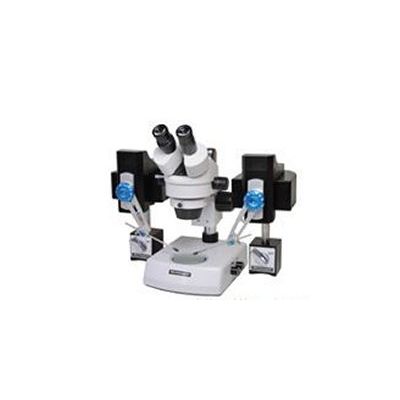

The work done by the hand can be done surprisingly easily, and work is not tired for a long time either. Because the XYZ three-axes operation can be done with the PC mouse, there is no blurring, and an exact operation can be done. It quickly takes out to use it, and a microscope on hand, the stereomicroscope, and the metallurgical microscope, etc. can be used soon by sideways putting it because it operates without the personal computer. Precise cutting that installs cutting attachment `Milling Pro`(MIL-1), Holding collection that installs `Micro Tweezers`(MTW-1) is possible to do freely. The content of work, the purpose, and frequency, etc. can use it best because it can use it by freely combining with a right and left right hand and the both arms.

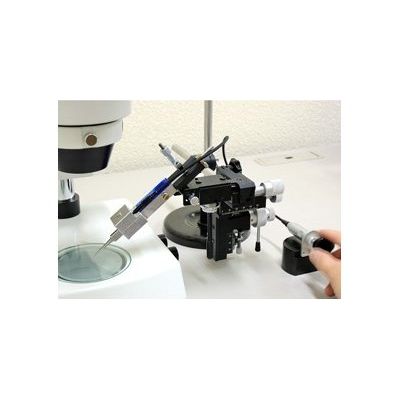

It is a cutting attachment developed so that everyone may cut the foreign body buried in the resin etc. that are difficult up to now and given up in a short time.2μm to 300μm according to the installation on the micromanipulator made of our company and use. It is possible to cut with the foreign body that had been buried in the depth of about 300μm checked visually on the monitor, too. The control of the cutting area and the cutting depth is free according to the selection of the special cutting tool of the attachment according to the object. It is possible to use it not only the resin but also to cut the glass silicon wafer, an iron system metal, nonferrous metals, and the rock, etc.

It is a micro tool to do the holding collection easily as for minute object (20μm or more).This is the best, the foreign body that adheres to the adhesive is gripped, and pull a fibroid object and to the raised usage. It is possible to operate it by setting it in micro sampling machine `AxisPro` and hand work support manipulator `QuickJoy`. Because the exclusive use and precise tweezers can be easily detached, the cleaning of an up-to-date chip is also easy.

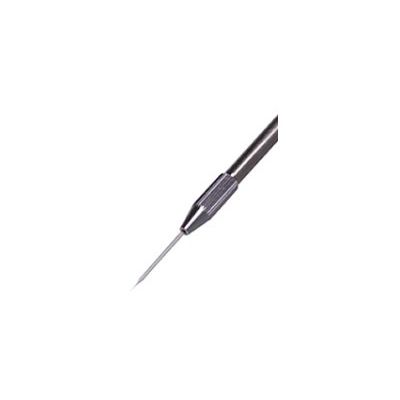

They are glass Micro Pipettes, Micro Sampling Tools and Micro Press Tools.The pipette (5, 10, 20μm) can perform adsorption and movement of a sample with Vacuum Adsorption Tool Set, or can perform suction and dropping of a solvent by Microinjector.If Vacuum Adsorption Tool Set is used, foreign substance and the spherical foreign substance of a fiber type with a difficult pickup can perform the positive sampling without fear of loss.Micro Sampling Tool with tip inside diameter 2μm is used for the liftout of the thin piece which carried out FIB processing. By using together micropipettes (tip inside diameter 5μm), and carrying out both-arms operation by micro manipulator, the strike rate of lift out is markedly alike, and improves.

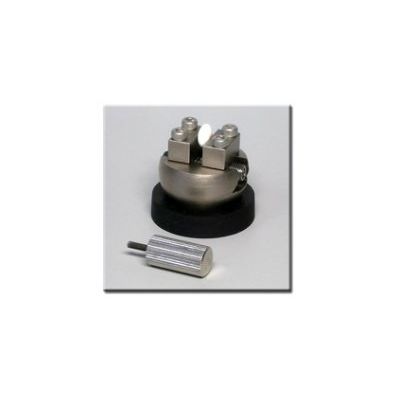

Also after fixing a sample, it is the spherical vice which can change a vice-angle briskly.Since a base made from rubber, the fixation stable at arbitrary angles is possible for it. Since a vice-opening-and-closing handle is a removal type, it becomes very compact at the time of use.

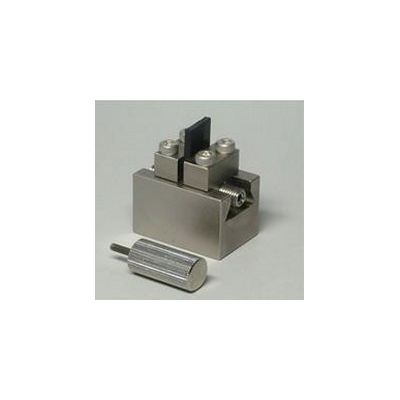

Since it is cube form, fixation of the level or perpendicular can be performed simply.It is the compact size which can be used even if it fixes to large-sized vice.Since a vice-opening-and-closing handle is a removal type, it becomes very compact at the time of use.
