Microfilt India Pvt. Ltd. products

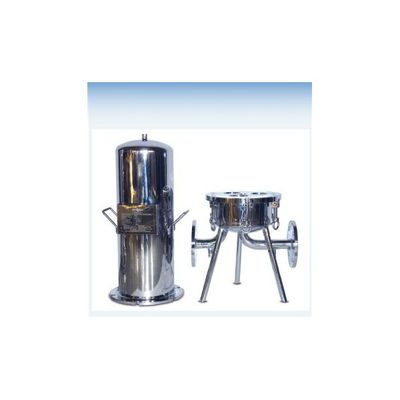

MICROFILT bag filter housings are designed for varied filtration processes ranging from pharmaceuticals to paints. They are designed for heavy duty with side or top entry for easy connections. The swing bolt design enables quick access to the filter bags enabling easy removal and installation. Designed to suit various flow rates, the bag filters come in various models ranging to accommodate single or multiple bags. Bag filter housings are cost-effectively designed to cater needs with various MOC. Bags are easily removable with cake to enable disposable or recovery and also provide quick opening and closing of the dome hence less labour. MICROBAGS are also available which is the most economical filtration media for filtration of most of fluid including highly viscous fluids like oil & fluids with high levels of solid content. Housings can accommodate 1-5 bags or more of bags of Size 1 and Size 2.

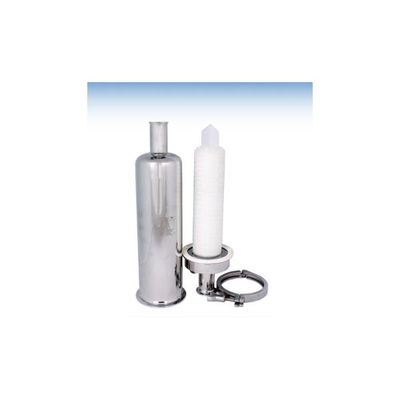

Special T-Line housings are designed for sanitary and non-sanitary range of air and gas filtration applications. The housings are made of high quality SS316L stainless steel (for Pharma / biotech applications) and other suitable MOC as required, to be compatible with the contact fluid. Housings come with gaskets and O-rings compounded only from FDA approved materials. The housing can also be provided with a choice of sanitary and non-sanitary vent and drain valve options. The Inlet and outlet end connections are either flanged or standard triclamp connections. The housing can fit one single cartridge of multiple lengths to suit required flow rates.

MICROBAG Filter bags are the most economical filtration media for filtration of highly viscous fluids like oil and for fluids with high levels of solid content. MICROBAG has high surface area and dirt holding capacity .MICROBAG filters are fabricated using high dirt holding media that provides consistent particle retention. Longer life reduces purchase cost, downtimes due to change outs, and disposal costs and thereby reducing the overall filtration cost as compared to cartridge filters. MICROBAG filter’s unique, graded layering of media starting with a built in pre-filter inner layer and progressing to the tighter outer layer ensures the particles are systematically removed as fluid travels through multiple layers with each individual layer performing a special function.

Microfilt charged modified depth filter carbon modules are comprised of highly porous activated carbon combined with cellulose fibers. The unique formulation process creates filter media with exceptionally high void volume allowing the module to be efficient in decolorizing fluids and absorbing a wide array of unwanted contaminants from process streams. Microfilt CMDF carbon series modules eliminate many of the common process and safety issues associated with bulk activated carbon technology. Each grade of CMDF carbon media is formulated to optimize retention and flow properties to meet an application’s requirements. Manufacturing by means of an advanced, highly automated production process results in very consistent product quality and filtration performance. Microfilt CMDF carbon Module filter is available 12”and 16” diameter with customized area and as per customer requirement

MICROPOLY-MBD spun bond Depth filter Cartridges are made of 100% polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality. With true graded density construction these cartridges have the highest dirt holding capacity possible. Melt blowing (MB) is a process for producing fibrous webs. MICROPOLY-TBD filter cartridges are manufactured using a unique technology using thermally bonded component fibers resulting in a rigid complex filter matrix. The patented construction of this filter cartridge provides consistent filtration and eliminates pore size variability and media migration.

MICROFILT have a advanced MICROSS as CROSSFLOW filtration system which is also known as tangential flow filtration. Cross flow membrane filtration is pressure driven technology which is used for to separate/concentrate solids and molecules of colloidal size up to ions. In cross flow technology first the separation of suspended solid particle from inlet stream, For this mostly ceramic membrane is used. This is also called as MICROFILTRATION (MF). For further separation, fractionation and concentration of smaller molecules like protein, salt, sugar, colouring agent etc. Polymeric Spiral membrane is used.
