Micronfilter S.r.l. products

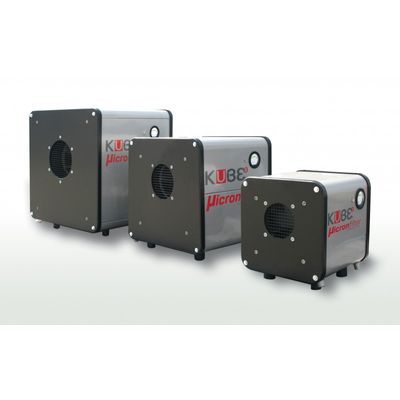

In the incredibly compact and carefully curved KUBE body, the Micronfilter designers have cleverly inserted 4 stages of filtration with progressive efficiency. The backwardly curved impeller blades, specifically designed to generate a powerful coalescent effect, but primarily conceived for avoiding, along all the mist collector life, any phenomenon of imbalance and subsequent vibration, silently conveys the air flow inside to the mist collector. In the next step, the air speed undergoes a marked slowdown and passes through a drop separator labyrinth pre-filter. The following steps consist in collection and removal of mists and residual micro-mists. The coalescing band is able to capture and re-aggregate the smallest oil mistdroplets and micro-mists, making them sensitive to the gravity action. The cartridge provides a large accumulation of the micro-pollutants, ensuring very long intervals between maintenances, thus less filter replacements.

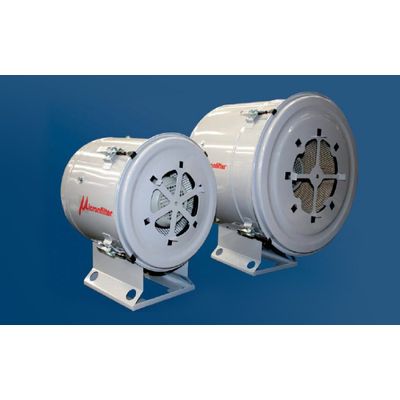

The MICROIL series of turbine style mist collectors have been designed for use on all machine tools using water based or whole oil based coolants. The range consists of two models fitted with different turbine blades and motors to provide a good overall choice (up to 7 different combinations) of evacuation capacity from 600 to 3000 m3/h (353 to 1765 scfm).

The new AIRJET filter equipped with horizontal cartridges is suitable for suction and filtration of welding fumes, fine and coarse dusts as well as of small quantities of chips, dusts and smokes produced by thermal cutting operations. It is a filter to be used mainly inside work premises. The filter unit consists of a pre-chamber, where the most part of the dusts is sorted out, falling then in a first primary collecting bin. The following labyrinth filter together with the high efficiency filter cartridges, complete the filtration process, collecting the remaining dusts.

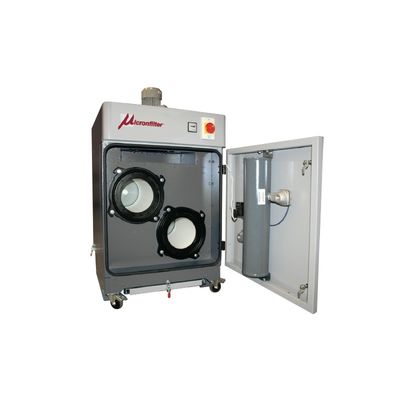

The new MINI-AIRJET filter equipped with horizontal cartridges is suitable for suction and filtration of welding fumes, fine and coarse dusts as well as of small quantities of chips, dusts and smokes produced by thermal cutting operations. It is a filter to be used mainly inside work premises. The filter unit consists of a pre-chamber, where the most part of the dusts is sorted out, falling then in a first primary collecting bin. The following labyrinth filter together with the high efficiency filter cartridges, complete the filtration process, collecting the remaining dusts. Thanks to the cleaning system made by compressed air, based on cycle timing the perfect cartridges efficiency is granted in any condition The horizontal position of the cartridges allows easy access and a quick maintenance of the filters.

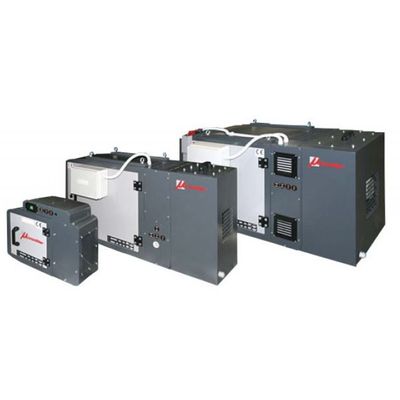

The electrostatic filters ELEKTRA series are equipped with strong industrial electrostatic cells and fans which provide power with silence. They are suitable for use on all types of machine tools using whole oil and generating NOT HEAVY SMOKES. The range is composed by four different models having a throughput from 400 and 1600 m3/h. All filters are equipped with a power circuit which is protected from short circuits and any discharges between electrodes. Every filter is provided with ON/OFF switch, power light, high tension light, obstruction cell warning light and security micro-switch. The product is specifically addressed to any application where light quantity of smokes are produced.
For heavy smokes applications please contact our Technical office in order to evaluate high performance electrostatic solutions.

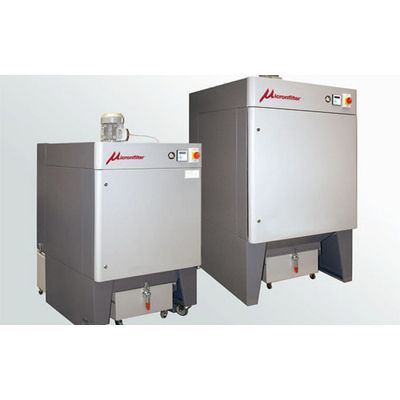

The SHARP dust collector was designed to be used for all dry grinding processes, tool sharpening processes and where there is the possibility to convey incandescent particles by the air flow, which might damage the filters.The special high-permeability polyester needle felt of the filtering pockets ensures longer life and better filtration effectiveness (up to 99%-F9 classification). SHARP/3 version provides higher filtering efficiency, up to 99.99% (H13 classification).

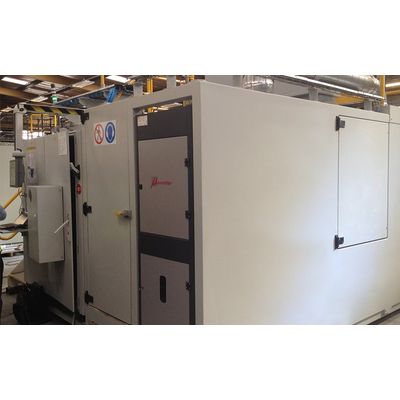

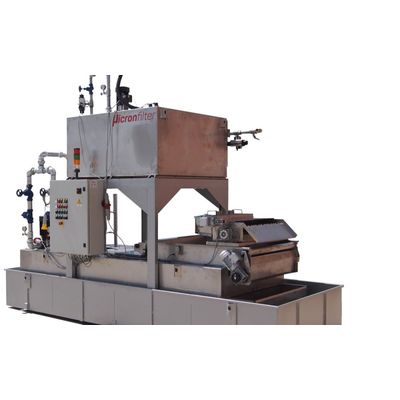

The new series of “EVOTECH” filtration cleaners for lubricants and refrigerants contains innovative principles of operation and exclusive contents that provide very high performance and simplified management without sacrificing any of the elements that ensure the reliability and versatility of common fabric cleaners. These cleaners are intended for use with all machines tool for metalworking and other industrial processes. The range is composed by 6 models having flow rate from 30 to 500 l/m.

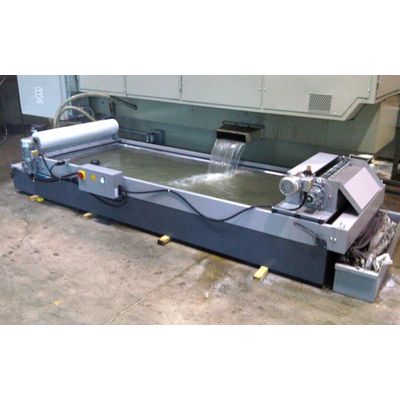

The EASYBAND series of indexing media filters offers the simplest and most versatile solution for the filtration of machine tool coolants. The EASYBAND coolant filter has been perfected thorough careful research and smart engineering techniques which has allows Micronfilter to offer a reliable indexing media filter. These coolant filters are designed for use on all metalworking machines, to filter emulsions and whole oils, and for flows from 50 to 500 lt/min (13.2 – 132 gpm). The level of filtration depending on the filter media used.
