Microtissues, Inc. products

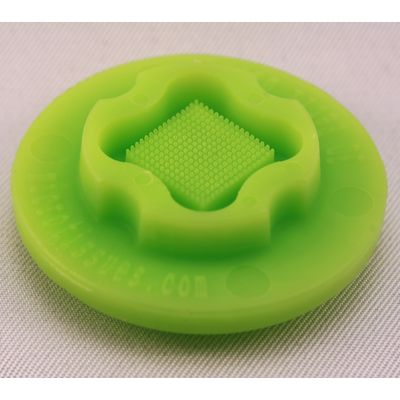

The 3D Petri Dish® cast from this precision micro-mold has 256 circular recesses (16 x 16 array) and is used to self-assemble 3D microtissues in the shape of a spheroid. The nominal dimensions of one of these recesses when formed in the 3D Petri Dish® are; diameter: 300μm and depth: 800μm. The single large cell seeding chamber above these 256 recesses holds a volume of 190μl. This 3D Petri Dish® fits into a standard 12 well tissue culture plate. (6 micro-molds per pack)

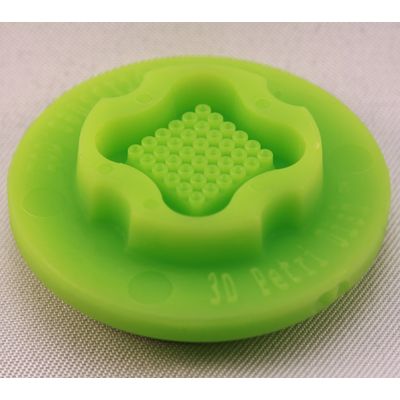

The 3D Petri Dish® cast from this precision micro-mold has 36 toroid shaped recesses (6 x 6 array) and is used to self-assemble 3D microtissues in the shape of a toroid. The nominal dimensions of one of these recesses when formed in the 3D Petri Dish® are; outer toroid diameter: 1400μm, diameter of central peg: 600μm, trough width: 400μm and depth: 750μm. The single large cell seeding chamber above these small recesses holds a volume of 190μl. This 3D Petri Dish® fits into a standard 12 well tissue culture plate. (6 micro-molds per pack)

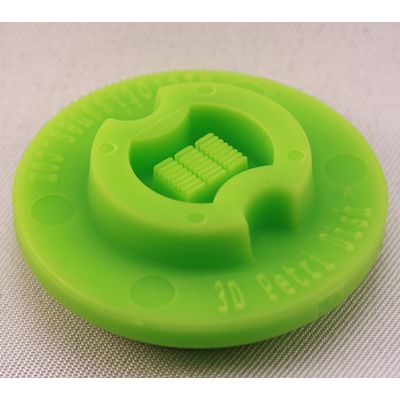

The 3D Petri Dish® cast from this precision micro-mold has 60 trough shaped recesses (4 x 15 array) and is used to self-assemble 3D microtissues in the shape of a rod. The nominal dimensions of one of these recesses when formed in the 3D Petri Dish® are; trough length: 2200μm, trough width: 400μm and trough depth: 750μm. The single large cell seeding chamber above these 60 recesses holds a volume of 190μl. This 3D Petri Dish® fits into a standard 12 well tissue culture plate. (6 micro-molds per pack)

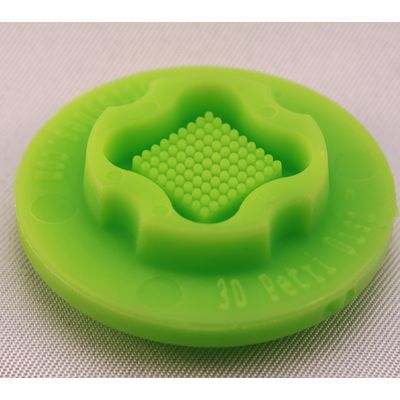

The 3D Petri Dish® cast from this micro-mold has 81 circular recesses (9 x 9 array) and is used to self-assemble 3D microtissues in the shape of a spheroid. The nominal dimensions of one of these recesses when formed in the 3D Petri Dish® are; diameter: 800μm and depth: 800μm. The single large cell seeding chamber above these 81 recesses holds a volume of 190μl. This 3D Petri Dish® fits into a standard 12 well tissue culture plate. (6 micro-molds per pack)

The 3D Petri Dish® cast from this precision micro-mold has 24 trough shaped recesses (3 x 8 array) and is used to self-assemble 3D microtissues in the shape of a rod. The nominal dimensions of one of these recesses when formed in the 3D Petri Dish® are; trough length: 2200μm, trough width: 400μm and trough depth: 800μm. The single large cell seeding chamber above these 24 recesses holds a volume of 200μL. This 3D Petri Dish® fits into a standard 24 well tissue culture plate. (6 micro-molds per pack)
