Mideco products

Burnley® Baffles reduce up to 80% of dust from hoppers, or 100% when paired with a dust collector. Using gravity and air movement, the baffles block dust while allowing materials like grain, cement, or ores to flow freely. The clouds of dust that escape during the materials handling process pose extreme health risks to anyone nearby. Exposure to such dust can lead to the development of silicosis, lung cancer, and chronic obstructive pulmonary disease. When applied to a hopper alone, Burnley® Baffles can eliminate up to 80% of dust… and if you apply an additional dust collector directly to a hopper, 100% of dust can be eliminated.

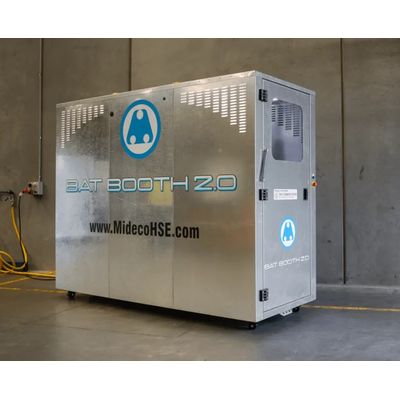

Mideco’s flagship dedusting solution, our Bat Booth®, has been keeping personnel healthy in high-dust industrial areas around the world since 2014. The Bat Booth®  was created to solve some of the industrial sector’s most pressing health concerns – respiratory illnesses caused by airborne dust. It has been proven that a dusty uniform leads to dangerous exposure levels of respirable dust. Respirable dust consists of particles with an aerodynamic diameter of 10 microns or less, which are capable of entering and depositing in the gas-exchange region of the lungs. Once clothes become contaminated, the person is more likely to be affected by respirable dust. Furthermore, the risk of dust exposure continues to remain until the dust source is cleaned or removed.

Dust accumulating in enclosures or site offices can be just as harmful as respirable dust on clothing and outdoors. Our Bat Vent® is a highly effective industrial dust collector, developed to keep the air indoors clean. Dust doesn’t stop at the worksite—it easily enters offices, booths, and control rooms, posing health risks and creating challenges for managers striving to keep personnel safe. Mideco has the solution. Dedicated to protecting workers in dust-heavy industries worldwide, we’ve introduced the Bat Vent®. This revolutionary system purifies and filters air before it enters on-site enclosures. It complements our proven dust solutions, including the Bat Booth® (personnel dedusting) and Burnley® Baffles (bulk handling dust suppression).

Mideco Economy filters have been designed to maximise the filter cloth area while minimising the space requirements.  They are available with pulse or shaker cleaning systems. The Versatile Dust Collection Solution for Every Space. Our economy filters take centre stage as being our best-selling filters… and with good reason. They have been designed to maximise the filter cloth area while minimising the space requirements. Our economy filters are available with pulse or shaker cleaning systems. Our economy filter range includes the essentials required for effective dust collection. The filter can be customised to suit your requirements with the addition of maintenance platforms, ladders, gas strut lids and insulation or cladding.

The mideclone is a high efficiency cyclone system that uses centrifugal force to separate particles from the airstream, often serving as a pre-cleaner in dust collection systems to protect baghouses and scrubbers from coarse particles. The Mideclones use a centrifugal action to separate particles from an airstream. Using advanced flow modelling, Mideclones are often part of a dust collection system upstream from baghouses. Typically, they act as pre-cleaners to remove extremely high dust loads including coarse particles that could damage fabric collector bags. Mideco offers 19 different sizes of Mideclones to suit various operational scales and project needs.

Mideco’s reverse air dust collector is ideal for high-temperature, high-moisture environments, providing effective hazardous dust management with low emissions, energy efficiency, and long-lasting filter preservation. Compact, Efficient, and Long-Lasting. Our reverse air dust collector excels in extremely arduous conditions. Applications that involve high temperatures and high moisture, such as dryers, are easily handled by this type of filter. Mideco’s reverse air filters return remarkable results in environments requiring hazardous dust management, where the dust load is extremely high and the emission is required to be very low. It’s also well suited to catch dust particles that are ultra-fine, hygroscopic or sticky. The key to the success of the reverse air filter is its robust cleaning system.

Our tubular pulse filters incorporate industry leading designs in the areas of Safety, versatility and flexibility. Safety, Versatility and Flexibility Combined: The filter’s safety features include ladders and access platforms that exceed Australian occupational health and safety standards, with all serviceable items accessible from a top platform free of trip hazards. The compressed air system also includes a self-bleeding lockout ball valve for added safety.

Mideco’s HEPA After Filters use ultra-high efficiency filtration technology to manage hazardous dust, achieving emission limits as low as 0.5 micrograms/m3. We developed our HEPA After Filters in response to a customer need for ultra-high efficiency filtration to manage air contaminated with lead dust, meeting stringent emission limits of 0.5 micrograms/m3, far beyond the capability of standard bag house technologies. By using coated bags in a Mideco reverse air filter followed by the after filter, we successfully met the requirements. Partnering with suppliers of advanced ultra-high-efficiency media, we provide solutions and offer both management systems and dust collection system parts for ongoing maintenance and replacement needs.

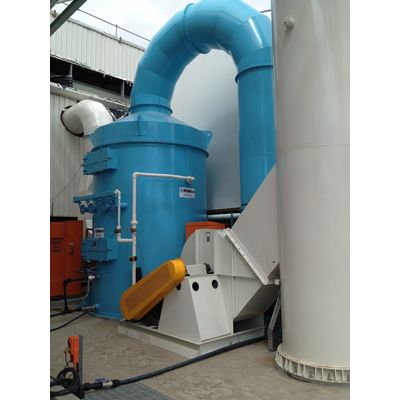

Mideco’s robust scrubbing solutions, including Venturi and Peabody Plate Scrubbers, provide highly effective dust collection and gas cleaning with minimal maintenance, energy consumption, and wear, while offering customized designs and control systems for various industrial applications.

In dusty industrial environments, the responsibility of employee safety falls on your shoulders. From mining and manufacturing to construction and warehousing, your workforce face daily exposure to airborne particles with the ability to seriously impact worker health. Mideco’s personal protection dust extractors are purpose-engineered to protect your people on the frontline. They offer highly effective solutions for controlling dust directly right at the source, as well as on the worker. Partner with our trusted industrial dust extraction solutions and give your staff the protection they deserve.
