Mifab, Inc. products

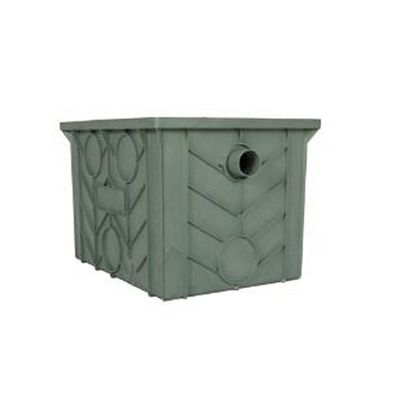

MIFAB® LIL-O Series HDPE injection molded oil. Unit shall include: sediment bucket (1/4″ diameter holes) with perforated baffle (3/8″ x 1 1/4″ slots) near inlet, deep seal trap covered by lid, sewer gas stopper, securing latches, stainless steel calibrated orifice plate, internal air relief by-pass, adjustable automatic draw-off assembly, double vent connection on each side, and HDPE injection molded, non skid, rectangular gasketed lid(s).

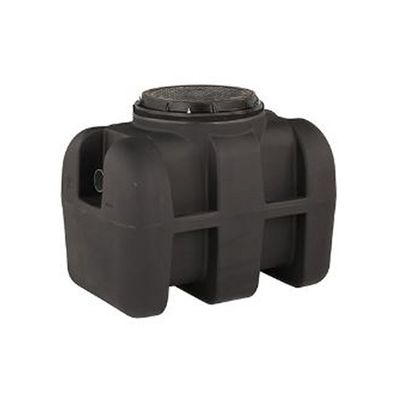

MIFAB® BIG-O Series HDPE rotational molded oil interceptor. Unit shall include: 3/8” uniform wall thickness, deep seal trap covered by lid, adjustable lid system, stainless steel calibrated orifice plate (internal flow control), internal air relief by-pass, adjustable oil draw-off assembly (1 1/2″) on each side, double vent connections (3″) on each side, sample port access and 4″ no hub inlet and outlet connections. Steel encased composite lid provides a water / gas tight seal and has a minimum of 20,000 lbs. load capacity. The lid is designed in accordance with the loading requirements of AASHTO H20.

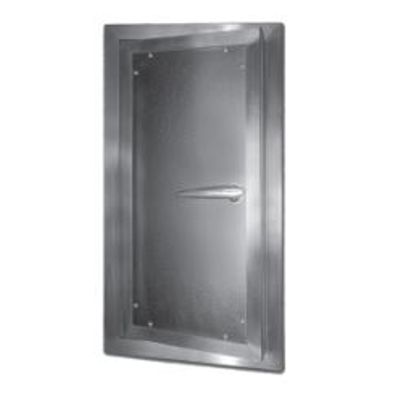

MIFAB WID exterior access doors are designed to provide convenient access to any exterior application, or anywhere that requires protection against air leakage and/ or water penetration. WID doors are also designed to serve the custom air handling equipment manufacturers, as well as mechanical contractors who field assemble built-up air handling systems. All WID doors are manufactured with extruded aluminum flanged frames and door panel frames. Door panels are satin coat steel with optional stainless steel and aluminum sheet inserts. Door panels are insulated and gasketed. WID doors can be manufactured in custom sizes from 12” x 12” to 96” x 96”. Available in 1″, 1 1/2″, 2″ Insulation Thickness.nection on each side, and steel powder epoxy coated, non skid rectangular lid(s).

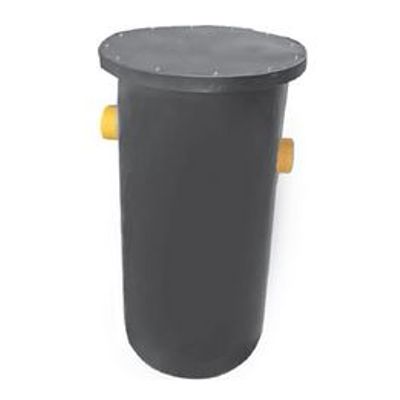

MIFAB Series MI-NEUT solid construction polyethylene body with inlet and outlet, optional vent connections, acidresistant epoxy coated bolted down gasketed lid, stainless steel hardware. The tank is filled with neutralization medium, lump limestone 1″ to 3″ diameter size, water is then added to the tank to help dilution.

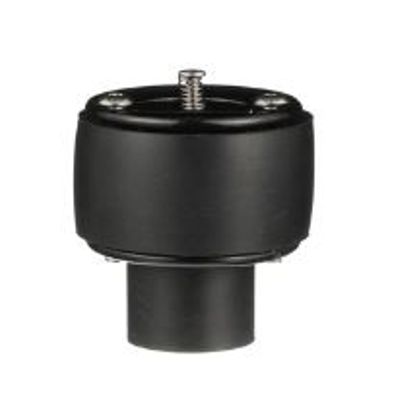

MIFAB Series BV1000 lacquered cast iron backwater valve with no hub inlet and outlet, gasketed bolted cover, and automatic pvc flapper type backwater valve.

MIFAB Series BV1250 backwater valve with neoprene rubber seat.

The BEECO Series Barracuda 20 Double Check Valve Assembly (DC) is designed to prevent non-health hazard pollutants from entering the potable water supply system caused by backpressure and/or backsiphonage conditions. USC approved.

The AP Series is designed to provide support for all electrical and HVAC equipment. Grooved recessed tray prevents movement and dampens vibration. Allows water passage; prevents growth of moss and mold. Lightweight. Consult roofing manufacturer or engineer for roof loading.

MIFAB C1230 Series lacquered cast iron cleanout ferrule with ½” (13) thick gasketed combined ductile iron cover and plug.

MIFAB C1300-(select model number): C1300-R for round scoriated, C1300-S for square scoriated access cover with frame (specify material) anchor lugs and vandal resistant stainless steel allen key screws.
