Mojj Engineering Systems Ltd. products

MOJJ is a true blue industry leader constantly seeking innovation and pioneering new developments. We were among the first to have expertise and capability to deliver systems compatible with the complete gamut of raw materials

At MOJJ we are customer driven to the core. Our distillation plants are customized for quality, consumption and operational ease. We have state of the art specially designed equipments enabling efficient separation of impurities with reduced scaling and down time. MOJJ, for the first time introduced the concept integrated evaporator for substantial reduction of spent wash volume.

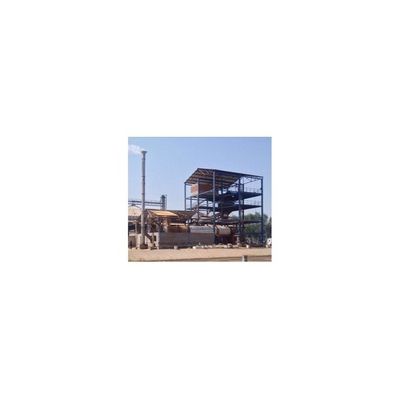

DDGS is obtained as a bi-product from a grain distillery. Slops from distillation column are concentrated in multiple effect evaporators and the concentrated slope is added on the decanted residue obtained from the fermentation process, which are mainly proteins and the fibrous material of the grain. This mixture of the concentrated slope and the residue is dried in indirectly heated rotary dryer or steam tube dryer to obtain DDGS which is used as cattle feed and the distillery truly becomes zero discharge.

Manufacturing of malt whisky is by blending of malt spirits.

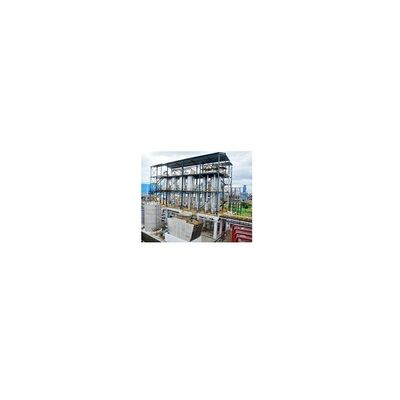

With our experience in drying and evaporation and also of molasses fermentation MOJJ is in a unique position to offer customised solutions for waste water to ensure zero discharge. Combining this experience we have given large evaporators for Vinasse/cane molasses spent wash Concentration both in raw as well as Bio Methanated condition. The concentrated Vinasse is processed to get CMS ( Condensed Molasses Soluble) or can be burnt in special design boilers to get net positive energy, or to reduce consumption press mud and required area in case of bio composting.We ensure and guarantee least down time due to scaling in Industry with lowest power consumption. When combined with our integtrated evaporator we also guarantee least stem consumption.

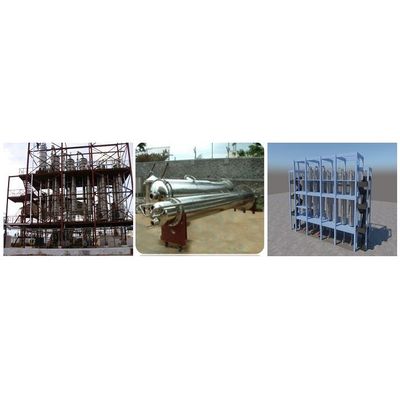

They are long tube evaporators most suitable for low temperature applications and for high thermal efficiency. They can be used for non-fouling and relatively non-viscous products.

They are short tube evaporators with very high velocity in tubes. They are the conventional type preferred mostly for fouling and viscous products.

Scrapped surface Evaporator is used for evaporating the heat sensitive material under high vacuum using thin/scraped film technology. Thin film yields high heat transfer coefficients, making the process highly effective.

They are thermally efficient and are for low temperature and foaming application. They are flexible enough to convert to forced circulation types.

Spray dryers are devices used in spray drying. It takes a liquid stream and separates the solute or suspension as a solid and the solvent into a vapor. The solid is usually collected in a drum or cyclone. The liquid input stream is sprayed through a nozzle into a hot vapor stream and porised. A nozzle is usually used to make the droplets as small as possible, maximising heat transfer and the rate of water vaporisation. Droplet sizes can range from 20 μm to 180 μm depending on the nozzle. Spray dryers can dry a product very quickly compared to other methods of drying.
