Molex products

Fiberguide’s Fused Silica Capillary Tubing is used for micro-fluidics applications and in gas chromatography (GC) separation columns. These capillaries are coated with polyimide for mechanical stability and versatile uses.

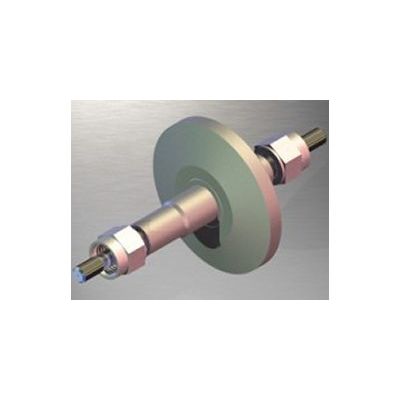

Fiberguide’s Vacuum Feedthroughs are designed to allow optical fibers to penetrate a pressure vessel without compromising the integrity of the vacuum. These can be configured as stand-alone feedthroughs, as shown in the spec sheet below, or integrated into cable assemblies as needed. These are ideal for laser power delivery or optical sensing applications that must be conducted in a pressure or vacuum chamber.

Fiberguide’s SFS and AFS fibers are primarily used in photonics applications where individual or bundled large core (>50µm) multimode fibers are needed for the transmission of optical energy. These fibers can be coated with a variety of polymers or metalized, for extreme temperature performance.

Fiberguide’s Aluminum Coated Fibers are designed for a wide temperature range (-269°C to +400°C) and superior strength (> 100kpsi). This allows for long life at extended stress levels in applications that require tight bends. Also, the strong chemical bond between the silica cladding and the aluminum enables direct termination without pistoning. This bond also makes Aluminum coating the ideal choice to preserve deep UV performance in Fiberguide’s Solarguide product family.

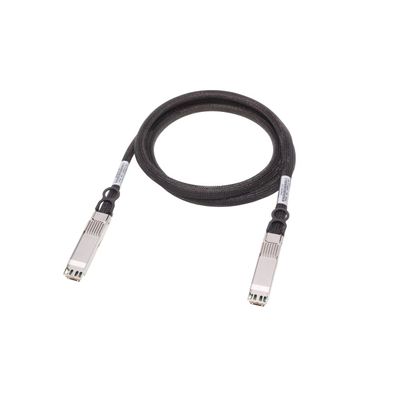

Molex Active Optical Cables (AOCs) achieve high data rates over long reaches, using a fraction of the power of other brands while providing streamlined installation for high-performance computing and storage applications.

Fiberguide’s Universal Clad, or UniClad, optical fibers are Silica Core/Silica Clad/Polymer Coated fibers designed for high power transmission and other applications where a large cladding relative to the core is beneficial. These fibers feature a fixed 500μm cladding diameter, with a 100μm – 400μm core size, making laser alignment and splicing easier. The larger 600μm and 800μm core sizes use proportionally larger cladding.

Cabled External Antennas offer best-in-class RF performance in ruggedized thermoplastic enclosures that are resistant to moisture, extreme thermal conditions, shock and vibration for convenient mounting in a range of locations.
