Monitor Systems Scotland Limited (MSS) products

Monitor Systems computerised Anchor Windlass Monitoring System (AWS M2000) facilitates and adds real value to operator control. Using a uniquely simplified menu structure, the system provides increased accuracy and totally reliable measurement of anchor winch parameters with both central control room and local windlass monitoring displays. Speed and distance are measured through proximity sensors whilst tension is determined by sub-sea rated load cells or pins. Using stainless steel wall mounted cabinets, data is gathered using PLC DAQ, Profibus DP or fibre optic high-speed networks and shown in graphical and tabular formats.

Monitor System`s Ballast Control and Tank Gauging System enables marine vessel operators to use reliable informative data to critically and safely manage the ballast and trim of a vessel according to operational needs, deck loading and sea conditions.

The Bilge Monitoring System offers a simple and effective remote monitoring of bilge water. HMI’s located in manned areas clearly display the status of all bilge tanks as well as generating audible alarms to warn of an influx of water.

BOP control is one of the most crucial safety systems on a platform, and one-half of all BOP system failures are control system related, therefore the system must reliably operate regardless of age, external conditions, or failures. Monitor System`s BOP Control Systems provides clients with a highly reliable interface to well control, comprising customized solutions to meet the client`s area and regional requirements.

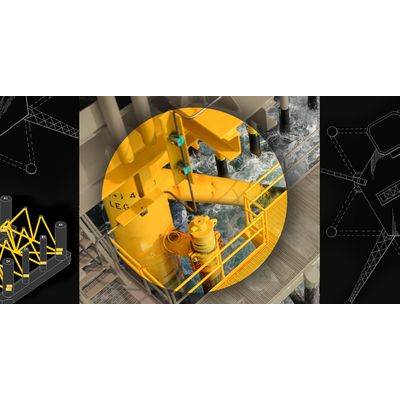

Our Brace and Leg Leak, Void Detection System System offers a continuous automatic monitoring of a vessel’s watertight integrity. High level redundancy along with SIL approved sensors combine to ensure a highly effective and reliable system. Leak Detection Sensors can be easily retro fitted into Braces, Bilge Pots or Void Spaces to monitor for complete vessel watertight integrity. Leak detection sensors provide both continuous fault monitoring and a remote test facility to produce an extremely effective detection system, eliminating the need to enter remote inaccessible void spaces for maintenance and testing. Monitor Systems Brace and Void Leak Detection System can be easily integrated with our Bilge Control System to offer increased functionality.

The oil and gas industry demands reliable measurement of content levels in bulk storage tanks containing powder compounds such as Barites and Bentonite. To avoid the physical complications and cost of fitting load cells to bulk powder tanks, Monitor Systems Bulk Tank Monitoring System utilises instead, leading edge, guided wave radar sensors. The unit is a lot simpler to fit being mounted directly on the top of the tank and needs calibrating only once when the unit is commissioned. Combining the company’s engineering solutions expertise and experience with high quality, non-proprietary components, Monitor System’s Bulk Tank Monitoring System is complimented by a full range of instrumentation from local readout panels to HMI Control Stations.

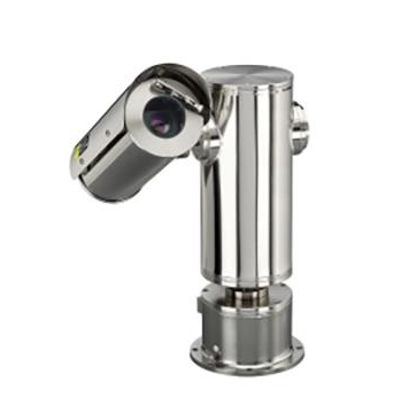

Monitor Systems Engineering offers reliable and effective CCTV solutions designed to keep your drilling or marine vessel operations running smoothly and safely. Our customizable camera systems are suitable for both safe and hazardous areas, and can be tailored to meet your specific needs.

Elevate your drilling rig`s performance and efficiency with Monitor Systems, an industry leader in cutting-edge drilling Data Acquisition Systems (DAQs). We specialize in delivering top-of-the-line, customized DAQ solutions specifically designed for drilling operations, revolutionizing the way you collect, analyze, and utilize critical drilling data.

The monitoring of Fire Damper Status is essential for operators in preventing fires and gases from spreading and is particularly important in the protection of safe refuge areas during emergencies. The status of fire dampers can prove critical in the planning of emergency escape routes. Our Fire Damper Monitoring System provides accurate, continuous real time monitoring of the status of all critical fire dampers. Key information is clearly displayed on our HMIs located in Control Rooms and Safe Refuge areas. Fire Damper information can be recorded for analysis or training purposes.

Monitor System’s Machinery Alarm Monitoring System provides a visual and audible management tool covering the operating status of motors, pumps, fans, generators and other electro-mechanical utilities.
