Monitor Technologies, LLC products

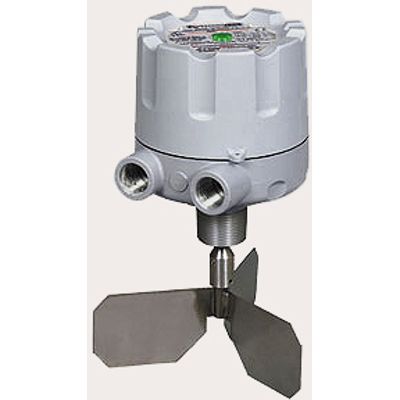

Monitor`s KA / KAX rotary paddle bin level indicators consist of the most reliable, rugged and economical point level control sensors available for detection of dry bulk materials. These easy to install switches are proven performers in a wide variety of bulk materials. Monitor`s paddle switches can be used to eliminate bin overflow, maintain a predetermined material level, indicate plugging of conveyors and pneumatic lines or provide any of a number of level control functions. Unlike many other available paddle units for bins and silos, Monitor`s paddle level indicators (sensores de nivel) incorporate a feature that automatically shuts off the motor of the unit when the paddle is in a stalled position, which both extends the life of the motor and minimizes maintenance.

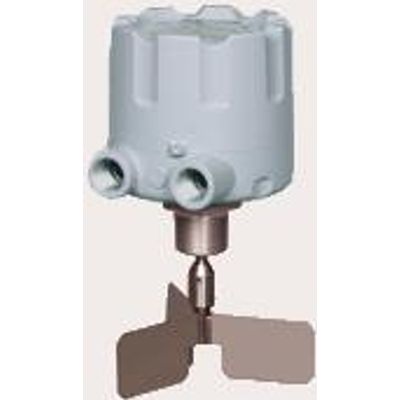

The SafePoint self-validating fail-safe bin level indicator from Monitor is the state-of-the-art in rotary paddle technology. Going beyond traditional fail-safe sensor technology that only protects against power failure, the SafePoint bin monitor is the most reliable, rotary paddle point level control sensor available. Ideal as a high level indicator for silo / bin overfil protection. The SafePoint bin level switch provides the ultimate in performance wherever critical continuous operation must be ensured. Detection of both material presence and its own operational status is performed on a continuous basis.

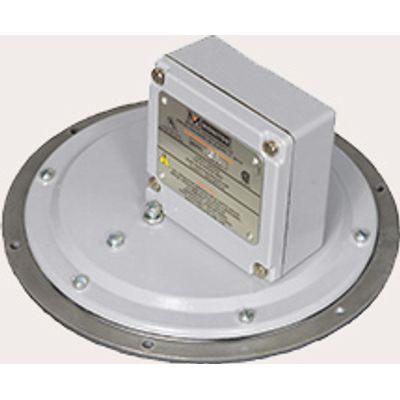

Monitor’s line of BINATROL® diaphragm bin level switches consists of economical, reliable, and durable point level controls for point level detection of dry bulk materials like grain, pellets, cement, regrind and much more. The units can be used to eliminate bin overflow, maintain a predetermined material level, indicate plugging of chutes or conveyors or provide any of a number of level control functions. The flush mount, non-intrusive BINATROL units are ideally used when vessel size or internal clearance is limited, or where protrusion into a vessel is not acceptable. All installation and servicing, including diaphragm replacement and sensitivity adjustment, can be done from outside the vessel.

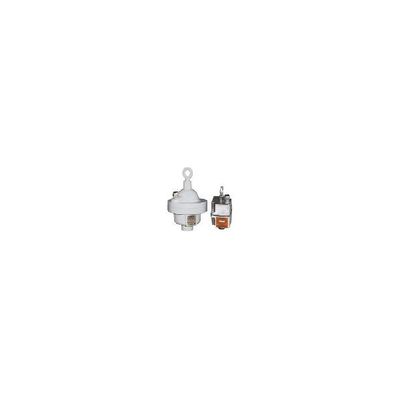

Monitor’s line of tilt bin level switches are economical, trouble-free point level controls available for detection of dry bulk materials. The units can be used as high level indicators to eliminate bin overflow or to control levels in open piles. In addition, the tilt switches are useful in determining over or under-load on conveyor belts. The simple yet efficient internal construction (one moving part) provides indication when unit is tilted at a 17° angle throughout the complete 360° of axial arc. Each tilt switch includes a threaded bore for attaching extension actuators which can increase sensing repeatability and protect the tilt switch from direct contact with coarse material. Monitor offers two different models of tilt switches, each suited to satisfy different application requirements.

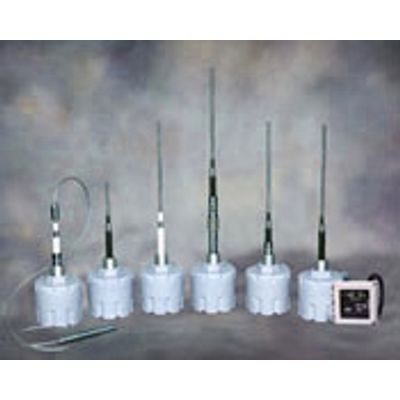

TrueCap RF capacitance sensors offer effective point level indication with excellent reliability and advanced features. Monitor’s complete line, featuring models MK-2 and MK-2e, provides you with the most practical solution for your application...from a feature-rich version to a cost-conscious version. Monitor’s RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. Monitor’s two-year warranty stands behind every TrueCap sensor.

TrueCap RF capacitance level sensors offer cost-effective point level detection / monitoring with reliability you can count on. Monitor’s complete line, which features models MK-2 and MK-2e, provides you with the most affordable solution for your application. Monitor’s RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for the detection of powder and bulk solids applications, as well as some liquid and slurry applications. Monitor’s two-year warranty stands behind every TrueCap sensor.

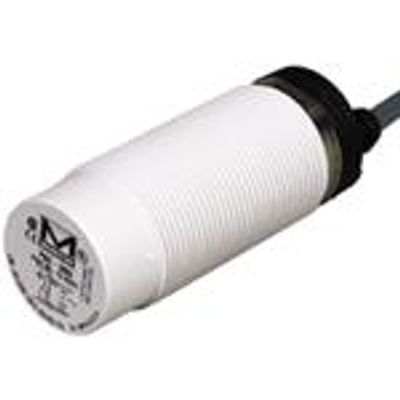

The models PAC-30U and PDC-30 proximity bin level switches are solid state point level devices used to detect the absence or presence of bulk solids. The compact configuration makes this product ideal for tight spaces or low cost level detection. As material comes in contact with, or in close proximity to, the PAC-30U or PDC-30, an internal solid state switch is activated. The PAC-30U is AC operated (20-265 VAC) and is universal in that it is switch selectable for either normally open or normally closed operation. The PDC-30 is DC operated (10-40 VDC) and is available in either PNP or NPN configuration, each of which can be wired in either a normally open or normally closed operation mode.

The Model PZP uses the vibrating probe principle to eliminate level indicator issues associated with temperature, humidity and material changes, while providing state-of-the-art electronic reliability and accuracy that requires no calibration. This vibratory sensor is extremely sensitive and works on a wide range of material densities...from very light to heavy. The diamond-shape single vibrating probe design means less material build-up on probe and is tip sensitive to be unaffected by material build-up near mounting base.

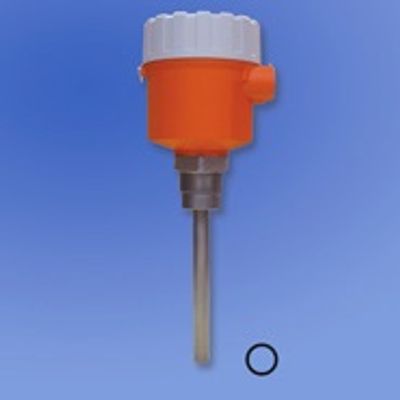

The Model VibraRod™ is a vibration type level indicator that provides reliable, durable and versatile point level sensing in a variety of applications within the powder and bulk solids markets. The vibratory sensor has a single probe design that is self-cleaning. The Vibra Rod does not require calibration which makes for easy set-up.

The Silo Patrol® SE Inventory Management System is an industry-leading cable-based smart level sensor system that is designed to handle some of the harshest and most dynamic conditions. The Silo Patrol SE system incorporates state-of-the-art sensors, a wide choice of operator interfaces, auxiliary outputs and displays, as well as unique remote/vendor managed inventory solutions. The Silo Patrol SE delivers a truly robust level sensor design, providing reliable and high value solutions for a wide variety of applications and industries worldwide. The Silo Patrol SE incorporates significant advances in this field-proven approach to reliably monitoring the level of material in bins, silos and tanks up to 150ft (45.7m) in height.
