The Hypro-Feed ® Reciprocating Feeder is an ideal solution for primary and secondary feed applications.  Its compact rigid design is robust and suitable for impact loading, direct dump with dump trucks and wheeled loaders and for handling large heavy lump or fine, wet and sticky material, the reciprocating feeder is designed and installed to push material at a regulated rate from a feed hopper, stockpile or storage bin. The Hypro-Feed ® Reciprocating Feeder is equipped with a heavy-duty top plate with replaceable wear liners, mounted and supported on Cat rollers and the feeder table is operated either hydraulically or mechanically. The main support frame structure is a fully welded design and fitted with tapered roller support brackets for height adjustment and roller replacement.

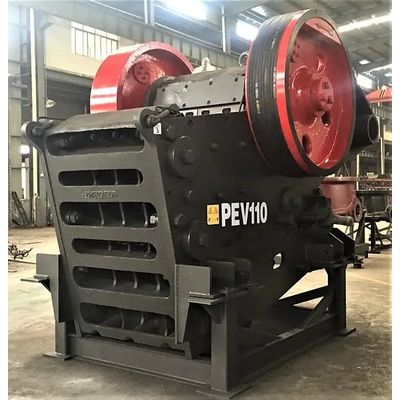

The PEV series Jaw Crusher is available in several feed opening sizes to suit various primary crushing applications of hard abrasive rock or recycling material. It is suitable for large and small stationary installations or track and mobile units. The PEV series single toggle Jaw Crusher is a bolted design equipped with two heavy duty non-welded side frames connected to high quality machined cast steel frames and secured with bolts. A cast steel jaw stock fitted with a heavy-duty eccentric shaft supported by four robust bearings provides suitable cavity dimensions for high performance and design durability against shock loading. The PEV Jaw Crusher is widely used in many industries including mining, quarrying, construction, cement, demolition, recycling and the chemical industry. An ideal choice for all primary crushing applications with a selection of jaw plate profiles for maximum performance.

The Hypro-Crush STJ Primary Jaw Crusher series is a engineered product manufactured to international standard, designed to provide maximum production and performance, thus yielding high outputs with reliability and economical running costs. The Hypro-Crush series single toggle jaw crusher has a heavy robust,  fabricated, stress-relieved frame with cast or fabricated heavily ribbed steel jaw stock. Both are accurately machined to accept the high tensile steel eccentric shaft. They are fitted with heavy-duty, double row, self-aligning international standard bearings, thus ensuring perfect alignment with all components when completely assembled to ensure longer life. Cast manganese steel jaws, down thrust toggle plate and grooves are all machined to ensure accurate seating. The jaws are reversible and interchangeable to obtain maximum wear and are easily replaced. Swing jaw settings are achieved by hydraulic adjustment.
