Morrison Pump Company products

The Axial Flow Pump generates it`s head exclusively through axial forces, and can be defined as pump impeller design with specific speeds greater than 10,000 (US Units). The axial flow impeller, or lift coefficients and impeller total head. Standard Morrison Axial Flow Pump models have complete hydraulic coverage between approximately 4,000 GPM and 250,000 GPM capacities, with total heads to 30 feet (13.6 PSI).

The Mixed Flow, or Combined Flow Pump generates it`s head through a combination of both axial and radial forces, and can be defined as pump impeller design with specific speeds between 4,200 and 9,000 (US Units). The Mixed Flow impeller inlet diameter differs from the disharge diameter with varying vane angles and radial velocities. Standard Morrison Mixed Flow Pump models have hydraulic coverage between approx. 2,000 GPM and 250,000 GPM capacities, with total heads between 25 and 55 feet of water.

Floating Pump Stations are completely self-contained and free-floating pump stations engineered for continuous duty applications. These stations include a high-efficiency Morrison Pump, power transmission system, engine or motor driver, and structural/floatation assembly. Floating pumps may be permanent or emergency stations that eliminate the need for major civil works.

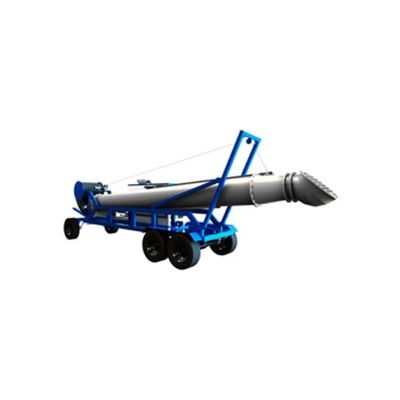

Morrison Pump Company`s design and development, resources, engineering expertise, and manufacturing capabilities allow us to provide engineered custon solutions and specialty pumps for our client`s specific application and needs. Morrison`s specialty pumps may be for custom pump configurations, unique mobile transport requirements or complex hydraulic requirements. Morrison Pump engineers are always available to assist clients in special pumping applications. Morrison Pump Company provides custom pump solutions.
