Moteck Electric Corp. products

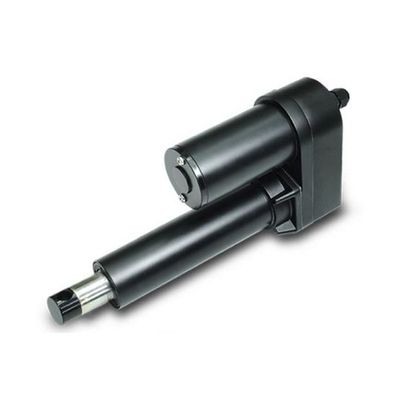

ID10G has similar appearance and waterproof performance as ID10. It adopts ACME lead screw design to achieve a maximum push-pull force of 9,000N and high speed, which is a good value actuator. For applications in various industrial fields, agriculture and construction machinery, ID10G is a very competitive and good choice when high speed and high load capability are required.

MK31 is a quiet and powerful actuator up to 6000N thrust, designed for use in medical bed application.

DKL2 is a 2-part leg with 2 stage telescope tube mainly used for electric height adjustable desks. With fully integrated of motor and spindle, it allows the producers design their own style of outer tube easily and flexibly.

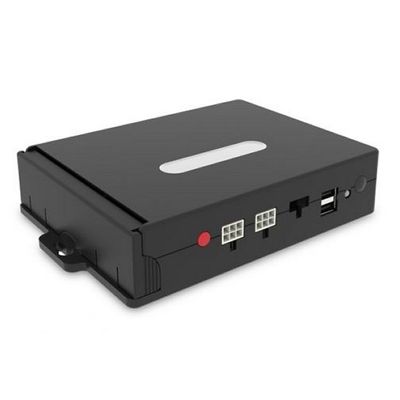

CF15 is an RF wireless control box designed for adjustable beds. In addition to the compact size (with SMPS included), CF15 also provides 2 USB charging ports for your mobile device, and provides the option of under-bed light (built-in or external), and supports the "zero gravity" preset position function. In the event of a power failure, the emergency lowering function can be achieved through 9 volt batteries and the FLAT button.

Input voltage: 24V DC. Output voltage: 24V DC. Overload protection current: 2.4A max. Power supply provided by the customer. Number of actuators: 1 output port for actuator. Multi-controller connection is possible, and the master controller is used for joint control of all slave controllers in the system. The slave controller can still be operated on its local connected actuators. Duty cycle: 10%, max. 2 min. continuous operation in 20 min. Color: White. Fire alarm signal to open the window or shutters mandatorily. Rain to close the window or shutters. Support wireless remote control, please contact Moteck sales.

DKM1 is a DC gear motor with hollow shaft to drive an hex rod (not included). In addition to the compact size and low noise level, it also provides positioning feedbacks using dual Hall effect sensors to support advanced control functions.
