Motorrens S.L products

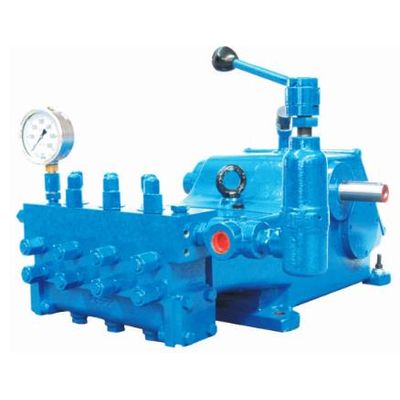

Input shaft left (I) or right viewable from the head. If it`s required, auxiliary P.T.O. shaft may be supplied on the opposite side.  345 Body type, drive shaft with own crankshaft. Max. speed 825 r.p.m. 345R Body lateral gear box, reduction 1,76. Stroke: 45 mm. Ceramic plungers. High pressure A Head, made of spheroidal cast iron or stainless steel. Internal parts in contact with the liquid made of resistant corrosion materials. Several pressure regulators valves and outlet nipples.

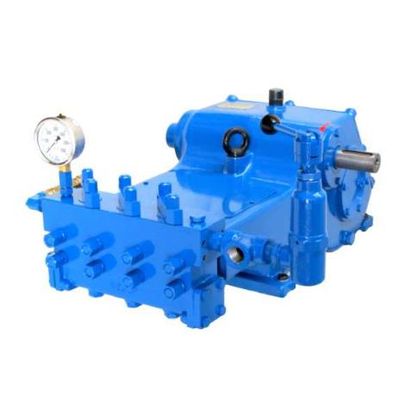

Input shaft left (I) or right viewable from the head. Auxiliary P.T.O. shaft on opposite side. Internal gear box with reduction 3 in 3100 body type. Reduction 3,63 in 3100R type. Stroke: 75 mm. Ceramic plungers. High pressure A head made of spheroidal cast iron or stainless  steel. Low pressure to high volume B head made of spheroidal cast iron or stainless steel. Internal parts in contact with the liquid made of resistant corrosion materials. Several pressure regulator valves and outlet nipples.

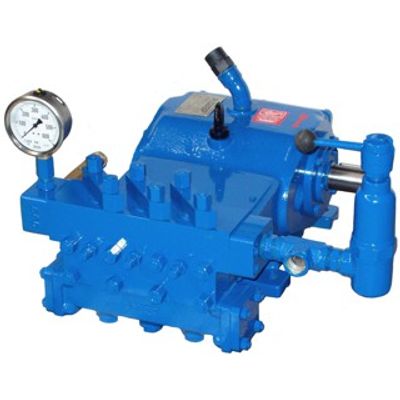

Input shaft left (I) or right viewable from the head. Auxiliary P.T.O. shaft on opposite side. Internal gear box with reduction 2,963 in 3150 body type. Red. 3,652 in 3150R type. Internal oil pressure lubrication. 3150 E / 3150R E Body type. [View photo]. Stroke: 95 mm. Ceramic plungers. High pressure A head made of spheroidal cast iron or stainless steel. Low pressure to high volume B head made of spheroidal cast iron or stainless steel. Internal parts in contact with the liquid made of resistant corrosion materials. Several pressure regulator valves and outlet nipples.

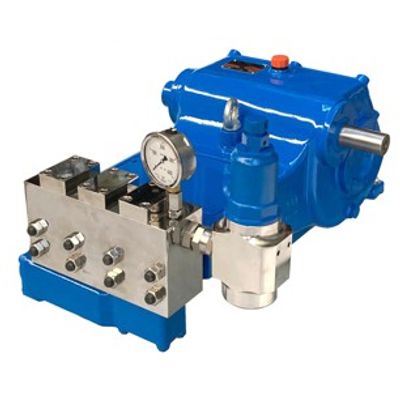

3 plungers 150 HP (110 Kw). Water recycling pump. Input shaft left (I) or right viewable from the head. Auxiliary P.T.O. shaft on opposite side. Internal gear box with reduction 2,963 in 3150 body type. Red. 3,652 in 3150R type. Option: Internal oil pressure lubrication. 3150 E / 3150R E Body type. Stroke: 95 mm. Ceramic plungers. S Valves to use with dirty water. SL Valves to use with clean water. Accessories: Pressure regulator valve, safety valve, manometer and outlet nipples.

Trailer equipment with pneumatic wheels, spear, brake and weighbridge. Stainless steel water tank and automatic filling level. Gas-oil tank and hydraulic hose reels.

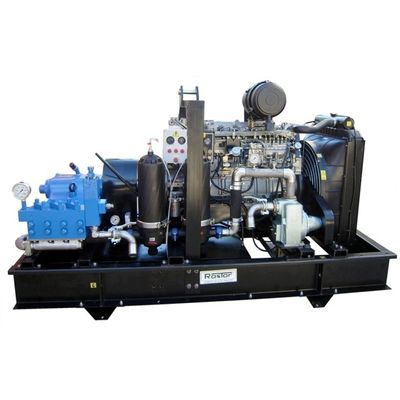

With centrifugal pump, filter and gas-oil tank 250 liters. Seabed excavation. Pump type: 3150R AI - A02. Pressure: 320 bar. Flow: 178 l/min.
