Mottech Water Solutions Ltd. products

Connect and monitor an extended range of sensor types with the new Mottech multi-functional electronic Smart Card The Mottech Smart Card provides a number of options in one card: an A to D converter, Pulse Splitter, Pulse Divider, and soon an interface for sensors that use communication protocols. The Smart Card easily integrates into Motorola IRRInet controllers, or can be supplied as an autonomous unit.

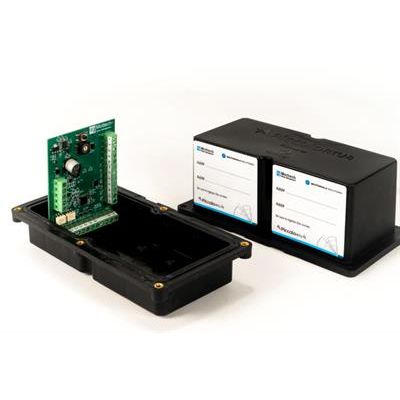

The Piccolo XR is a small sized wireless Remote Terminal Unit that operates as an integral part of the IRRInet system. The Piccolo XR operates up to 4 latched outputs and may receive up to 7 digital inputs (model dependent).

The PIU (Piccolo  Interface Unit) is connected to the IRRInet Field Unit, and communicates with Piccolo-XR units via its internal two-way low-power radio.
The Piccolo XR and PIU are equipped with internal 10/100mWatt radios (configurable).
In order to extend radio coverage the Piccolo XR is capable of operating in a networking mode using numerous hops.

The Piccolo XR Plus is a small-sized wireless remote terminal unit that operates as an integral part of the IRRInet system. Extending the capabilities of the basic unit, the Piccolo XR extended unit operates up to 8 latched outputs and may receive up to 12 digital inputs.
The Piccolo XR Interface Unit (PIU) is connected to the IRRInet Field Unit, and communicates with the Piccolo XR Plus unit via its internal two-way low-power radio. Both the Piccolo XR Plus and the PIU are equipped with configurable internal 10/100mW radios to extend radio coverage, and can function as part of the communication network, using store and forward protocol. This Piccolo XR series was designed to work in nearly all environments. With a self contained, secured enclosure structure, these units can be installed and ready to work with
your IRRInet system in minutes.
