5 products found
MRG Labs products
Grease Analysis Mini-Lab
Grease Thief - Ferrous Debris Measurement Device for Grease Thief

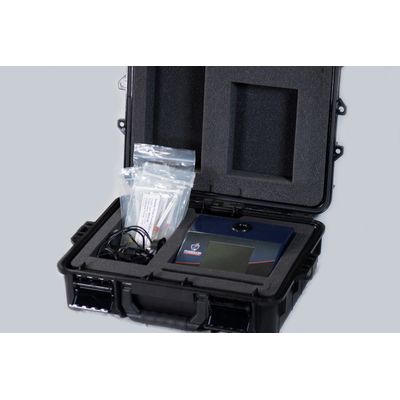

The Grease Thief FerroQ is an analytical instrument designed for determining the level of ferrous debris in grease samples collected via Grease Thief samplers according to ASTM D7718 standards. Upon fully inserting the sample container into its designated opening, the unit initiates a rapid measurement process, delivering results in under 10 seconds. These results can be accessed either through a data cable or wirelessly via Bluetooth. It operates using either a 12VDC power source or battery and is calibrated with multiple Grease Thief standards to ensure precision across the measurement spectrum. The device is equipped to automatically adjust between high and low-range sensing circuits, achieving accuracy for measurements ranging from minimal levels to a maximum of 200,000 ppm. Additionally, it can integrate with the Grease Thief Colorimeter to form a GT Mini-Lab solution, offering quantifiable data for evaluating both grease condition and machinery wear.Grease Thief T-Handles
Grease Thief - Adjustable T-Handle for Grease Sampler
The Adjustable T-Handle is an essential tool designed to be used in conjunction with the Grease Thief sampler for obtaining accurate grease samples from components such as bearings and gearboxes. It operates by entering through a drain plug or access port, where it can bypass surface grease and obtain a representative core sample from the set depth. The tool is designed for repeatable precision and features a maximum core set depth of 5.25 inches and a minimum access port diameter of 0.625 inches. After sampling, the Grease Thief is detached, capped, and stored for laboratory analysis. The T-handle is reusable after cleaning, making it a practical choice for continual sampling needs. This tool is particularly valuable for monitoring and assessing the condition of grease-lubricated machinery.
Grease Thief - Double Extension T-Handle for Grease Sampler Kits
The Double Extension T-handle is crafted for use with Grease Sampler Kits to extract precise samples from Motor Operated Valves (MOVs) and similar grease-lubricated components. This stainless steel tool is designed to set and maintain a sampling depth, featuring threading to attach the Grease Thief fitting. It activates the stinger probe upon surface contact, allowing for accurate measurement by bypassing grease that might not accurately represent the internal condition of the gearboxes. The device facilitates sampling directly from the point of mechanical operation, improving sampling precision. The T-handle's reuse capability, due to its stainless steel construction that permits easy cleaning, ensures durability and economy. After collecting a sample, the sampler is detached and stored securely for laboratory analysis. This tool enhances the efficiency and accuracy of maintenance protocols.Sampling Kits
Grease Thief - Helicopter Grease Sampling Kit for H-47 Chinook
The Grease Thief Helicopter Sampling Kit (MGT-01-008H) is engineered for precision sampling of greased components in helicopter drivetrains, particularly catering to Boeing's H-47 Chinook fleet. This specialized kit includes eight sampling sleeves, each equipped with a Grease Thief Type 1 sampler, spatula, and a two-part GT Injector, allowing effective sample collection and transfer with minimal loss. Designed to address sampling of swashplates, hanger bearings, and drive splines, the kit ensures high fidelity in representing grease conditions without extensive disassembly, optimizing maintenance schedules through detailed tribological studies. With an emphasis on improved shipment quality control, the kit includes robust labeling and containment features, ensuring accurate identity and purity of the collected samples. The kit's enhancement facilitates reduced maintenance time, streamlining lubrication tasks crucial for extending the lifespan and performance of helicopter components.
