Mudslayer Manufacturing products

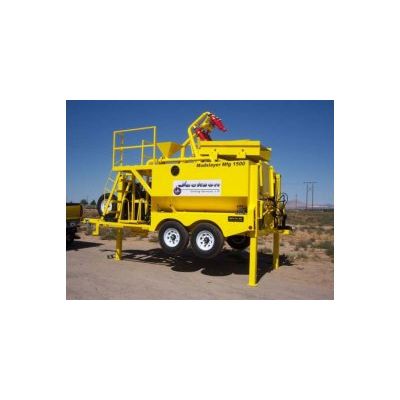

Power Plant: Caterpillar 127 hsp, tier 4i diesel engine with fan for oil cooling. Hydraulics: 4 section gear pump and gear motors Three - 36` built-in outriggers. Desanding / Mixing: Mission 4x5 centrifugal pump, mission 2 x 3 x 8.5 pump, seven - 5` de-sanding cones. Frame: 2 axle integrated trailer with 10,000 lb., dual axle electric brakes, pintle hitch hookup. Weight: 13,5001b. wet weight. Dimensions: 90` wide x 228` long x 132` high. Liquid Capacity: Self-cleaning mud tank - 1,500 gallons Diesel - 70 gallons Hydraulic oil - 70 gallons. Lift Pump: 12` Mudslayer brand 300 - 500 g.p.m. Dual mounted lift pump booms. Shaker System: Dual vibrating shaft, 3` x 5` dual screens with grease piston tensioning.

Units to be setup for lefthand side operation. 1 - 173 hsp. Caterpillar - Tier 4i, diesel motor. 3 - 5` desanding cones. 3` x 5` dual screen, linear motion shaker deck. 3 - hydraulic leveling outriggers on trailer mounted 750 gallon self-cleaning tank.

350 Self-cleaning tab. Caterpillar 24.9 hsp, tier 4i - AQMD exempt. Two 5` desanding cones. 2`x3`x8.5` desanding pump with built-in mudhopper. Radio control tracked undercarriage. 4,500 wet weight. 10` lift pump.

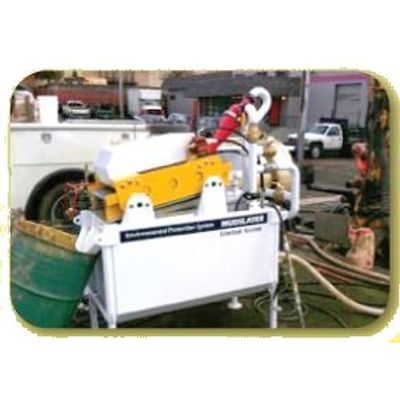

This unit is specifically designed to eliminate shoveling and trip hazards behind the rig. 150 shovel loads per drum. 4 drums per average geo-technical hole. Roughly 2,000 lbs of solids. This eliminates the need for solids to be handled by a worker.
