Munters Corp products

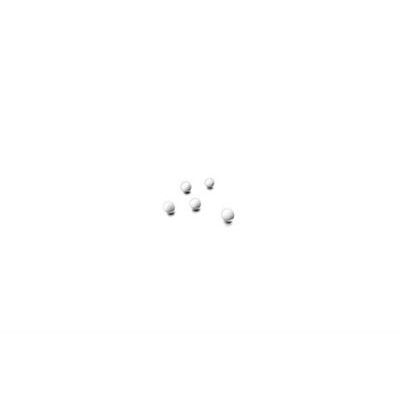

Alumina Supports have a wide range of surface areas and pore volumes. The supports can be treated for excellent stability at high temperatures to avoid agglomeration/sintering of surface metals. They are appropriate for intermediate pH.

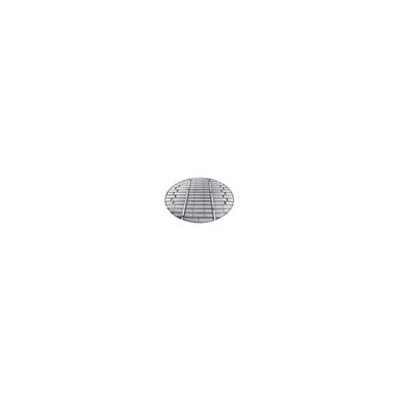

Bed limiters are safety devices that are available for both random as well structured packing to avoid the expansion of the packed bed, as well as to maintain the bed top surface level.

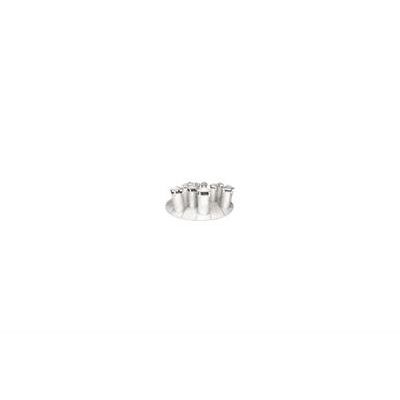

This deck type liquid collector is versatile and can be used in all towers. Liquid volume and residence time are controlled by utilizing tall risers on the tray deck. Sumps can be added on one side, both sides, or across the center to facilitate liquid with drawal. This collector can provide 25 to 40% open area. Mid-span support beams are required in large columns > 2000mm (78 inches) ID. The deck and optional sump(s) rest on a ledge/tray support ring and the plate can be seal-welded. Gas risers can be made in sections/pieces to allow installation through a manhole where they can be subsequently welded to the seal welded deck.

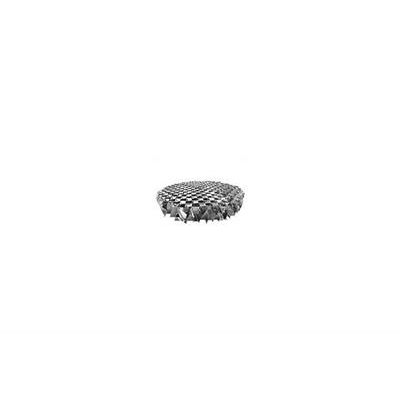

Grid Packing are recommended for applications with fouling, coking and solid contents. The Grid Packing has robust mechanical structure, fabricated in modules for ease of installation and cleaning.

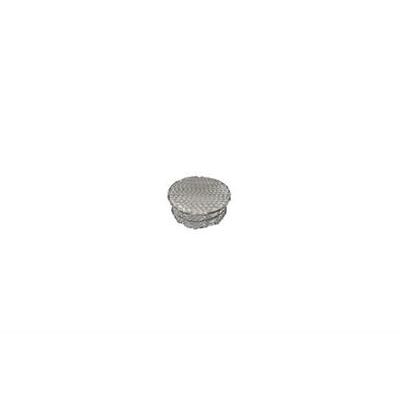

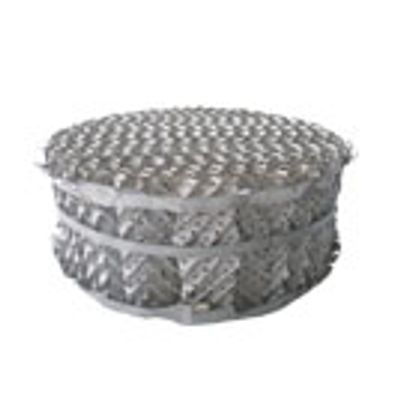

ME-II Structured Packing, is an efficient and economical structured packing that is widely used in the industry today. ME-II Structured Packing has all the desirable characteristics like predictable throughput, low pressure drop, good efficiency and flexibility; which plays vital role in separations. ME-II Structured packing is available in an array of surface areas (corrugation crimp sizes) & we can also provide intermediate sizes to suit a particular case.

Vantage Series structured packing sheets have innumerable fine perforations (pierced but not punched holes) throughout the surface. This is a distinct advantage over other structured packings that have punched holes resulting in loss of valuable surface area that in turn reduces the potential efficiency of the product. It is available in same sizes as regular ME-II structured packing.

Liquid-Liquid Extraction is a Separation process in which a feed stream containing dissolved components is contacted with an immiscible solvent which forms a second liquid phase and selectively extracts the dissolved components from the feed. It is primarily used for services where distillation is not practical, like close boiling point or heat sensitive materials.
