Murray Equipment, Inc. (MEI) products

Dispensing System: ; 2” x 2” self-priming centrifugal cast iron pump with a 5 hp, 3 phase, 3600 TEFC electric motor (Optional single phase). Optional: NTEP certified, weights and measures approved cast iron 682 TCS meter with a 5-wheel re-settable head with totalizer and ¾ stainless steel air eliminator. Optional: Pump and meter are mounted on a tubular steel stand. This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

Dispensing System:  2” x 2” stainless steel self-priming centrifugal pump with a 5 hp, 3 phase, 3600 TEFC electric motor (Optional single phase). Optional: NTEP certified, weights and measures approved stainless steel 682 TCS meter with a 5-wheel re-settable head with totalizer and ¾ stainless steel air eliminator. Optional: Pump and meter are mounted on a tubular steel stand. This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

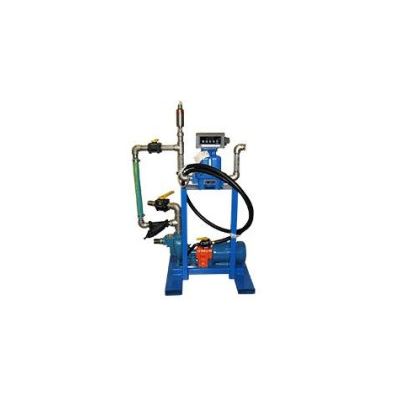

Only have a single chemical you need to dispense and/or inject into a dry blend? Like our multi-product stands, these versatile systems are engineered to provide the accuracy, precision, and speed you need. 2” x 2” self-priming centrifugal cast iron pump. 5 hp, single phase, 3600 TEFC electric motor (3 phase is optional). NTEP certified, weights and measures approved 682 TCS AF cast iron meter. 5-wheel resettable head with totalizer. Tubular steel stand. This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

Stainless Steel Pump & Meter Stand; 2” x 2” self-priming centrifugal stainless steel pump. 5 hp, single phase, 3600 TEFC electric motor (3 phase is optional). NTEP certified, weights and measures approved 682 TCS 316 stainless steel meter
5-wheel resettable head with totalizer. EPDM elastomers are optional. Tubular steel stand. This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

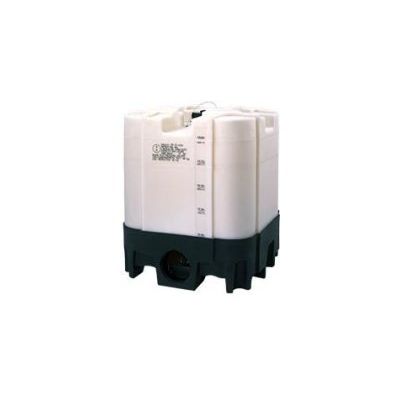

120, 220, or 330 gallon polyethylene stackable tank. U.N. Certification for packing group 2 & 3 and EPA compliant for refillable containers. GEM cap for universal pump mounting and two way base for easy truck access. 12 volt polypropylene diaphragm pump. 20’ power cable with battery clips. 1” x 12ft solvent. Nozzle valve. Digital meter.

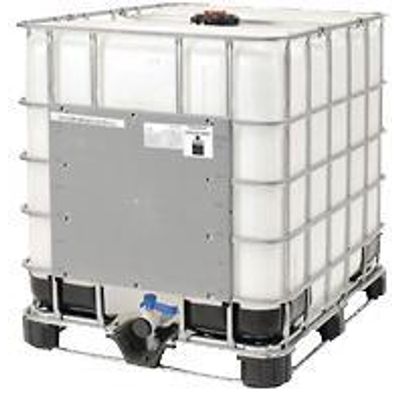

275 gallon HDLPE polyethylene tank with rugged tubular steel cage. U.N. Certification for packaging group 2 & 3 and EPA compiant for refillable containers. Sloped, 4-way entry polyethylene pallet. Bottom discharge through polypropylene ball valve. 6” fill opening with pressure/vacuum vent. 12 volt polypropylene EPDM diaphragm pump with 1” inlet and outlet ports. Handles both lower and higher viscosity liquids at 8-10 GPM. Pump is mounted horizontally within a tubular steel frame. 1” x 8ft precoupled solvent suction hose. 1” x 12ft solvent delivery hose. Digital meter.
