Mustang Vacuum Systems Inc products

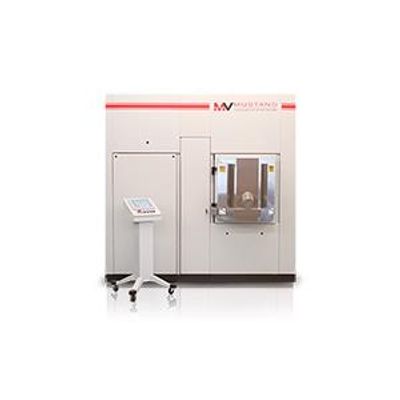

Small Batch Fast Cycle sputter systems designed to maximize production. Industry leading 3.5 minute cycle produces in rates that can synchronize with injection molding machines to optimize your throughput potential. Rotating single or multi-planetary fixture designs provide uniform coating of a wide range of 3D substrate materials and coatings. The Colt platform can be configured with a range of deposition sources.

Medium Batch Fast Cycle systems designed for continuous flow manufacturing of larger substrates. Ideal for functional decorative coatings such automotive trim, wheels, plumbing fixtures and door handles,. Rotating single or multi-planetary fixture designs provide uniform coating. The Colt platform can be configured for almost any deposition methodology making it the ideal coating solution for almost any industry.

Vertical batch coating system optimized for thermal resistance evaporation. Designed for coating low temperature plastics in a batch manufacturing environment Ideal for batch aluminum deposition for lighting reflectors, cosmetics and paint metal paint decorative finishes. Rotating multi-planetary fixture designs provide uniform coating for large batch size complex 3D substrates.

Horizontal batch coating system optimized for thermal resistance evaporation. Designed for coating low temperature plastics in a batch manufacturing environment Ideal for batch aluminum deposition for lighting reflectors, cosmetics and paint metal paint decorative finishes. Rotating multi-planetary fixture designs provide uniform coating for large batch size complex 3D substrates.

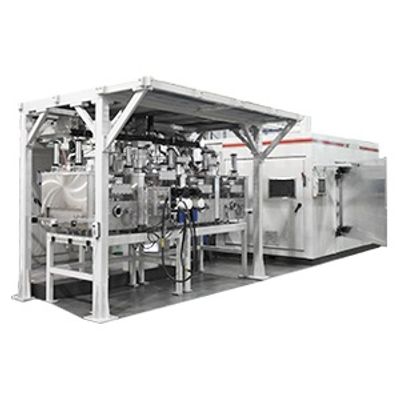

Continuous in line small batch fast cycle coating systems for three dimensional parts was designed to simplify part handling and ease of automation in continuous manufacturing processes. Horizon 3D platform provides a number of deposition methods and part orientations with carrier size configurable and optimized based on each customer product size, shape and annual volume to ensure maximum productivity.

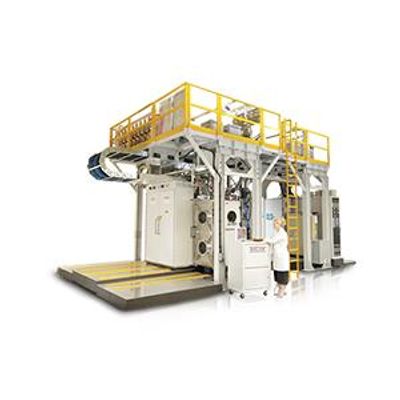

Orion series roll to roll vacuum deposition platform accommodates a range of substrates and source configuration ideal for Pilot or 24/7 production . Vacuum isolated wind and unwind compartments allow the deposition chamber to remain under vacuum during roll changes reducing idle time. Active web steering and precision temperature controlled drum enable high precision films for the most difficult processes including mult layer films.

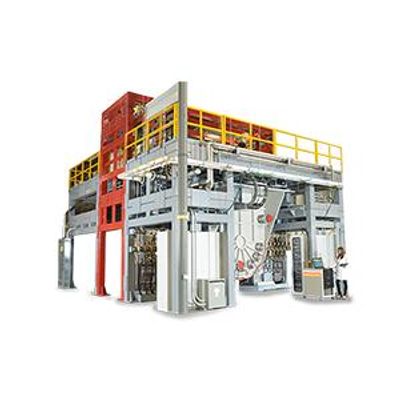

Orion 1000 series roll to roll vacuum deposition platform is designed for volume manufacturing of flexible substrate from 500mm to 1800mm in size. Vacuum isolated wind and unwind compartments allow the deposition chamber to remain under vacuum during roll changes reducing idle time. Active web steering and precision temperature controlled drum enable high precision films for the most difficult processes including mult layer films.

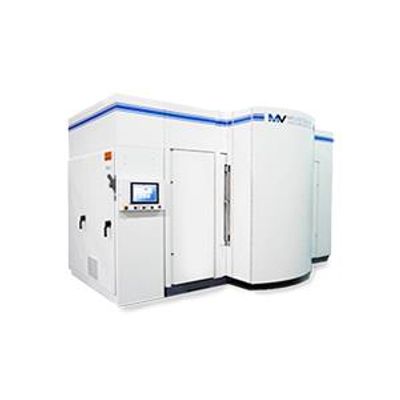

Tribo 500 series was specifically developed for the fast paced multiple coating job or in-house coating center where speed of process change over is key to higher utilizations. With up to 6 source positions high value small batch complex multi layer or combinatorial process are simplified. The Tribo series is flexible and highly configurable and upgradeable to cover the full range of standard tribological al coatings.

Tribo 960 series is a large format production tool designed specifically for decorative and functional tribological c coatings on large 3D parts such as door hardware, plumbing fixtures and firearms . Up to 6 source positions enable very high deposition rates reducing cycle times and increasing annual system capacity. Tribo series is flexible and highly configurable and upgradeable to cover the full range of standard tribological al coatings.
