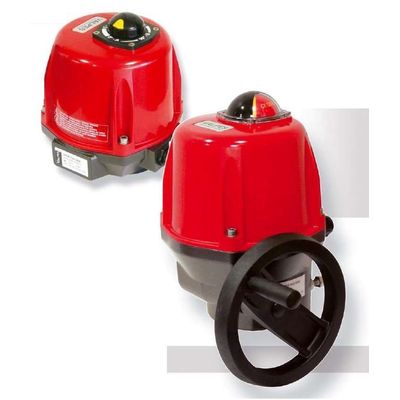

These electric actuators have been designed to perform the control of a valve with 90° rotation. Please consult us for any different application. We cannot be held responsible if the mentioned actuators are used in contradiction to this advice.

These electric actuators have been designed to perform the control of a valve with 90° rotation. Please consult us for any different application. We cannot be held responsible if the mentioned actuators are used in contradiction to this advice.

385 Pneumatically operated valve with plastic actuator normally closed (NC) 587 Pneumatically operated valve with plastic actuator normally open (NO) or double acting (DA) This compact design and light weight valve has a smooth contour finish on the plastic cover to  eli- minate accumulation of dirt and is corrosion resi- stant. The actuator is designed as a maintenance free diaphragm actuator. Various accessories are available for adjustments, control and regulation which can be assembled in the factory or on the job site afterwards.

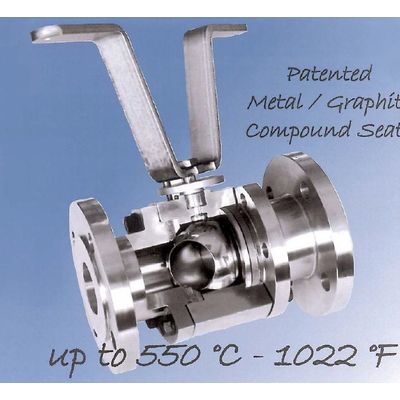

HTB ball valve Is a valve for high temperature. The primary innovation of this valve resides in the original seat design. It is not the usual metal seat but an original semi-soft soat.

General Specifications: BS fcN b93 - IBS 5155) - MSS SP67 - API 609. Diameters: DN40-DN300. Connection with Flanges UNI EN 1092: PN6 - PN10 - PN16 DWO - DN300. Connection with Flanges ANSI! 50: UN40 - DN30O. Maximum Working Pressure: PN16 DMO - DN300 Hot fluids) PN16 DN40-DN200(forgas) PN10 DN40- DN300lforgasl. Temperature Limits With Sealing seats In: EPDM -20°C / +110°C for fluids; EPDM-HT -20°C / +I30°C for fluids NBR-20°C/+90°C for fluids NBR -20°C/ +60°C for gas. Face To Face Dimensions In Conformity With: BS EN 558- IS05752 - MSSSP67 - API609 - DIN32Q2/3-K1. Top Flange: drilling IS05211. Operation Device: lever DN40 - DN200. gearDN250-DN300. Tested for vacuum at 900mbar. Shiny epoxy. N B: for material compatibility please check the table with corrosion resistance at the end of the catalogue.

Plastic diaphragm actuator with stainless steel distance piece. Control air connection 90* to flow direction. Flexible diaphragm suspension. Encapsulated diaphragm. CDSA sealing concept, see page 30.

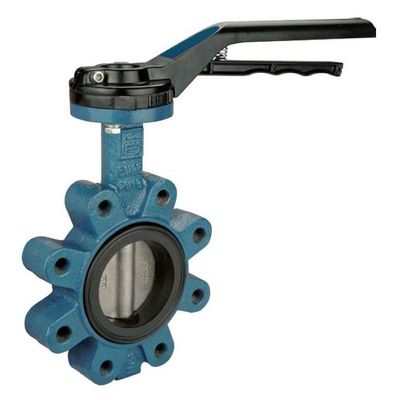

General Specifications: BS EN 593 - IBS 5155] - MSS SP67 - API 609. According to UNI TR 11354. Connection with Flanges UNI EN 1092: PN10-PN16 DN40-DN150 PN10 DN200 - UN600. Maximum Working Pressure: PN16 DN40 - DN150 PN10 DN200- DN600. Temperature Limits with Sealing Seats In: EPDM -20°C/+110°C forftuids EPDM-HT -20°C / + 130°C tor fluids NBR -20°C/+90°C lor fluids NBR -20°C/+60oCtorgas. Face To Face Dimensions In Conformity With: BSfcNbh8- IS05752- MSSSP67 - API609 - DIN3202/3-K1. Top Flange: drilling IS052I I. Operation Device: lever DN40 - DN200. gearDN25O-DN60O. Tested for vacuum at 900mbar. Shiny epoxy. NB: for material compatibility please check the table with corrosion resistance at the end of the catalogue.

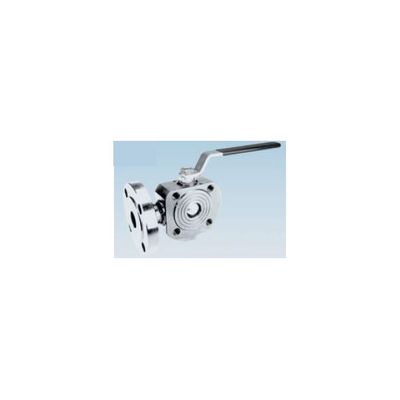

Construction: AISI316L from bar and ASTMA 105 from bar. Standards: BS EN ISO 17292:2004. Diameters: DNT5- DN100. Pressures: PN16/40 DN15 to - DN50 - DN80; PN16 for DN65 - DN100. Temperature Limits: -20°C/*180°C 316L PTFE 10oC/^160°CA105 (PTFr -20oC/-180°CLF2|PTFET. Connections with flanges: UNI-EN 1092and DIN2501 BL1. Flange Drilling: metric. Stem: Anti law out with anti-static device. Antistatic Device: starting from DN25 lupon request DN15-DN20). Stem: triple patented stem-packing with labyrinth effect and automa adjustment by Belleville washer:. Connection: II for connection to actuators. Operation Device: lever. Available colours: black, yellow.

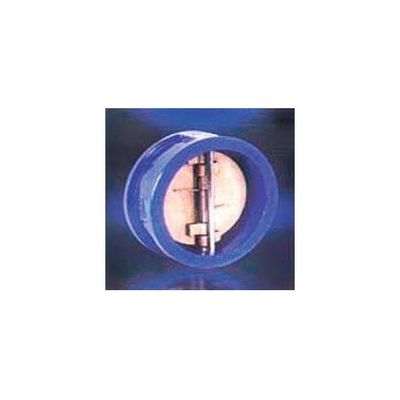

Easy structures and short dimensions (acc. to DIN EN 558-1, line 16 or API 594) are the remarkable features of MVA dual plate check valves. They are to be directly mounted between DIN flanges (PN 10, PN 16 or ANSI 150). MVA dual plate check valves require a low open- ing pressure. The resulting opening power di- rects the stems against the spring and the valve’s weight power, so that the media is released. If the initial pressure is higher than the entrance pressure, the valve closes and is sealed by the O-ring to protect it from the media. Dual plate check valves do not require maintenance.

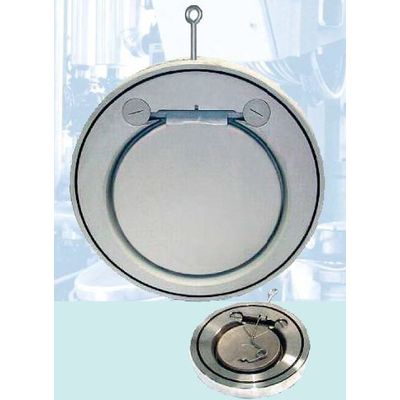

Easy structures and short dimensions are the remarkable features of MVA swing check valves. They are to be directly mounted be-tween DIN flanges (PN 6, PN 10). The swing check valves are automatically held in a central position by the flange connection screws (pos. 6). An O-ring (pos.5) seals the equipment and protects it from external effects. Therefore, we recommend to use union liners with clean seal-ing surfaces. MVA swing check valves require a low opening pressure. The resulting opening power directs the valve against the spring (op-tional, pos. 3) and the valves weight power (pos. 2), so that the media is released.
