Mwtechnologies, LDA products

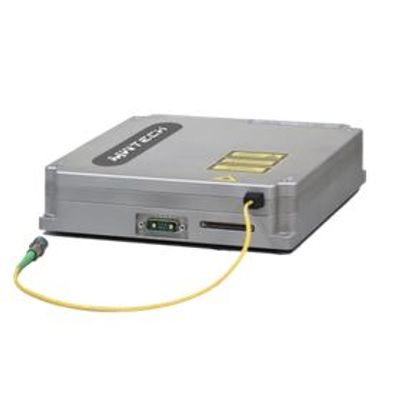

This Pulsed Fiber Laser generates single frequency nanosecond pulses at 1064nm. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulsegeneration, triggering, gating and ASE suppression techniques. The laser incorporates real-time stabilization, control electronics and firmware that continuously monitor and optimize laser operation.

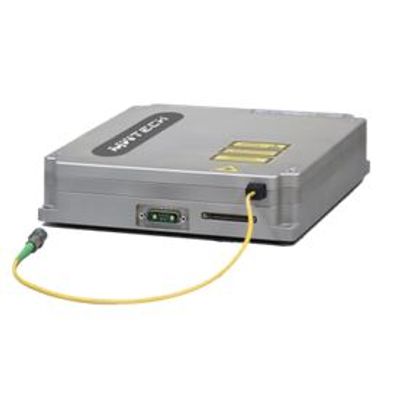

This Pulsed Fiber Laser generates high energy nanosecond pulses at 1550 nm. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulsegeneration, triggering, gating and ASE suppression technologies. The laser incorporates real-time stabilization, monitoring and control electronics and firmware that continuously monitor and optimize laser operation.

This Pulsed Fiber Laser generates high energy nanosecond pulses at 1550 nm. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulsegeneration, triggering, gating and ASE suppression technologies. The laser incorporates real-time stabilization, monitoring and control electronics and firmware that continuously monitor and optimize laser operation.

This Pulsed Fiber Laser generates single frequency short nanosecond pulses at 1550 nm. It is based on aMOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulse generation, triggering, gating and ASE suppression techniques. The laser incorporates real-time stabilization, control electronics and firmware that continuously monitor and optimize laser operation.

This Pulsed Fiber Laser generates single frequency nanosecond pulses at 1064nm. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulse generation, triggering, gating and ASE suppression techniques. The laser incorporates real-time stabilization, control electronics and firmware that continuously monitor and optimize laser operation.

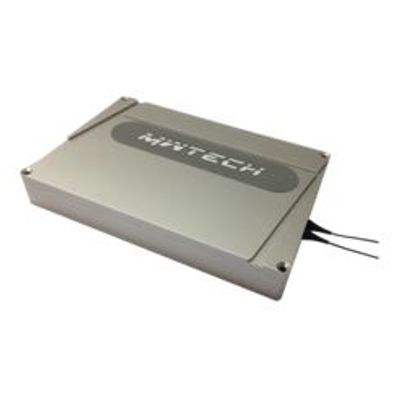

This Ytterbium-doped fiber amplifier is of single stage configuration. The unit has internal input and output isolators. This OEM product includes drive and temperature control electronics.

The Erbium–Doped Fiber Amplifier (EDFA) is a general–purpose optical amplifier for the C-band. This single pump optical amplifier features over +17dBm of saturated optical output power, together with a high small–signal gain and low noise figure. This amplifier has internal input and output isolators and includes drive an control electronics. Upon request, it allows for external Enable/Disable and external control of the pump laser diode current.

Narrowband ASE Optical Fiber Sources at 1µm, C&L wavelength bands. This Narrowband ASE Source delivers a high spectral density output. Models with center wavelengths in the 1 μm (such as 1064 nm) or 1.5 μm - 1.6 μm spectral regions are available. The design of the ASE Narrowband Source allows the emission spectral width to be tailored at the factory from a minimum FWHM value of 0.1 nm to a maximum FWHM value in excess of 20 nm (effectively becoming a broadband source for these larger spectral widths), while maintaining a spectral power density in the order of 1 mW/nm. In situations where a larger spectral power density is required, MWTechnologies can supply custom amplified versions.

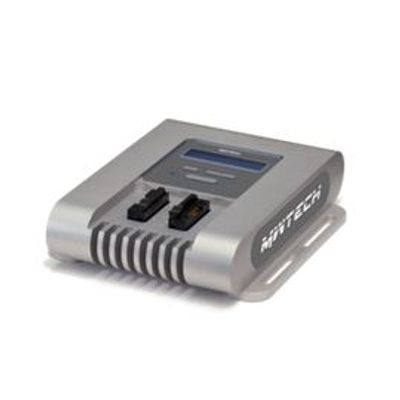

Compact all-in-one unit for driving/controlling Laser Diodes, SLEDs and SOAs. This  compact  Laser  Diode  Driver  (cLDD)  is  a  compact  all-in-one  unit  designed  for  convenience  of  use,  and combines a user interchangeable mount for a laser diode, SLED, SOA or similar device, a current driver and a TEC controller, all in a self-contained enclosure. This product includes a USB port and a software control application with a graphical user interface (GUI) for real-time device monitoring, control and data logging. The cLDD is used with either a 14-pin butterfly mount (provided with Type I, Type II and custom pin out routing boards) and/or a DIL mount. The mounts are user-interchangeable and are sold separately from the base unit.
